Description

Price

1

FORK-FRONT

44001-1272

$1,070.74

1

UNAVAILABLE IN PRICE BOOK

44001-1255

Unavailable

2

TUBE,RH,FORK OUTER

44006-1064

$226.37

3

TUBE,LH,FORK OUTER

44005-1064

$244.85

4

GASKET,FORK DRAIN PLUG

44045-002

$5.18

5

SCREW PAN HEAD 4X8

220B0408

$0.67

6

DUST SHIELD,FORK OUTR

92093-1035

$14.45

7

CASE,DUST SHIELD

32099-1013

Unavailable

8

OIL SEAL,FORK OUT TUB

92049-1042

Unavailable

9

RING-SNAP,FORK

92033-1047

$6.46

10

TUBE-FORK INNER

44013-1053

$355.20

11

CYLINDER-FORK

44022-1052

$104.30

12

RING-O,FORK TOP CAP

92055-1050

$6.27

13

"0" RING,AIR VALVE

92055-1018

Unavailable

14

STEM,STEERING

44037-1065

$458.19

15

SPRING,FORK INNER

44026-1042

$41.80

16

GUIDE-FORK SPRING

44028-1003

$11.28

17

GASKET,FORK CYLINDER BOLT

11009-1127

$5.18

18

BOOT,FORK,LIME GREEN

49006-1058

Unavailable

19

BAND,BOOT

92072-1046

$10.04

20

CLAMP,BOOT,R.H

92072-1025

Unavailable

21

BRACKET-UPPER

44039-1040

$187.56

22

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

$25.96

23

CAP,FORK TOP

44029-1008

Unavailable

24

CAP,RUBBER,FORK TOP

44029-1009

Unavailable

25

CLAMP,BOOT,L.H

92072-1026

Unavailable

26

BOLT,FORK TOP

44041-065

Unavailable

27

BOLT,FORK CYLINDER

92001-1309

$7.62

28

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

29

WASHER,FORK OUTER PIPE

92022-1262

$8.60

30

BOLT FLANGED 8X55

92001-1398

$4.04

31

SCREW-PAN-CROS

220B0420

$2.49

32

NUT-HEX,8MM

311G0800

Unavailable

33

NUT,LOCK,8MM

92015-1124

$5.42

34

WASHER

44043-052

$8.01

35

WASHER PLAIN 8MM

410B0800

$0.93

36

WASHER SPRING 8MM

461F0800

$0.40

37

VALVE ASSY,AIR

16126-1003

Unavailable

38

HOLDER-HANDLE

46012-1014

$12.13

39

BOLT-SMALL-UPSET

115G0835

$4.54

40

HOLDER HANDLE

46012-1012

$27.78

41

BOLT

92001-1436

$8.54

42

NUT

92015-1142

$5.46

43

WASHER,FORK OUTER PIPE

92022-1262

$8.60

44

DAMPER,RUBBER

92075-1307

$5.27

45

COVER-DAMPER RUBBER

11012-1165

Unavailable

46

BUSHING,FORK PIPE

92028-1126

$49.26

47

CLAMP,CABLE

92072-1027

Unavailable

4

PIN-COTTER,2.0X20

550D2020

$0.96

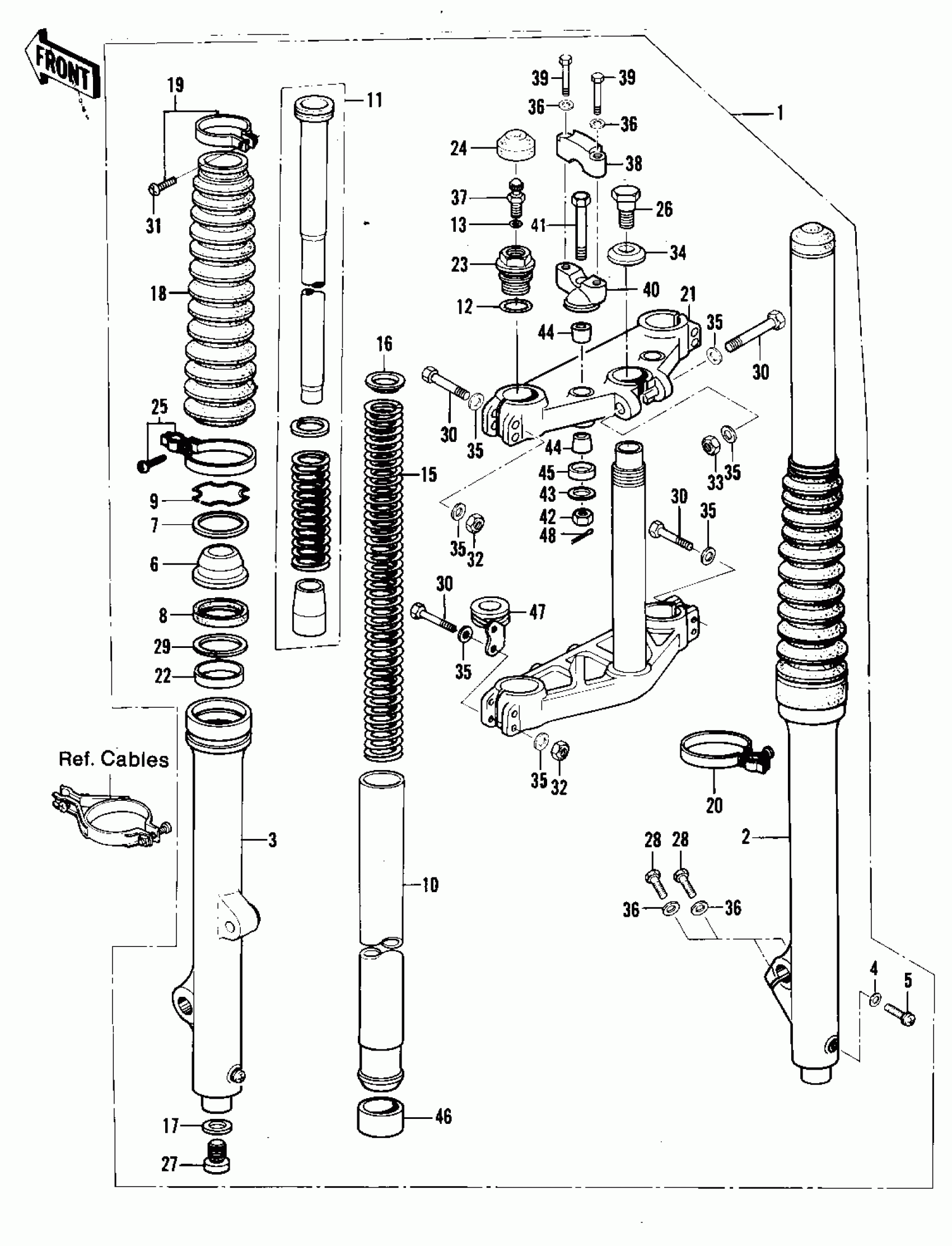

Kawasaki KX250 FRONT FORK (KX250-A7 Diagram
