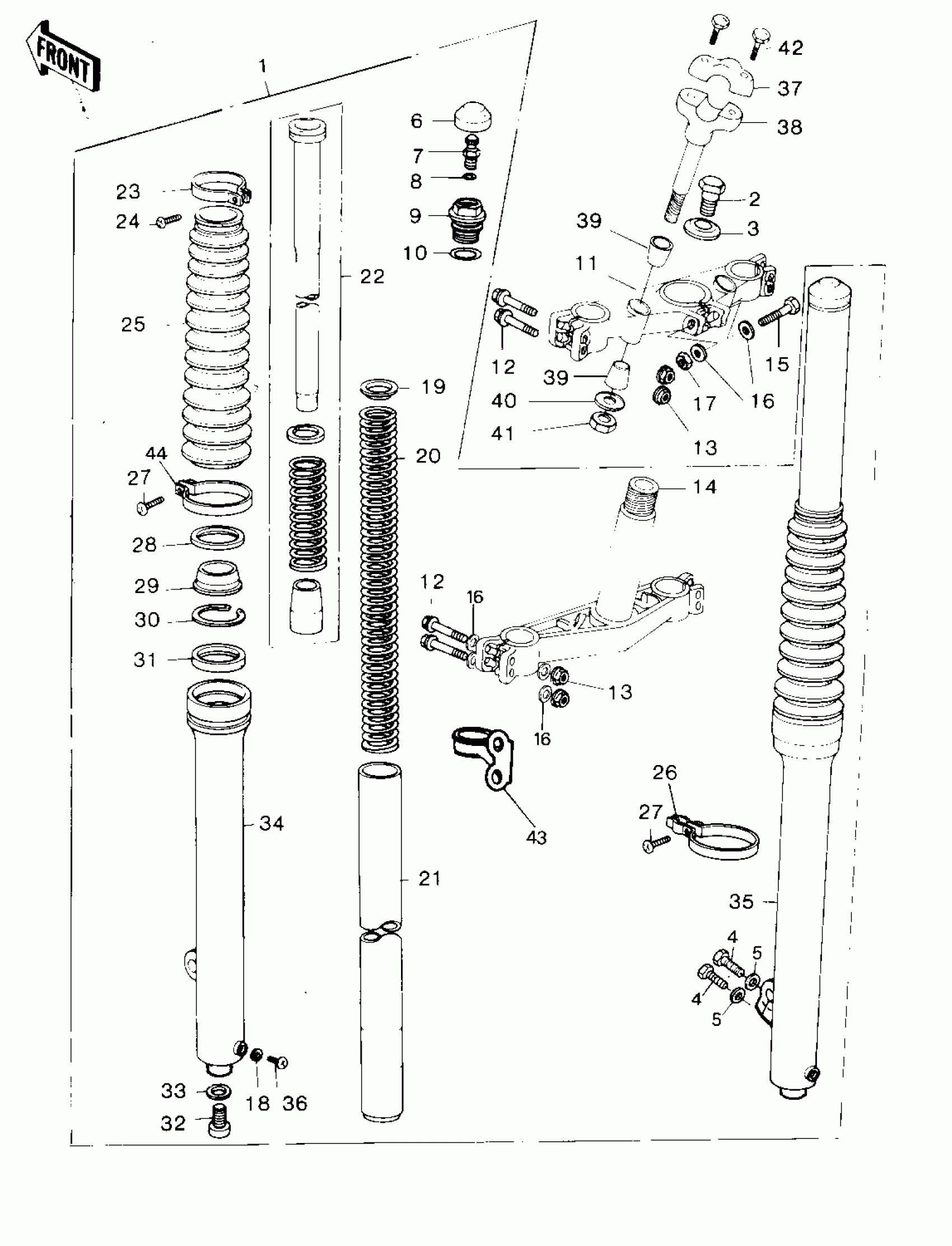

Kawasaki KX250 FRONT FORK (KX250-A6) Diagram

#

Description
Price

1

FORK-FRONT

44001-1118

$1,076.12

2

BOLT,FORK TOP

44041-065

Unavailable

3

WASHER

44043-052

$8.01

4

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

5

WASHER SPRING 8MM

461F0800

$0.40

6

CAP,RUBBER,FORK TOP

44029-1009

Unavailable

7

VALVE ASSY,AIR

16126-1003

Unavailable

8

"0" RING,AIR VALVE

92055-1018

Unavailable

9

CAP,FORK TOP

44029-1008

Unavailable

10

RING-O,FORK TOP CAP

92055-1050

$6.27

11

HEAD,STEERING STEM

44039-4004

$91.95

12

BOLT FLANGED 8X55

92001-1398

$4.04

13

NUT-HEX,8MM

311G0800

Unavailable

14

STEM,STEERING

44037-1048

$407.76

15

NUT,LOCK,8MM

92015-1124

$5.42

16

WASHER PLAIN 8MM

410B0800

$0.93

17

NUT,LOCK,8MM

92015-1124

$5.42

18

GASKET,FORK DRAIN PLUG

44045-002

$5.18

19

GUIDE-FORK SPRING

44028-1003

$11.28

20

SPRING,FORK INNER

44026-1042

$41.80

21

TUBE,FORK INNER

44013-1028

$233.22

22

CYLINDER-FORK

44022-1032

$86.42

23

BAND,BOOT

92072-1008

$10.93

24

SCREW-PAN-CROS

220B0420

$2.49

25

BOOT,FORK,L.GREEN

49006-1027

Unavailable

26

CLAMP,BOOT,L.H

92072-1026

Unavailable

27

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

28

CASE,DUST SHIELD

32099-1013

Unavailable

29

DUST SHIELD,FORK OUTR

92093-1035

$14.45

30

RING-SNAP,FORK

92033-1047

$6.46

31

OIL SEAL,FORK OUT TUB

92049-1042

Unavailable

32

BOLT,FORK CYLINDER

92001-1309

$7.62

33

GASKET,FORK CYLINDER BOLT

11009-1127

$5.18

34

TUBE,LH,FORK OUTER

44005-1037

$245.19

35

TUBE,RH,FORK OUTER

44006-1037

$226.62

36

SCREW PAN HEAD 4X8

220B0408

$0.67

37

HOLDER-HANDLE,UPP

46012-008

$37.74

38

HOLDER-HANDLE,LWR

46012-010

$30.76

39

DAMPER RUBBER,HANDLE

92075-275

Unavailable

40

WASHER-HANDLEBAR FIT

92022-196

Unavailable

41

NUT,LOCK,10MM

92019-021

$6.11

42

BOLT 8X38

92001-1405

$16.50

43

CLAMP,CABLE

92072-1027

Unavailable

44

CLAMP,BOOT,R.H

92072-1025

Unavailable
