Description

Price

120

BOLT-SOCKET,8X35

120P0835

$2.62

14079

HOLDER-ASSY,FRONT CALIPER

14079-1088

Unavailable

14090

COVER,DISC,P.WHITE

14090-1272-6F

Unavailable

32085

STOPPER,PAD

32085-1314

Unavailable

41080

DISC,FR

41080-1354

$336.09

41080A

DISC,FR

41080-1365

Unavailable

43041

CALIPER-ASSY,FR,LH

43041-1462

$416.91

43048

PISTON-CALIPER

43048-1064

$67.26

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE

43082-1117

$72.94

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92009

SCREW,6X14

92009-1546

$4.80

92143

COLLAR

92143-1196

$4.69

92143A

COLLAR

92143-1612

$5.75

92144

SPRING,PAD

92144-1636

Unavailable

92150

BOLT,SOCKET,10X16

92150-1111

$6.52

92150A

BOLT

92150-1144

$9.91

92150B

BOLT,6X14

92150-1340

$5.07

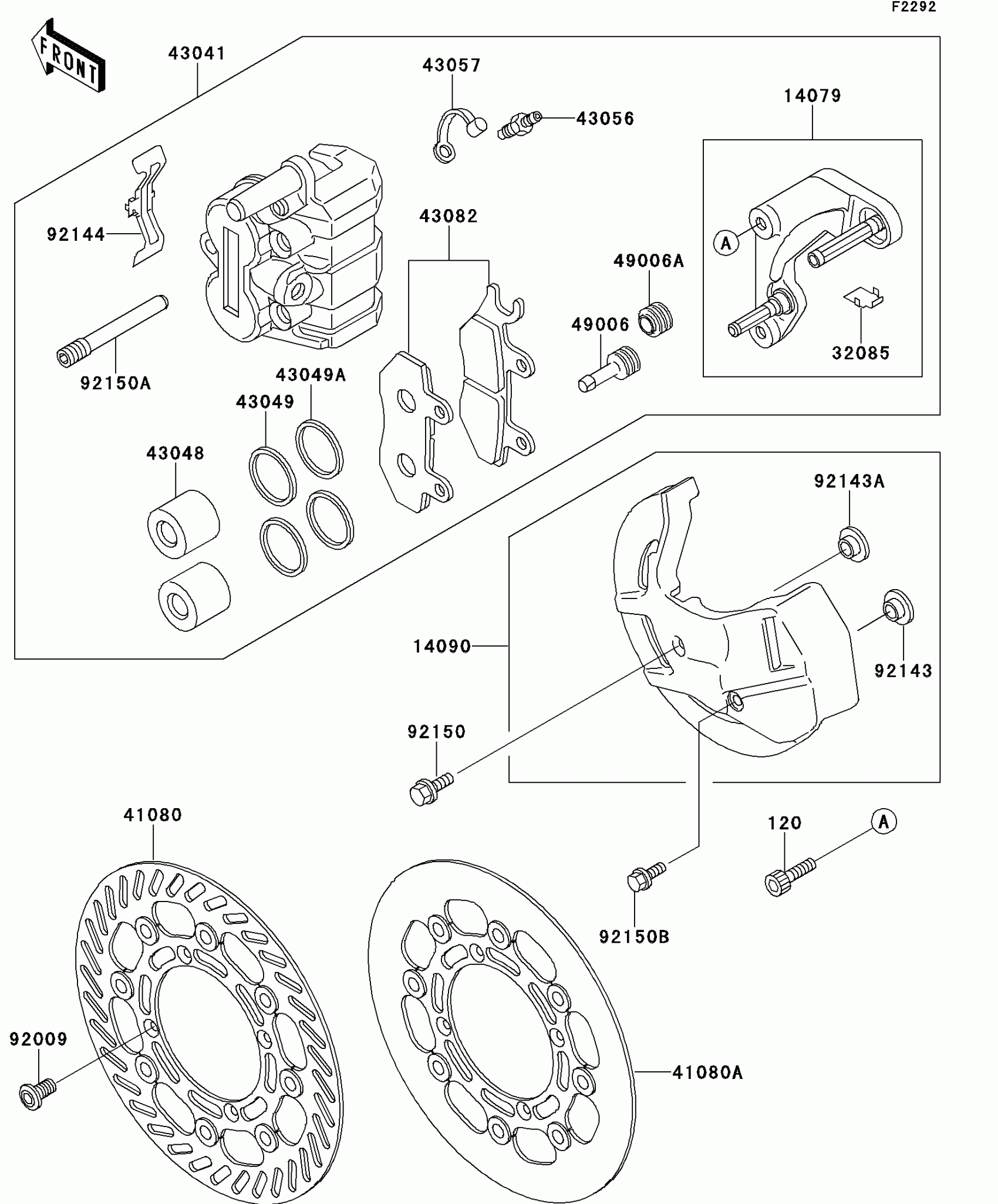

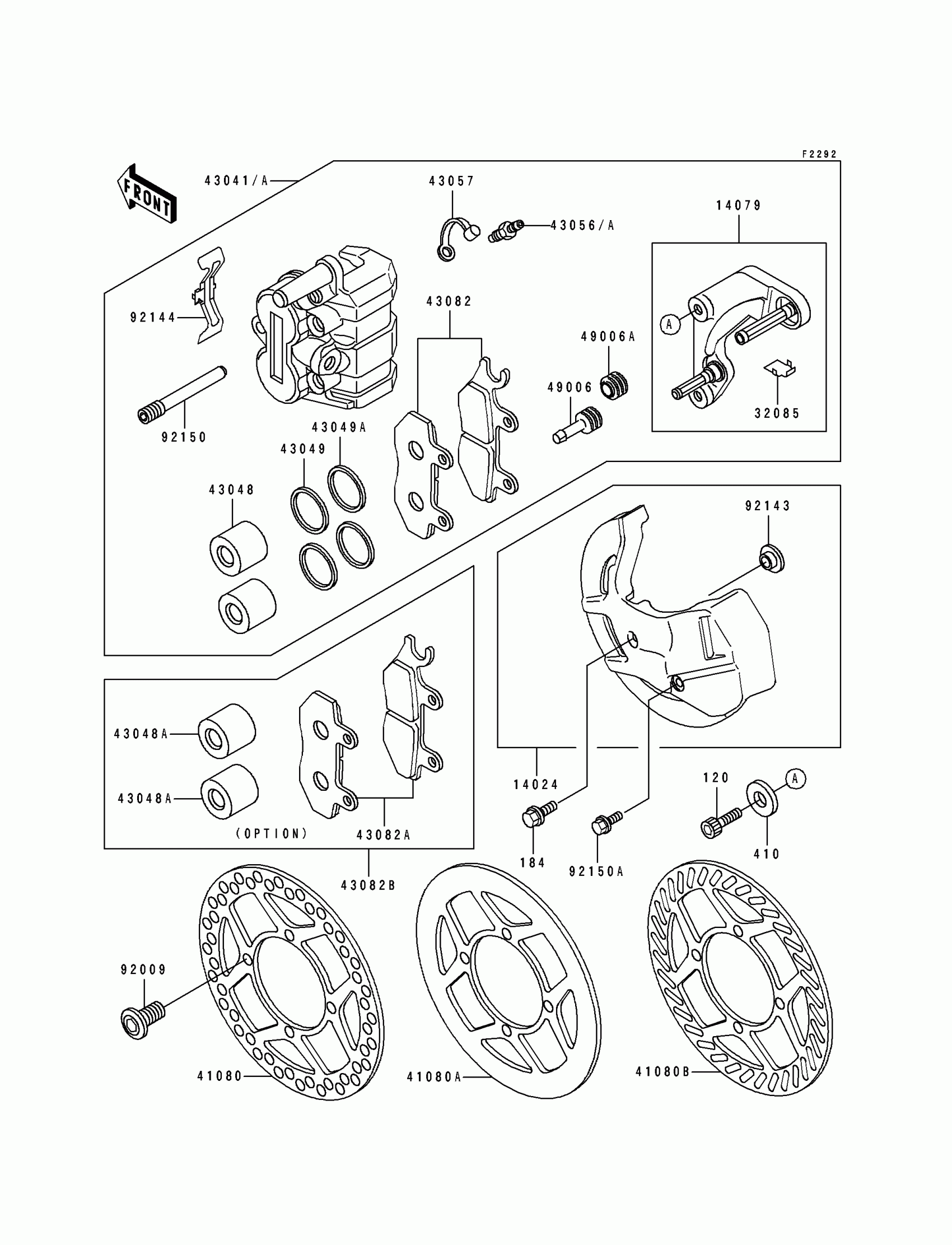

Kawasaki KX250 Front Caliper Diagram

BOLT-SOCKET,8X35

HOLDER-ASSY,FRONT CALIPER

COVER,DISC,P.WHITE

STOPPER,PAD

DISC,FR

DISC,FR

CALIPER-ASSY,FR,LH

PISTON-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER

CAP-BREATHER

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

SCREW,6X14

COLLAR

COLLAR

SPRING,PAD

BOLT,SOCKET,10X16

BOLT

BOLT,6X14
