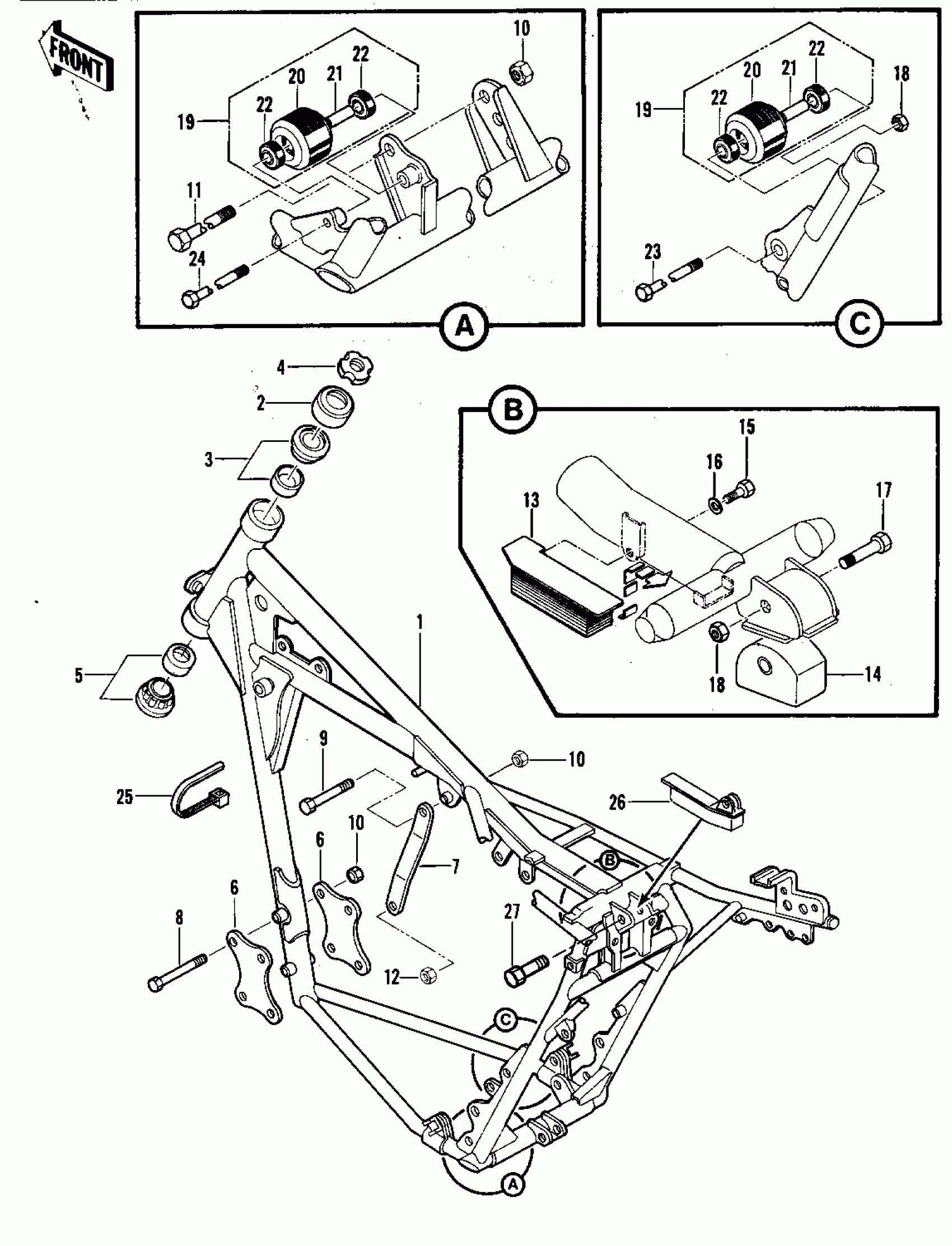

Kawasaki KX250 FRAME/FRAME FITTINGS (KX250-A6) Diagram

#

Description
Price

1

FRAME

32002-1231

Unavailable

1

FRAME

32002-1231

Unavailable

2

CAP,STEERING STEM

46098-015

Unavailable

3

RACE,ROLLER,32005JR RS

92047-017

$43.75

4

NUT,25MM,T=12

92015-1546

$20.96

5

BEARING-ROLLER,LWR,32006JR RS

92116-1008

$75.31

6

BRACKET,ENGINE

32029-1112

$26.89

7

BRACKET,ENGINE

32029-4016

Unavailable

8

BOLT HEX HEAD,10X66.5

92001-1033

Unavailable

9

BOLT

92001-1412

Unavailable

10

NUT,LOCK,10MM

92019-021

$6.11

11

BOLT,HEX HEAD,10X127

92001-4001

Unavailable

12

NUT,FLANGED,10MM

92015-1415

$4.69

13

DAMPER,REAR SHOCK

92075-1249

Unavailable

14

DAMPER UNITRAK

92075-4025

$51.34

15

BOLT SMALL

114G0812

Unavailable

16

WASHER SPRING 8MM

461F0800

$0.40

17

BOLT,8X40

115G0840

$6.00

18

NUT,LOCK,8MM

92015-1124

$5.42

19

ROLLER,ASSY

92122-1013

$108.77

20

ROLLER

92122-1014

Unavailable

20

ROLLER

92122-1014

Unavailable

21

COLLAR

92027-1081

$9.59

2

BEARING-BALL,608LLU/2A

92045-1009

$35.22

2

BEARING-BALL,608LLU/2A

92045-1009

$35.22

23

BOLT-SMALL-UPSET

115G0855

$6.13

24

BOLT HEX HEAD 8X70

114B0870

$4.46

25

BAND,L=292.1

92072-3509

Unavailable

26

DAMPER,RUBBER

92075-1280

Unavailable

27

BOLT 6X35

110R0635

Unavailable
