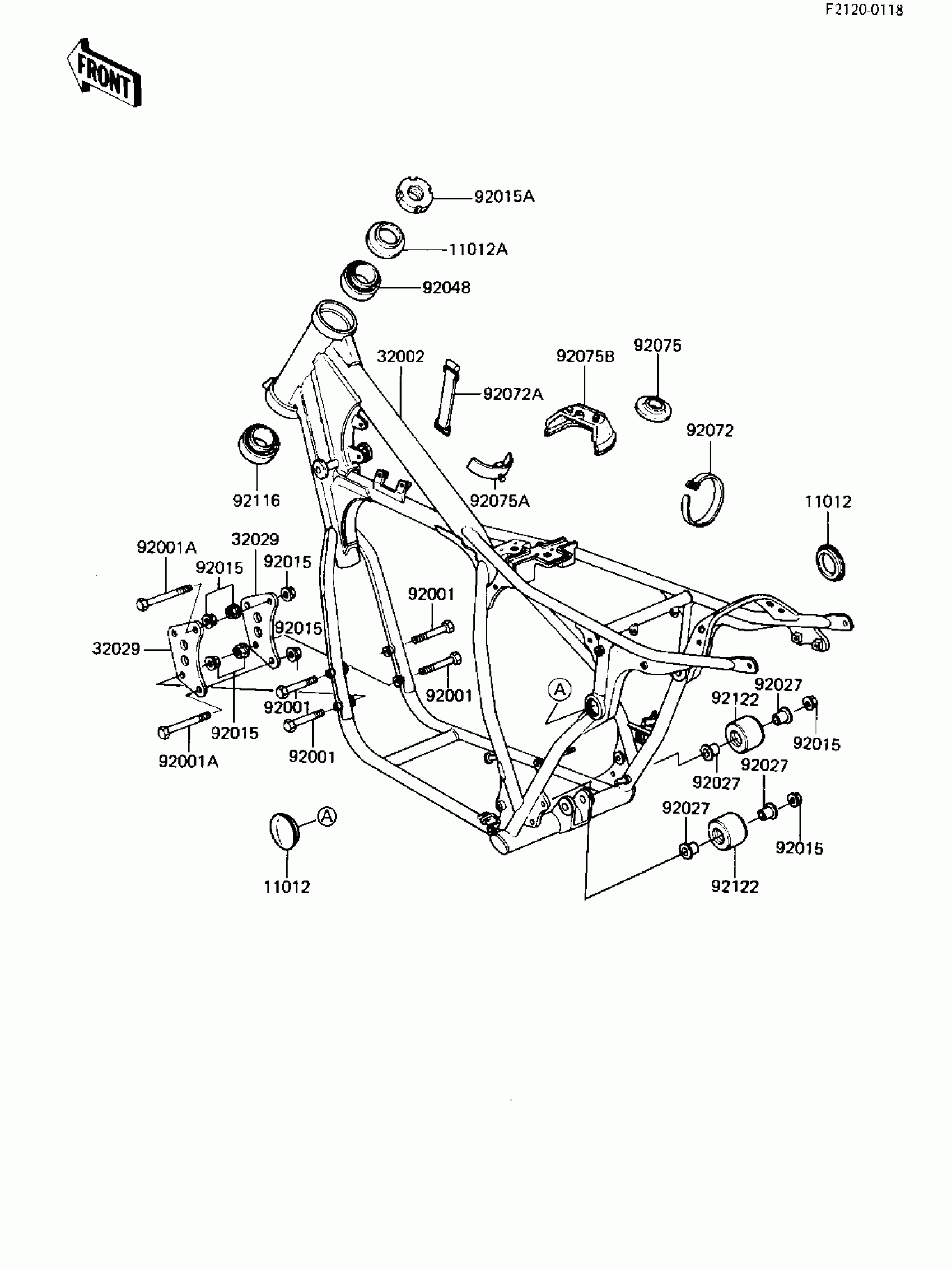

Kawasaki KX250 FRAME/FRAME FITTINGS Diagram

Description

Price

11012

CAP,UNI-TRAK

11012-1211

Unavailable

11012A

CAP,STEERING STEM

46098-015

Unavailable

32002

FRAME-COMP

32002-1377

Unavailable

32029

BRACKET-ENGINE

32029-1333

Unavailable

92001

BOLT,8X57

92001-1493

Unavailable

92001A

BOLT,8X72

92001-1494

$9.91

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,25MM,T=12

92015-1546

$20.96

92027

COLLAR,CHAIN GUIDE

92027-1383

$8.60

92048

RACE,ROLLER,32005JR RS

92047-017

$43.75

92072

BAND,L=123

92072-030

$5.00

92072A

BAND

92072-1085

$18.15

92075

DAMPER,RESERVE TANK

92075-1358

Unavailable

92075A

DAMPER,RESERVE TANK

92075-1359

Unavailable

92075B

DAMPER

92075-1366

Unavailable

92116

BEARING-ROLLER,LWR,32006JR RS

92116-1008

$75.31

92122

ROLLER,CHAIN GUIDE

92122-1021

$13.38
