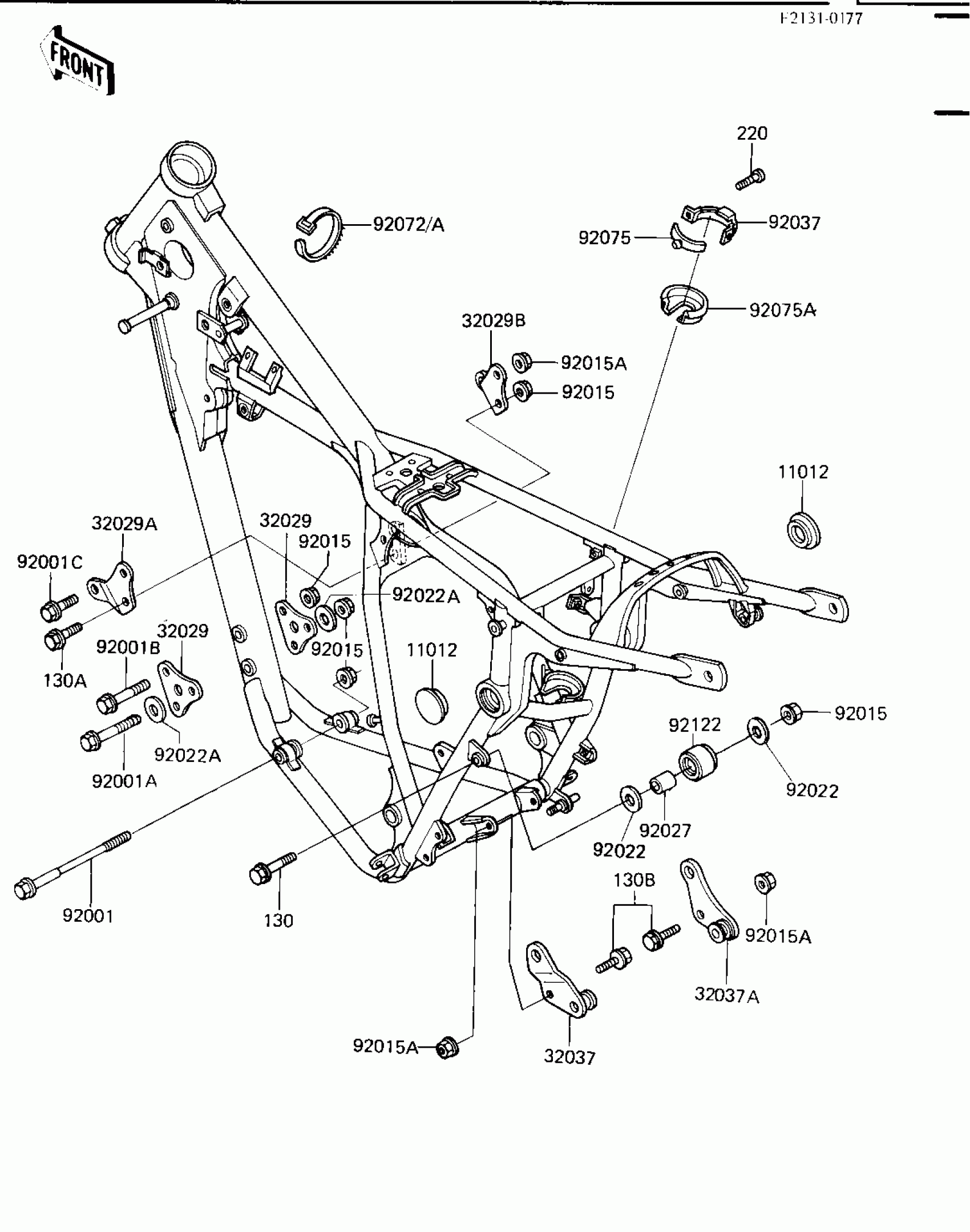

Kawasaki KX250 FRAME FITTINGS ('84 KX250-C2) Diagram
#
Description
Price
11012
CAP,UNI-TRAK
11012-1211
Unavailable
32029
BRACKET-ENGINE,FR
32029-1228
$39.97
32029A
BRACKET-ENGINE,UPP,LH
32029-1229
$28.35
32029B
BRACKET-ENGINE,UPP,RH
32029-1230
$19.39
32037
BRACKET-SHOCKABSORBER
32037-1230
Unavailable
32037A
BRACKET-SHOCKABSORBER
32037-1231
Unavailable
92001
BOLT,8X140
92002-1059
Unavailable
92001A
BOLT,FLANGED,8X80,BLA
92001-1640
$4.60
92001B
BOLT,FLANGED,8X75,BLA
92001-1642
$7.62
92001C
BOLT,FLANGED,10X50
92001-1692
$8.43
92015
NUT,8MM
92015-1143
$0.65
92015A
NUT,FLANGED,10MM
92015-1415
$4.69
92022
WASHER,8.5X26X1.6
92022-092
$4.31
92022A
WASHER,8.5X20X1.6
92022-1561
$4.31
92027
COLLAR,CHAIN ROLLER
92027-1670
$7.34
92037
CLAMP,RESERVE TANK,UP
92037-1375
Unavailable
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=218
92072-032
$5.00
92075
DAMPER,RESERVE TANK,U
92075-1431
Unavailable
92075A
DAMPER,RESERVE TANK,L
92075-1432
Unavailable
92122
ROLLER,CHAIN GUIDE
92122-1104
Unavailable
130
BOLT-FLANGED,8X50
130G0850
$2.19
130A
BOLT-FLANGED,8X30
130P0830
$1.08
130B
BOLT-FLANGED,10X20
130P1020
$2.09
220
SCREW PAN HEAD 6X12
220B0612
Unavailable
