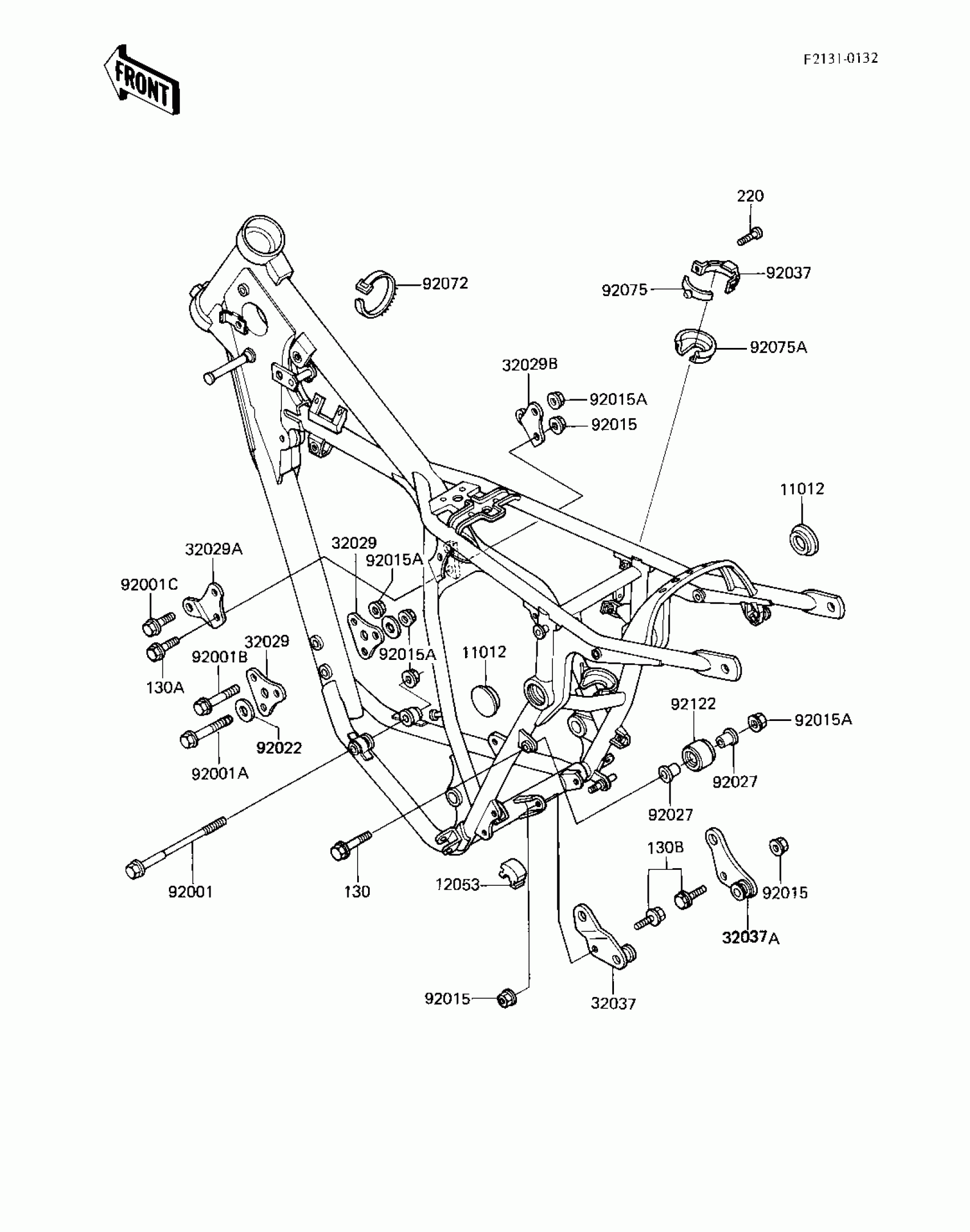

Kawasaki KX250 FRAME FITTINGS ('83 KX250-C1) Diagram

Description

Price

11012

CAP,UNI-TRAK

11012-1211

Unavailable

12053

GUIDE-CHAIN,FR,LWR

12053-1088

Unavailable

32029

BRACKET-ENGINE,FR

32029-1228

$39.97

32029A

BRACKET-ENGINE,UPP,LH

32029-1229

$28.35

32029B

BRACKET-ENGINE,UPP,RH

32029-1230

$19.39

32037

BRACKET-SHOCKABSORBER

32037-1230

Unavailable

32037A

BRACKET-SHOCKABSORBER

32037-1231

Unavailable

92001

BOLT,8X140

92002-1059

Unavailable

92001A

BOLT,FLANGED,8X80,BLA

92001-1640

$4.60

92001B

BOLT,FLANGED,8X75,BLA

92001-1642

$7.62

92001

BOLT,FLANGED,10X50

92001-1692

$8.43

92015

NUT,FLANGED,10MM

92015-1415

$4.69

92015A

NUT,8MM

92015-1143

$0.65

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92027

COLLAR,CHAIN GUIDE

92027-1383

$8.60

92037

CLAMP,RESERVE TANK,UP

92037-1375

Unavailable

92072

BAND,L=123

92072-030

$5.00

92075

DAMPER,RESERVE TANK,U

92075-1431

Unavailable

92075A

DAMPER,RESERVE TANK,L

92075-1432

Unavailable

92122

ROLLER,CHAIN GUIDE

92122-1021

$13.38

130

BOLT-FLANGED,8X50

130G0850

$2.19

130A

BOLT-FLANGED,8X30

130P0830

$1.08

130B

BOLT-FLANGED,10X20

130P1020

$2.09

220

SCREW PAN HEAD 6X12

220B0612

Unavailable
