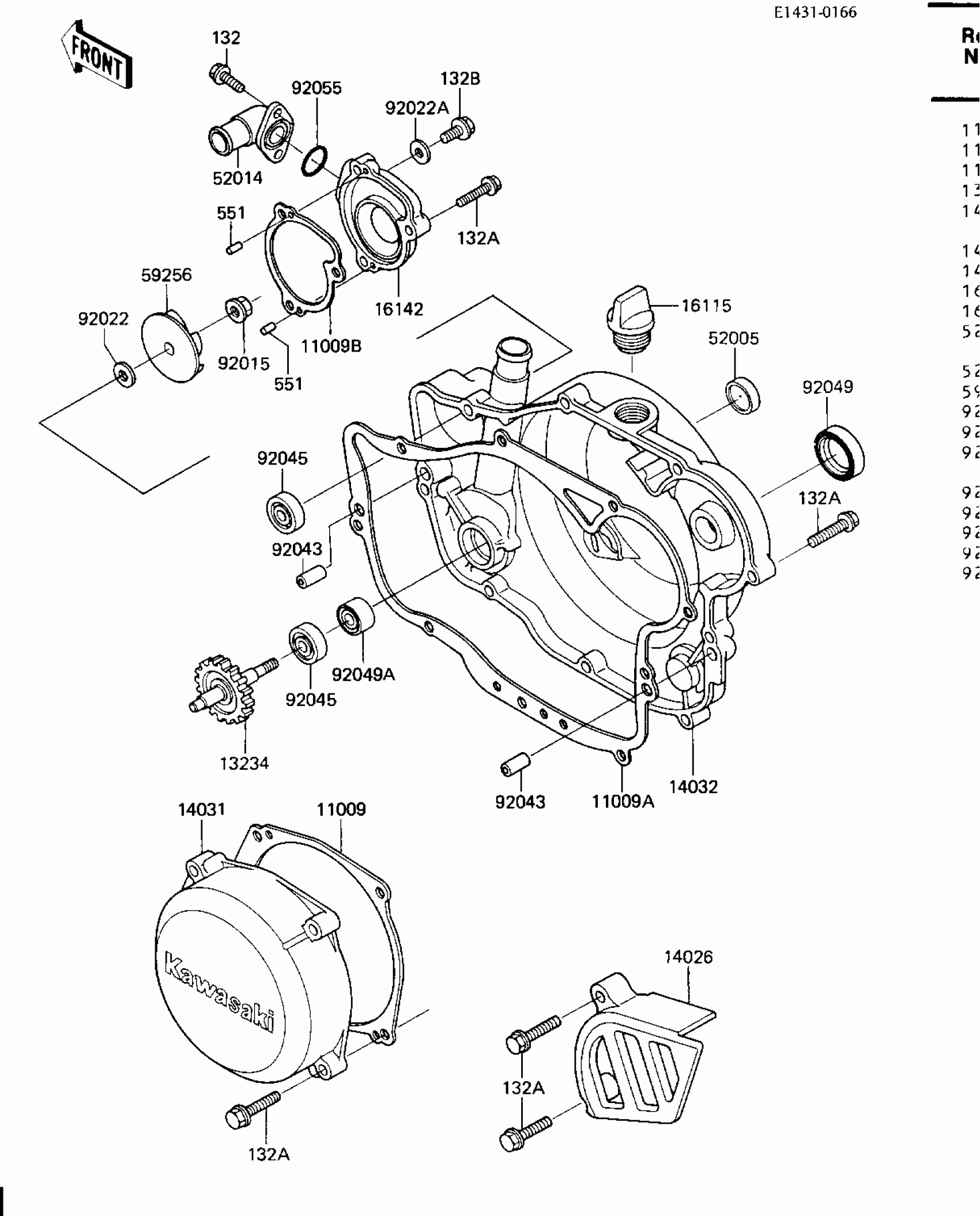

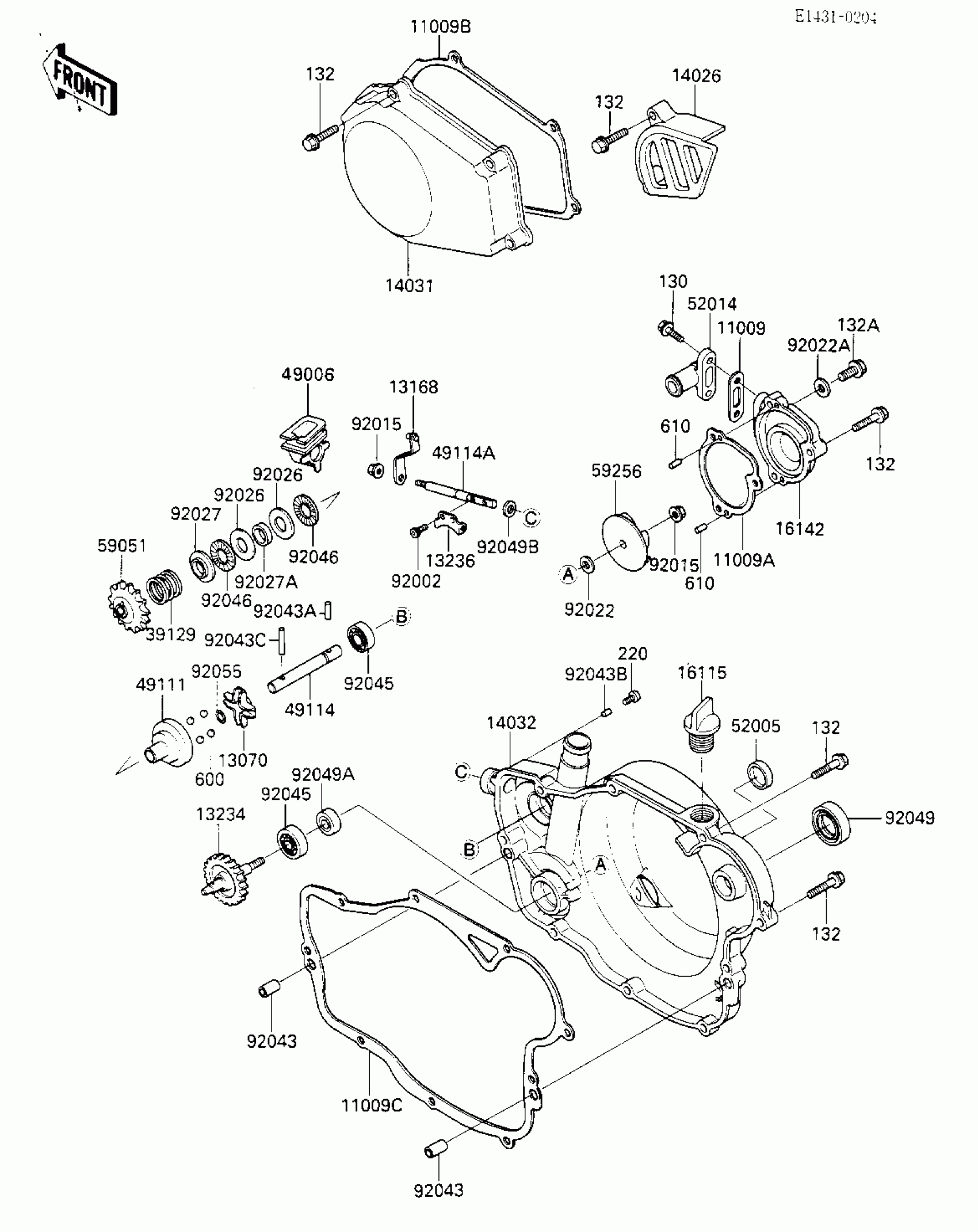

Kawasaki KX250 ENGINE COVERS/WATER PUMP Diagram
#
11009
GASKET,ELBOW
11009-1952
$5.54
11009A
GASKET,WATER PUMP COVER
11009-1953
$9.27
11009B
GASKET,GENERATOR
11009-1626
Unavailable
11009C
GASKET,CLUTCH COVER
11009-1627
Unavailable
13070
GUIDE
13070-1122
$79.07
13168
LEVER,GOVERNOR
13168-1494
Unavailable
13234
SHAFT-COMP,WATER PUMP
13234-1009
Unavailable
13236
LEVER-COMP,GOVERNOR
13236-1250
$9.77
14026
COVER-CHAIN
14026-1119
Unavailable
14031
COVER-GENERATOR
14031-1201
Unavailable
14032
COVER-CLUTCH
14032-1229
Unavailable
16115
CAP-OIL FILLER
16115-018
$10.56
16142
COVER-PUMP
16142-1067
Unavailable
39129
SPRING-GOVERNER
39129-1001
Unavailable
49006
BOOT
49006-1202
$10.96
49111
HOLDER-GOVERNOR WEIGHT
49111-1051
$67.40
49114
SHAFT-GOVERNOR
49114-1058
$32.40
49114A
SHAFT-GOVERNOR
49114-1061
Unavailable
52005
GAUGE,OIL LEVEL
52005-1055
$14.76
52014
ELBOW
52014-1062
$35.38
59051
GEAR-SPUR,GOVERNOR
59051-1180
$9.44
59256
IMPELLER,WATER PUMP
59256-1002
Unavailable
92002
BOLT,SOCKET,4X8
92002-1403
$3.32
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92022
WASHER,6X14X2
92022-1393
Unavailable
92022A
WASHER,8.2X14X1.0
92022-1488
$4.92
92026
SPACER,15X28X1
92026-1238
$8.47
92027
COLLAR
92027-1838
$29.26
92027A
COLLAR,15.2X17X4
92027-1839
$12.27
92043
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043A
PIN,3X12.8
92043-1256
$4.50
92043B
PIN,2X9.8
92043-1293
$6.52
92043C
PIN,3X19.8
92043-1319
$4.11
92045
BEARING-BALL
92045-1212
$12.37
92046
BEARING-NEEDLE,AXK1102
92046-1052
$14.47
92049
SEAL-OIL,SB18307
92049-013
$14.36
92049A
SEAL-OIL,MHSD8X18X10J-1
92049-1366
$17.95
92049B
SEAL-OIL,SDO8144
92049-1207
$9.73
92055
RING-O,5.5X1.5
92055-1339
$4.32
130
BOLT-FLANGED
130P0520
Unavailable
132
BOLT-FLANGED-SMALL
132G0625
Unavailable
132A
BOLT-FLANGED-SMALL
132G0810
$4.02
220
SCREW-PAN-CROS,3X6
220B0306
$0.63
600
BALL-STEEL,5/16
600A1000
$0.73
610
ROLLER,4X8
610A0408
$4.31
