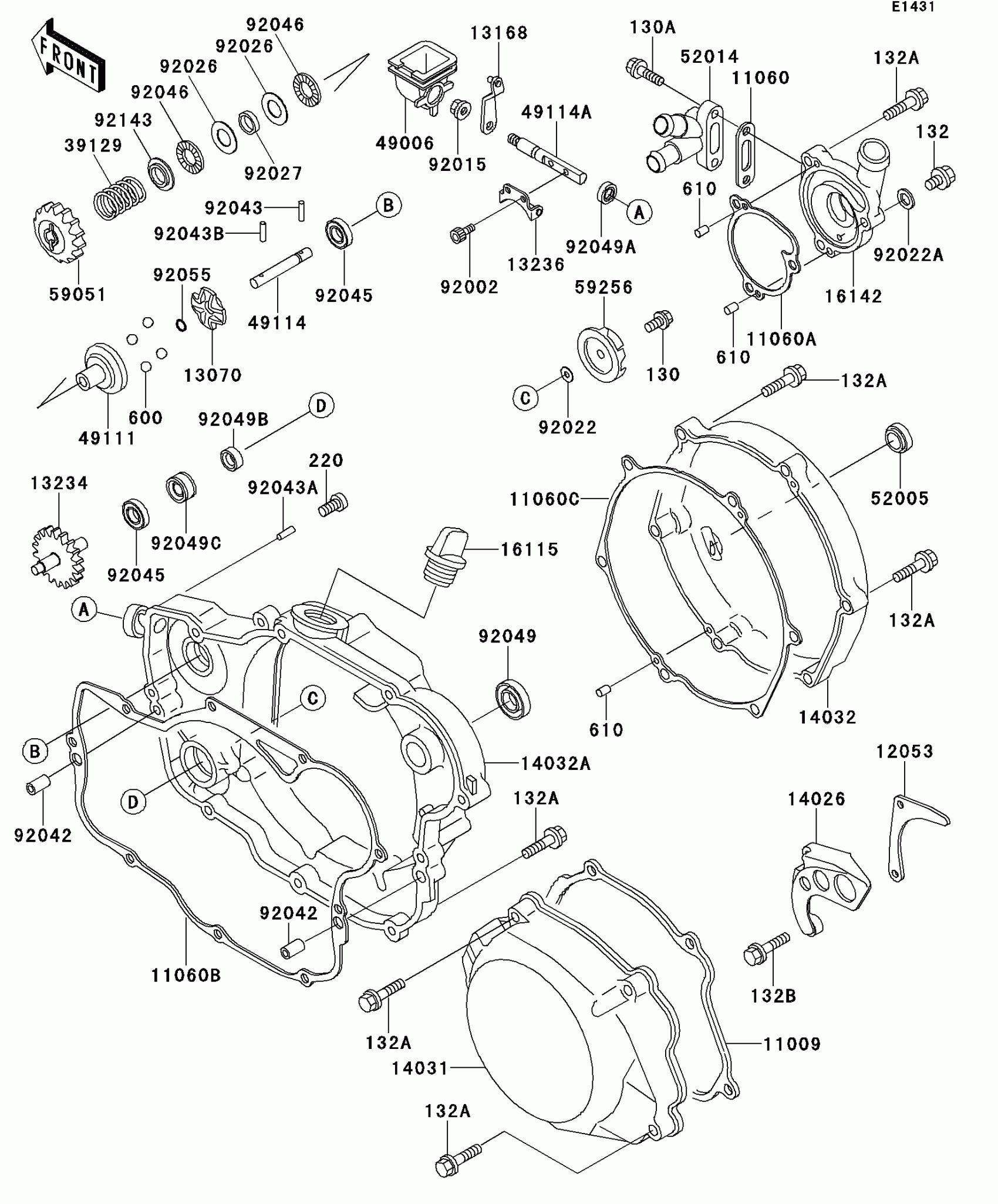

Kawasaki KX250 Engine Cover Diagram
#
11009
GASKET,GENERATOR COVER
11009-1951
Unavailable
11060
GASKET,ELBOW
11060-1183
$5.42
11060A
GASKET,PUMP COVER
11060-1184
$7.64
11060B
GASKET,CLUTCH COVER,IN
11060-1185
$24.56
11060C
GASKET,CLUTCH COVER,OUT
11060-1186
$21.17
12053
GUIDE-CHAIN
12053-1233
$10.50
13070
GUIDE
13070-1206
$55.69
13168
LEVER,GOVERNOR
13168-1500
Unavailable
13234
SHAFT-COMP
13234-1096
Unavailable
13236
LEVER-COMP,GOVERNOR
13236-1250
$9.77
14026
COVER-CHAIN
14026-1174
$26.81
14031
COVER-GENERATOR
14031-1244
Unavailable
14032
COVER-CLUTCH,OUT
14032-1313
$103.75
14032A
COVER-CLUTCH,IN
14032-1327
Unavailable
16115
CAP-OIL FILLER
16115-018
$10.56
16142
COVER-PUMP
16142-1117
$153.37
39129
SPRING-GOVERNOR
39129-1009
$6.46
49006
BOOT
49006-1277
$11.93
49111
HOLDER-GOVERNOR WEIGHT
49111-1054
Unavailable
49114
SHAFT-GOVERNOR
49114-1074
$32.96
49114A
SHAFT-GOVERNOR
49114-1077
Unavailable
52005
GAUGE,OIL LEVEL
52005-1055
$14.76
52014
ELBOW
52014-1073
Unavailable
59051
GEAR-SPUR
59051-1277
Unavailable
59256
IMPELLER
59256-1065
$36.12
92002
BOLT,SOCKET,4X8
92002-1403
$3.32
92015
NUT,FLANGED,6MM
92015-1193
Unavailable
92022
WASHER,5.2X13X1
92022-1380
$4.31
92022A
WASHER,6.2X11X1
92022-304
$3.65
92026
SPACER,15X28X1
92026-1238
$8.47
92027
COLLAR,15.2X17X4
92027-1839
$12.27
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043
PIN,3X12.8
92043-1256
$4.50
92043A
PIN,2X9.8
92043-1293
$6.52
92043B
PIN,3X19.8
92043-1319
$4.11
92045
BEARING-BALL
92045-1212
$12.37
92046
BEARING-NEEDLE,AXK1102
92046-1052
$14.47
92049
SEAL-OIL,SB18307
92049-013
$14.36
92049A
SEAL-OIL,SDO8144
92049-1207
$9.73
92049B
SEAL-OIL,MH8X18X3.5-A
92049-1359
$9.28
130
BOLT-FLANGED,5X14
130P0514
$4.71
130A
BOLT-FLANGED
130P0520
Unavailable
132
BOLT-FLANGED-SMALL,6X8
132G0608
$2.33
132A
BOLT-FLANGED-SMALL
132G0625
Unavailable
132B
BOLT-FLANGED-SMALL,6X30
132G0630
$2.48
220
SCREW-PAN-CROS,3X6
220B0306
$0.63
600
BALL-STEEL,3/8"
600A1200
$1.56
610
ROLLER,4X8
610A0408
$4.31
92049C
SEAL-OIL,MHSD8X18X10J-1
92049-1366
$17.95
92055
RING-O,5.5X1.5
92055-1343
$0.64
92143
COLLAR
92143-1593
$11.07
