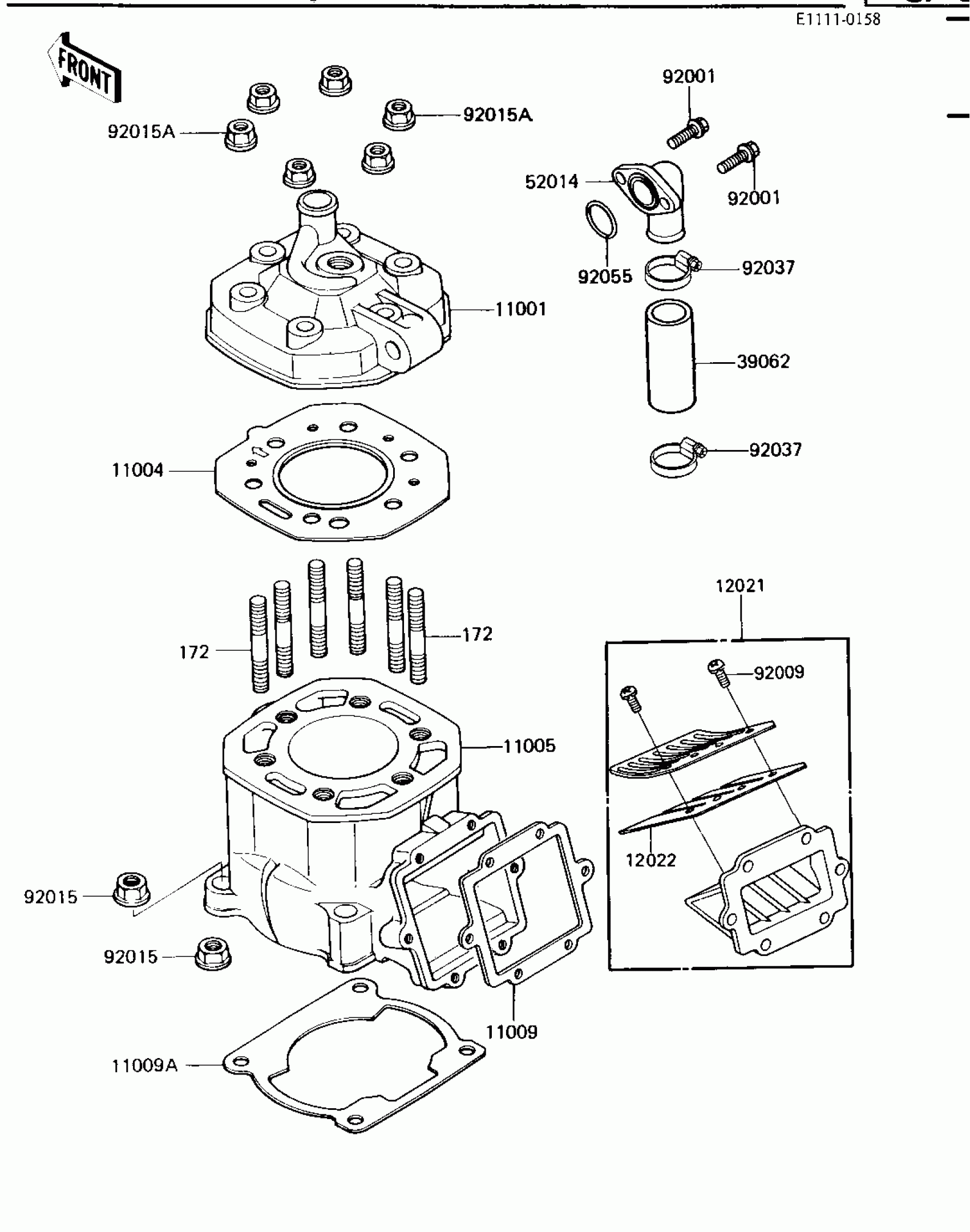

Kawasaki KX250 CYLINDER HEAD/CYLINDER/REED VALVE ('84 K Diagram

Description

Price

11001

HEAD-CYLINDER

11001-1159

Unavailable

11004

GASKET-HEAD,CYLINDER

11004-1057

Unavailable

11005

CYLINDER-ENGINE

11005-1347

Unavailable

11009

GASKET,REED VALVE

11009-1950

$11.49

11009A

GASKET,CYLINDER BASE

11009-1318

Unavailable

12021

VALVE-ASSY-REED

12021-1019

Unavailable

12022

VALVE-REED

12022-1017

$29.73

39062

HOSE-COOLING,RADIATOR-PUMP

39062-1256

$25.59

52014

ELBOW,CYLINDER

52014-1004

$32.45

92001

BOLT-FLANGED-SMALL,6X16

132G0616

$1.47

92009

SCREW,REED VALVE

92009-1014

$2.49

92015

NUT,FLANGED,10MM

92015-1415

$4.69

92015A

NUT,8MM

92015-1143

$0.65

92037

CLAMP,COOLING HOSE

92037-1589

$18.57

92055

RING-O,19.5X1.5

92055-055

$4.31

172

STUD,8X35

92004-1009

$6.38
