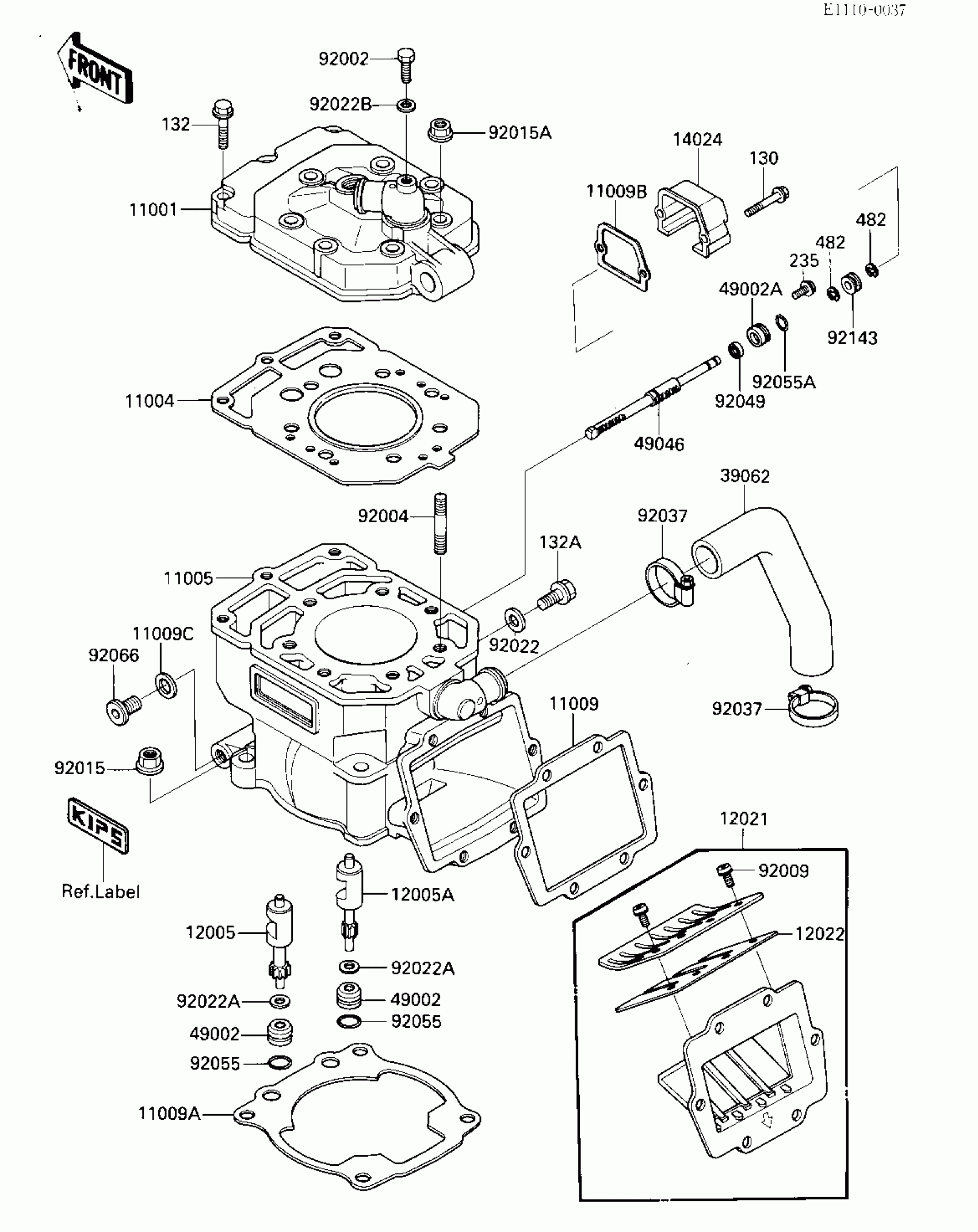

Kawasaki KX250 CYLINDER HEAD/CYLINDER/REED VALVE Diagram
#
11001
HEAD-CYLINDER
11001-1245
Unavailable
11004
GASKET-HEAD
11004-1157
Unavailable
11005
CYLINDER-ENGINE
11005-1509
Unavailable
11009
GASKET,REED VALVE
11009-1950
$11.49
11009A
GASKET,CYLINDER BASE
11009-1624
Unavailable
11009B
GASKET,GOVERNOR COVER
11009-1946
$5.82
11009C
GASKET,12.5X18X1,DRAIN PLUG
92065-073
$4.07
12005
VALVE-EXHAUST,LH
12005-1081
Unavailable
12005A
VALVE-EXHAUST,RH
12005-1092
Unavailable
12021
VALVE-ASSY-REED
12021-1065
Unavailable
12022
VALVE-REED
12022-1056
Unavailable
14024
COVER,GOVERNOR
14024-1359
Unavailable
39062
HOSE-COOLING
39062-1105
Unavailable
49002
GUIDE-VALVE
49002-1073
Unavailable
49002A
GUIDE-VALVE
49002-1074
$18.42
49046
ROD-GOVERNOR
49046-1058
$55.95
92002
BOLT,6X10
92002-1222
$8.10
92004
STUD,8X40
92004-1210
Unavailable
92009
SCREW,3X6
92009-1371
$4.18
92015
NUT,FLANGED,10MM
92015-1415
$4.69
92015A
NUT,8MM
92015-1143
$0.65
92022
WASHER,8.2X14X1.0
92022-1488
$4.92
92022A
WASHER
92022-1869
Unavailable
92022B
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92049
SEAL-OIL,RSO-5.5X11X4
92049-1206
$10.39
92055
RING-O,17.5X1.5
92055-022
$6.22
92055A
RING-O,10X1.5
92055-061
$4.78
92066
PLUG,12X10
92066-1222
$12.37
92143
COLLAR
92143-1056
$10.57
130
BOLT-FLANGED
130G0535
$3.84
132
BOLT-FLANGED-SMALL
132G0625
Unavailable
132A
BOLT-FLANGED-SMALL
132G0810
$4.02
235
SCREW-PAN-WP-CROS
235B0510
$3.41
482
CIRCLIP-TYPE-E,4MM
482J4000
$1.35
