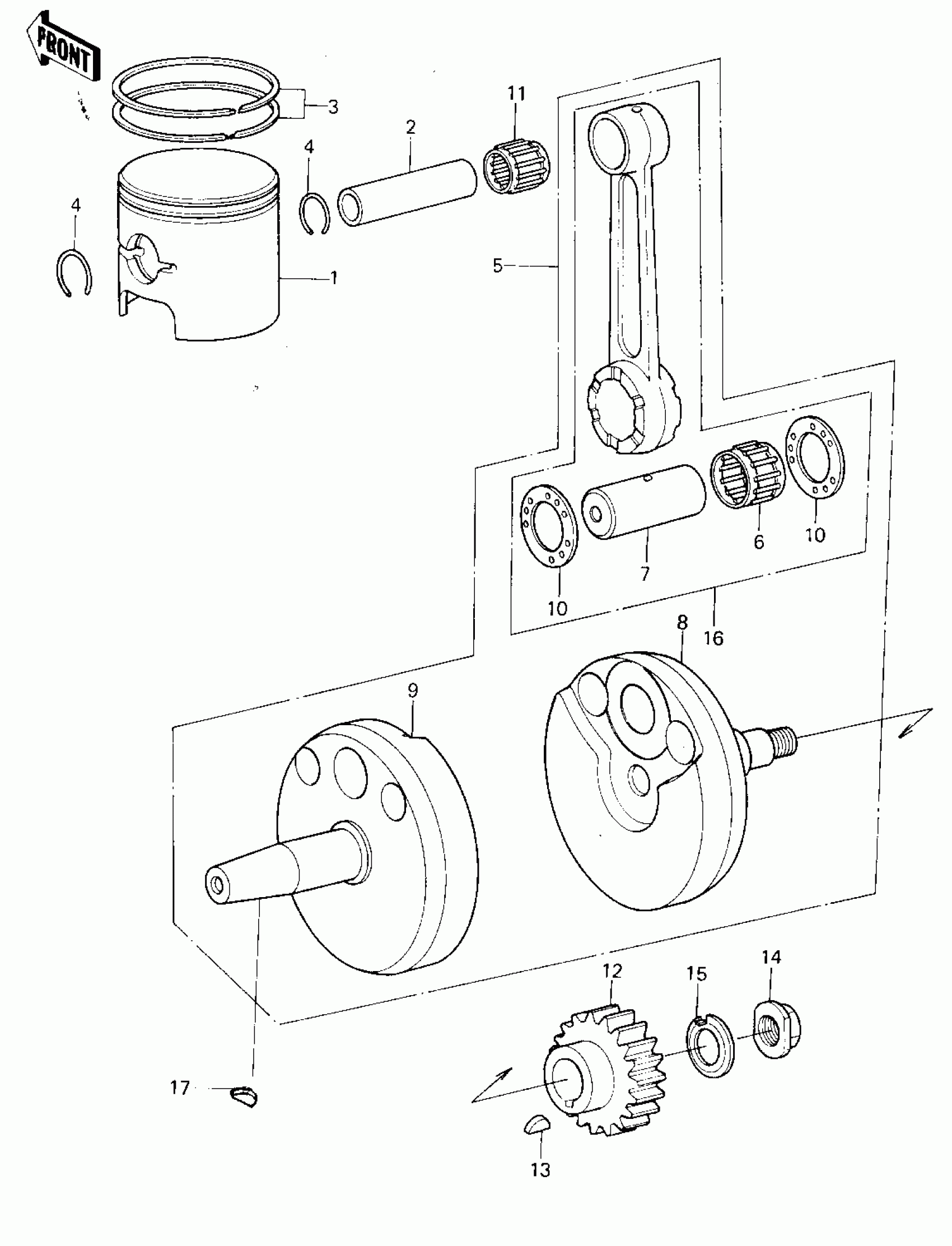

Kawasaki KX250 CRANKSHAFT/PISTON Diagram

#

Description

Price

1

PISTON,S.T.D

13001-1034

Unavailable

2

PIN-PISTON

13002-017

Unavailable

3

RING SET,STD

13008-5026

Unavailable

4

CIRCLIP-PISTON PIN

92036-015

Unavailable

5

CRANKSHAFT ASSY

13031-1038

Unavailable

6

BEARING,BIG END NEEDL

13034-049

Unavailable

7

PIN,CRANK

13035-034

Unavailable

8

CRANKSHAFT,R.H

13037-1069

Unavailable

9

CRANKSHAFT,L.H

13037-1068

Unavailable

10

SPACER

92026-1241

Unavailable

11

BEARING-SMALL END

13033-1010

Unavailable

12

GEAR,PRIMARY

13097-1028

Unavailable

13

WOODRUFF KEY

510A5100

Unavailable

14

NUT,CRANKSHAFT

92015-069

Unavailable

15

WASHER,LOCK

92024-061

Unavailable

16

CONNECTING ROD SET

13044-5007

Unavailable

17

KEY,WOODRUFF

92038-001

Unavailable
