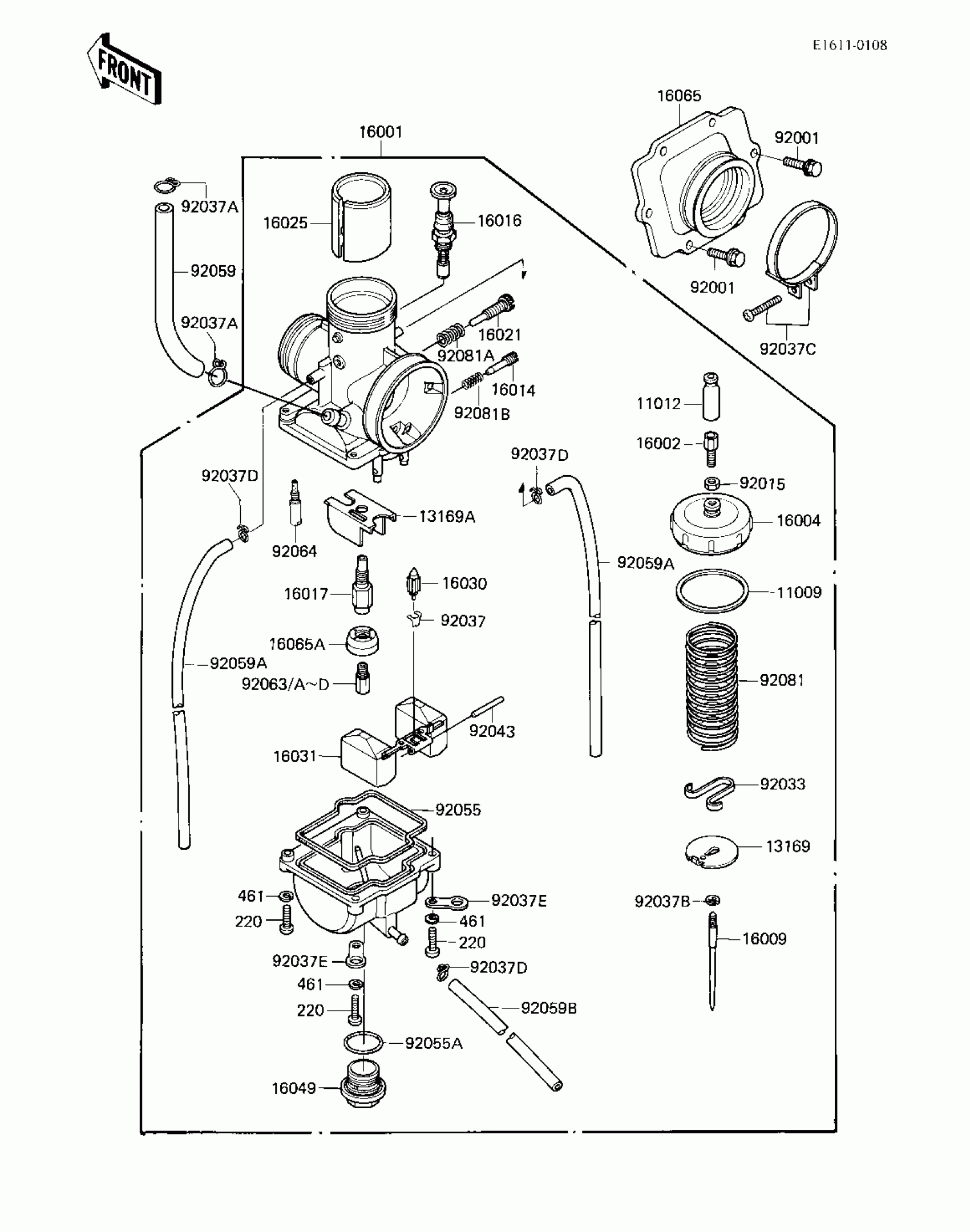

Kawasaki KX250 CARBURETOR ('83 KX250-C1) Diagram
#
11009
GASKET,CHAMBER CAP
11009-1337
Unavailable
11012
CAP,CABLE ADJUSTER
11012-1293
Unavailable
13169
PLATE,THROTTLE VALVE
13169-1609
Unavailable
13169A
PLATE,FLOAT CHAMBER
13169-1610
Unavailable
16001
CARBURETOR
16001-1678
$289.52
16002
ADJUSTER-CABLE
16002-1015
$8.39
16004
CAP-CHAMBER,MIXING
16004-1017
$32.08
16009
NEEDLE-JET,N13A
16009-1139
$26.94
16014
SCREW-PILOT AIR
16014-1033
$20.97
16016
PLUNGER,STARTER
16016-1028
$98.70
16017
JET-NEEDLE
16017-1126
$31.60
16021
SCREW-THROTTLE STOP
16021-1045
$12.40
16025
VALVE-THROTTLE,CA3.5
16025-1079
$110.14
16030
VALVE-FLOAT,3.6
16030-1028
$37.85
16031
FLOAT
16031-1022
$33.25
16049
COVER-MAIN JET
16049-1007
$24.85
16065
HOLDER-CARBURETOR
16065-1048
$75.13
16065A
HOLDER-CARBURETOR,JET
16065-1074
$12.35
92001
BOLT-FLANGED-SMALL
132G0620
$2.33
92015
NUT,CABLE ADJUST LOCK
92015-1252
$3.28
92033
RING-SNAP,THROTTLE VA
92033-1096
$3.63
92037
CLAMP,FLOAT VALVE
16044-007
$7.91
92037A
CLAMP,CARB CONECT HOS
92037-056
$6.60
92037B
CIRCLIP,JET NEEDLE
92037-1039
Unavailable
92037C
CLAMP,CARBURETOR HOL
92037-1313
Unavailable
92037D
CLAMP,TUBE
92037-1396
$5.52
92037E
CLAMP,HOSE
92037-1969
$8.10
92043
PIN,FLOAT
92043-1148
$11.14
92055
RING-O,FLOAT CHAMBER
92055-1166
$11.96
92055A
RING-O,MAIN JET COVER
92055-1167
$9.51
92059
TUBE,FUEL,6.5X11.5
92059-1252
$9.27
92059A
TUBE,4X7X400
92059-1284
$7.20
92059B
TUBE,3.5X6.5X270
92059-1285
$6.00
92063
JET-MAIN,#155
92063-1256
$15.04
92063A
JET-MAIN,#158
92063-1257
$7.78
92063B
JET-MAIN,#160
92063-1258
$15.04
92063C
JET-MAIN,#162
92063-1259
$7.78
92063D
JET-MAIN,#165
92063-1260
$7.78
92064
JET-PILOT,#60
92064-1063
$12.62
92081
SPRING,THROTTLE VALVE
92081-1553
$17.11
92081A
SPRING,STOP SCREW
92081-1554
$7.20
92081B
SPRING,ADJUST SCREW
92081-1555
$5.46
220
SCREW PAN HEAD 4X16
220B0416
$1.66
461
WASHER SPRING 4MM
461F0400
Unavailable
