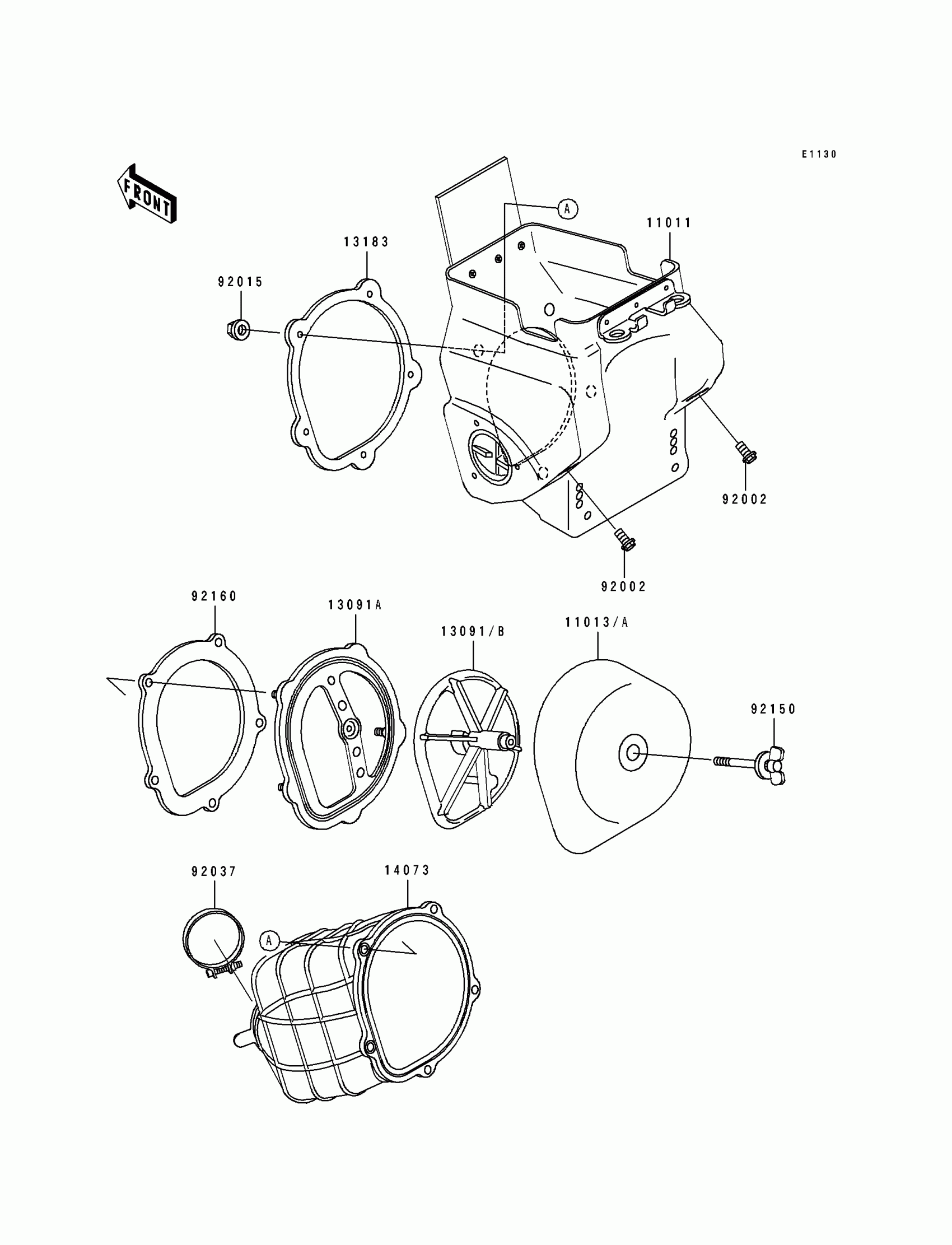

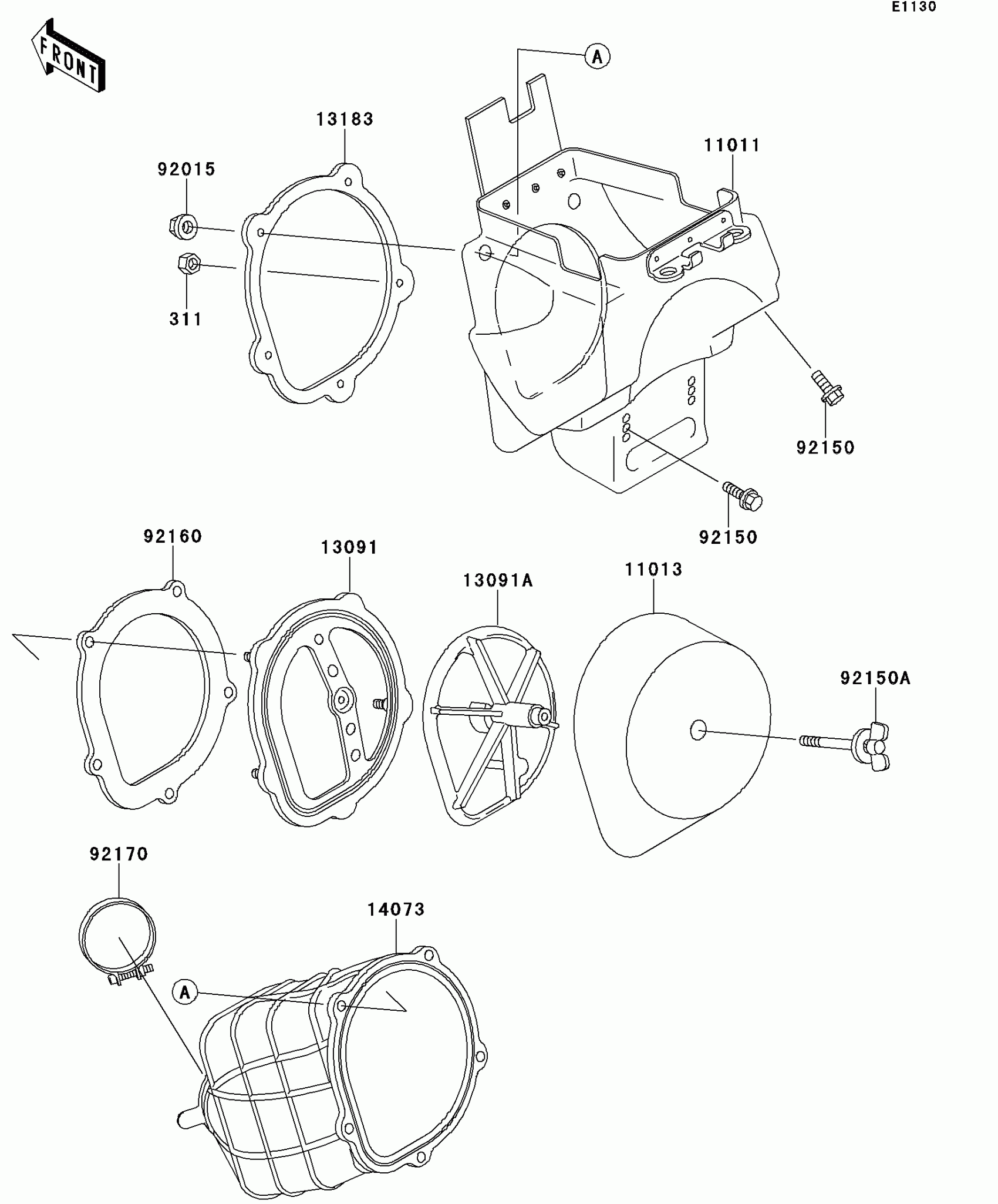

Kawasaki KX250 Air Filter Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1370

Unavailable

11013

ELEMENT-AIR FILTER

11013-1219

Unavailable

13091

HOLDER,AIR FILTER

13091-1784

Unavailable

13091A

HOLDER,ELEMENT

13091-1785

Unavailable

13183

PLATE,DUCT FITTING

13183-1788

Unavailable

14073

DUCT,AIR FILTER

14073-1570

$121.51

311

NUT-HEX

311H0500

$4.01

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92150

BOLT,FLANGED,6X16

92150-1506

$5.00

92150A

BOLT,WING

92150-1565

$9.89

92160

DAMPER,DUCT SEAL

92160-1331

Unavailable

92170

CLAMP,AIR FILTER

92170-1299

Unavailable
