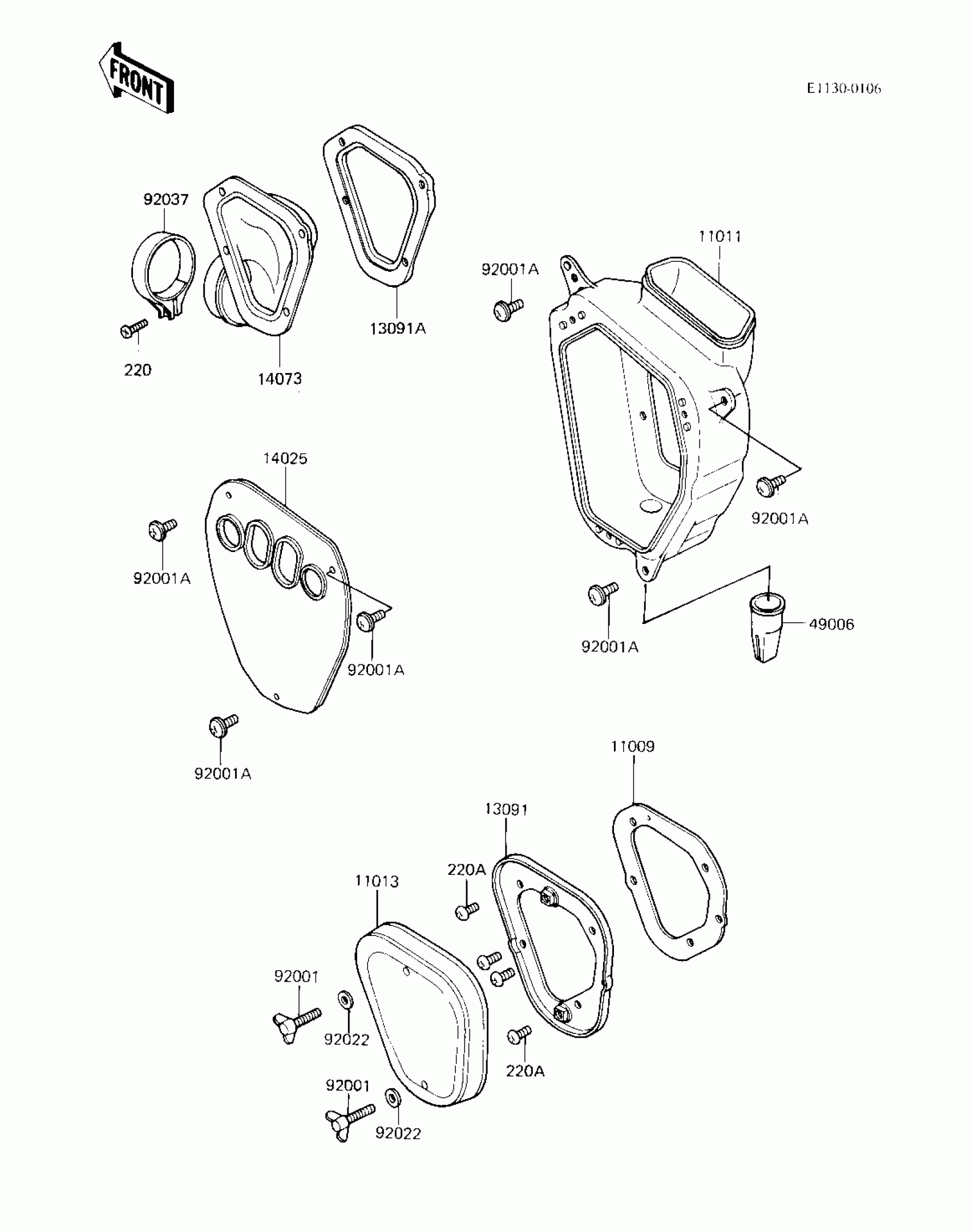

Kawasaki KX250 AIR CLEANER ('83 KX250-C1) Diagram

Description

Price

11009

GASKET,AIR FILTER CAS

11009-1317

Unavailable

11011

CASE-AIR FILTER

11011-1115

Unavailable

11013

ELEMENT-AIR FILTER

11013-1063

Unavailable

13091

HOLDER,AIR FILTER

13091-1156

Unavailable

13091A

HOLDER,DUCT

13091-1167

Unavailable

14025

COVER,AIR FILTER CASE

14025-1386

Unavailable

14073

DUCT,AIR FILTER

14073-1092

$60.20

49006

BOOT

49006-1012

Unavailable

92001

BOLT,WING,6X40

92001-1685

Unavailable

92001A

SCREW,6X14,WHITE

92009-1287

$2.55

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92037

CLAMP,BOOT FITTING

92037-1112

$16.72

220

SCREW-PAN-CROS

220B0430

$0.77

220A

SCREW-PAN-CROS

220B0512

$0.47
