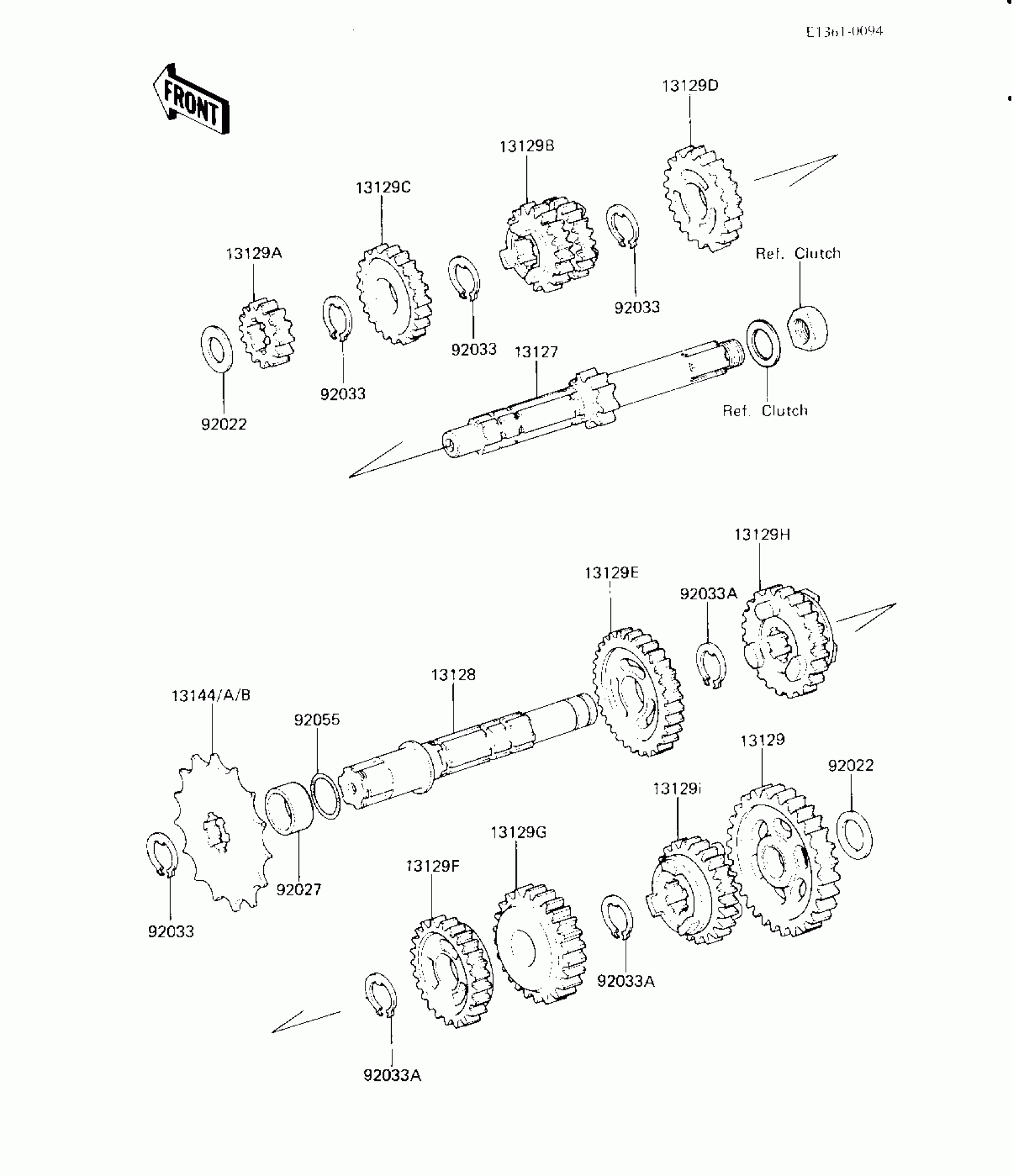

Kawasaki KX125 TRANSMISSION (KX125-B2) Diagram

#

Description

Price

13127

SHAFT-TRANSMISSION IN

13127-1062

Unavailable

13128

SHAFT-TRANSMISSION OU

13128-1046

Unavailable

13129

GEAR,OUTPUT,LOW,30T

13129-1304

Unavailable

13129C

GEAR INPUT 5TH,24T

13129-1384

Unavailable

13129D

GEAR INPUT TOP,22T

13129-1385

Unavailable

13129E

GEAR OUTPUT 2ND,28T

13129-1386

Unavailable

13129F

GEAR OUTPUT 3RD,28T

13129-1387

Unavailable

13129G

GEAR OUTPUT 4TH,26T

13129-1389

Unavailable

13129H

GEAR OUTPUT 5TH,25T

13129-1390

Unavailable

13144

SPROCKET-OUTPUT,11T

13144-1036

Unavailable

13144A

SPROCKET-OUTPUT,12T

13144-1049

Unavailable

13144B

SPROCKET-OUTPUT,13T

13144-1050

Unavailable

92022

WASHER,THRUST,15MM

92022-279

$10.56

92027

COLLAR,20X25X10.8

92027-1445

Unavailable

92033

RING-SNAP,18MM

92033-1079

$4.26

92033A

RING-SNAP,20MM

92033-1231

$5.54

92055

RING-O,17.5X1.5

92055-022

$6.22
