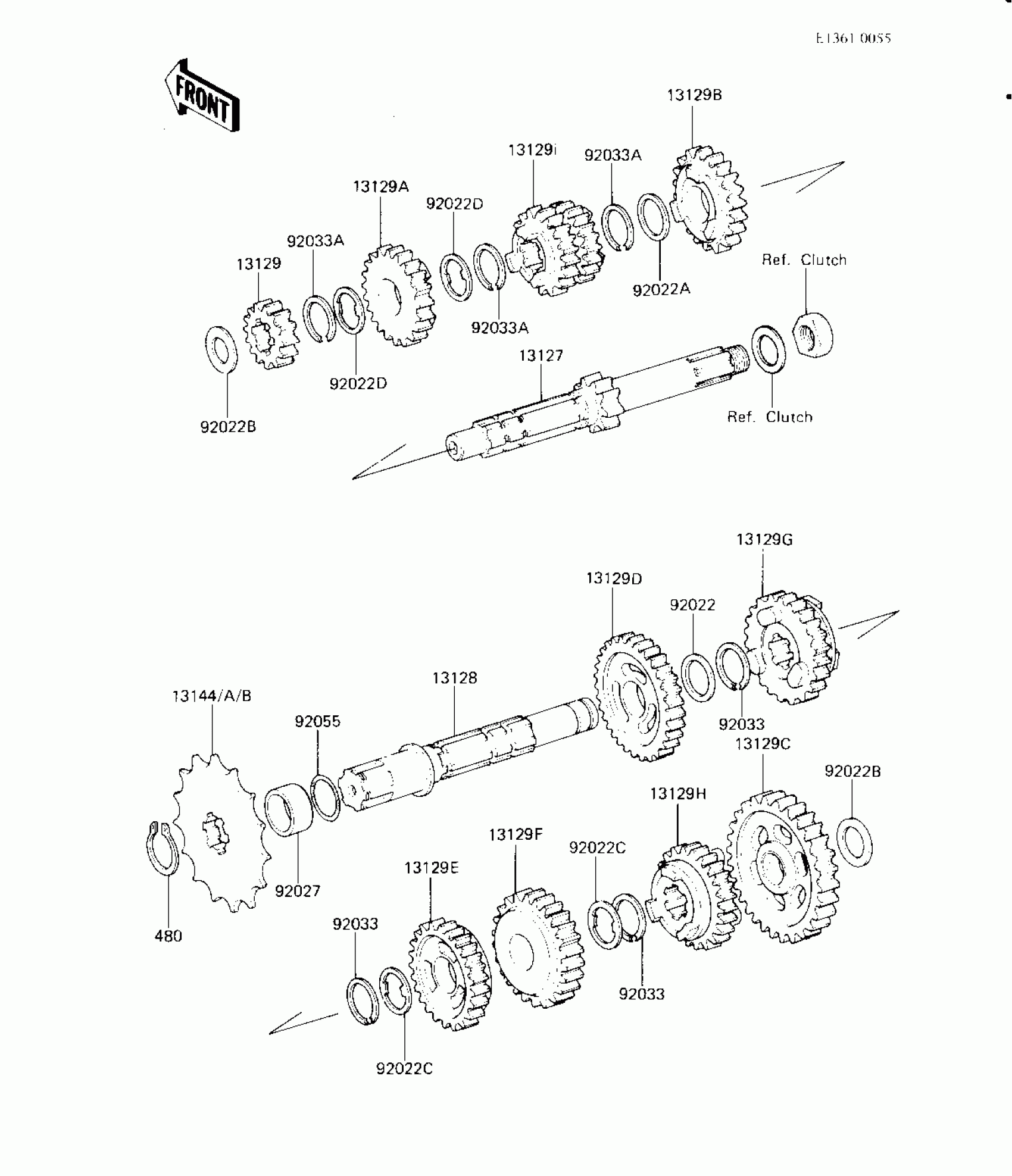

Kawasaki KX125 TRANSMISSION (KX125-B1) Diagram
#
Description
Price
13127
SHAFT-TRANSMISSION IN
13127-1045
Unavailable
13128
SHAFT-TRANSMISSION OU
13128-1038
Unavailable
13129
GEAR,INPUT,2ND,16T
13129-1300
Unavailable
13129A
GEAR,INPUT-5TH,24T
13129-1302
Unavailable
13129B
GEAR,INPUT,TOP,22T
13129-1303
Unavailable
13129C
GEAR,OUTPUT,LOW,30T
13129-1304
Unavailable
13129D
GEAR,OUTPUT,2ND,28T
13129-1305
Unavailable
13129E
GEAR,OUTPUT,3RD,28T
13129-1306
Unavailable
13129F
GEAR,OUTPUT,4TH,26T
13129-1307
Unavailable
13129G
GEAR,OUTPUT,5TH,25T
13129-1308
Unavailable
13129H
GEAR,OUTPUT,TOP,21T
13129-1309
Unavailable
13129I
GEAR,INPUT,3RD&4TH,20
13129-1340
Unavailable
13144
SPROCKET-OUTPUT,11T
13144-1036
Unavailable
13144A
SPROCKET-OUTPUT,12T
13144-1049
Unavailable
13144B
SPROCKET-OUTPUT,13T
13144-1050
Unavailable
92022
WASHER,22.3X27X0.5
92022-198
$5.52
92022A
WASHER,20.5X25.5X0.5
92022-252
$6.22
92022B
WASHER,THRUST,15MM
92022-279
$10.56
92022C
WASHER,TOOTHED,22.5X27X0.5
92024-039
$6.27
92022D
WASHER,LOCK
92024-059
$5.25
92027
COLLAR,20X25X10.8
92027-1445
Unavailable
92033
RING-SNAP,20X25.5X1.2
92033-025
$4.96
92033A
RING-SNAP,18MM
92033-029
$9.82
92055
RING-O,17.5X1.5
92055-022
$6.22
480
CIRCLIP-TYPE-C,20MM
480J2000
$2.71
