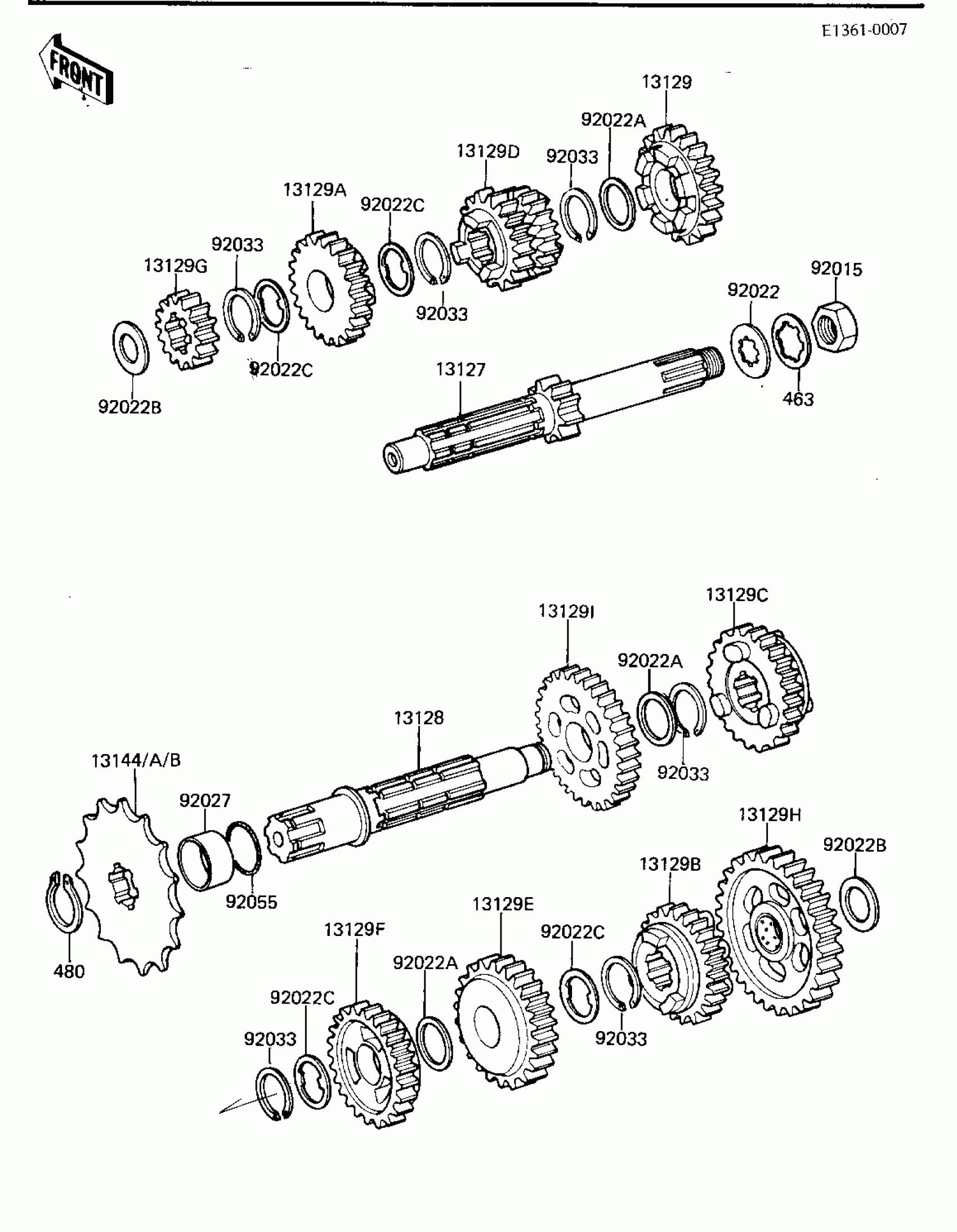

Kawasaki KX125 TRANSMISSION ('81 A7) Diagram
#
Description
Price
13127
SHAFT,DRIVE
13127-1030
Unavailable
13128
SHAFT,OUTPUT
13128-1039
Unavailable
13129
5TH GER,DRIVE,21T
13129-1065
Unavailable
13129A
TOP GEAR,DRIVE,22T
13129-1066
Unavailable
13129B
5TH GEAR,OUTPUT,21T
13129-1071
Unavailable
13129C
TOP GEAR,OUTPUT,20T
13129-1072
Unavailable
13129D
3RD&4THGEAR,DRIVE,SFT
13129-1120
Unavailable
13129E
3RD GEAR,OUTPUT SHAFT
13129-1123
Unavailable
13129F
4THGEAR,OUTPUT SHAFT
13129-1124
Unavailable
13129G
GEAR,INPUT 2ND,18T
13129-1299
Unavailable
13129H
LOW GEAR,OUTPUT,30T
13129-1210
Unavailable
13129I
2ND GEAR,OUTPUT,30T
13129-1211
Unavailable
13144
SPROCKET-OUTPUT,11T
13144-1036
Unavailable
13144A
SPROCKET-OUTPUT,12T
13144-1049
Unavailable
13144B
SPROCKET-OUTPUT,13T
13144-1050
Unavailable
92015
NUT 16MM
92016-036
$3.90
92022
WASHER,LOCK
92022-1124
Unavailable
92022A
WASHER,20.5X25.5X0.5
92022-252
$6.22
92022B
WASHER,THRUST,15MM
92022-279
$10.56
92022C
WASHER,LOCK
92024-059
$5.25
92027
COLLAR,ENGINE SPROCK
92027-1244
Unavailable
92033
RING-SNAP,18MM
92033-029
$9.82
92055
RING-O,17.5X1.5
92055-022
$6.22
463
WASHER,TOOTHED,16M/M
463H1600
$4.13
480
CIRCLIP-TYPE-C,20MM
480J2000
$2.71
