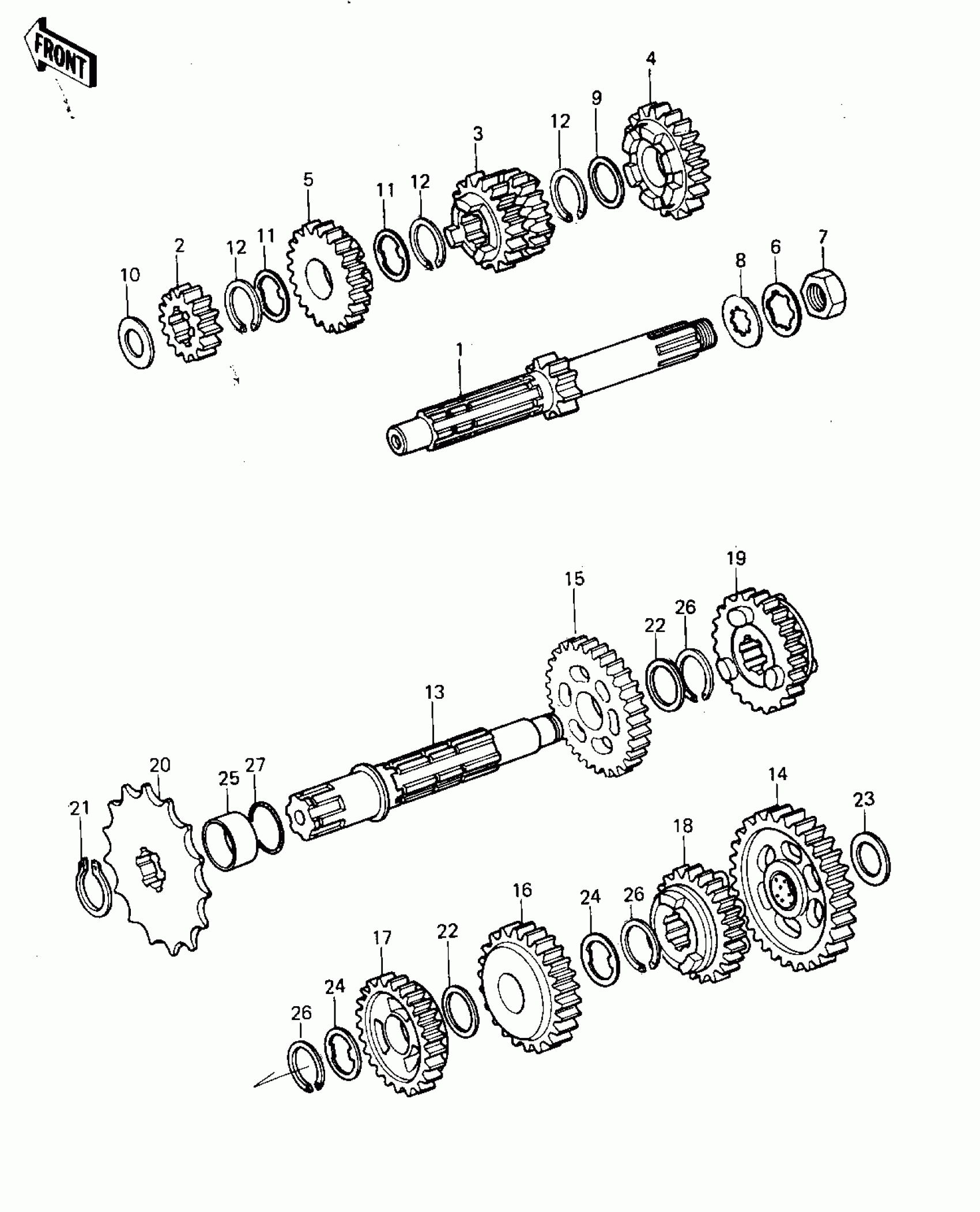

Kawasaki KX125 TRANSMISSION ('80 A6) Diagram
#
Description
Price
1
SHAFT,DRIVE
13127-1030
Unavailable
2
GEAR,INPUT 2ND,18T
13129-1299
Unavailable
3
3RD&4THGEAR,DRIVE,SFT
13129-1120
Unavailable
4
5TH GER,DRIVE,21T
13129-1065
Unavailable
5
TOP GEAR,DRIVE,22T
13129-1066
Unavailable
6
WASHER,TOOTHED,16M/M
463H1600
$4.13
7
NUT 16MM
92016-036
$3.90
8
WASHER,LOCK
92022-1124
Unavailable
9
WASHER,20.5X25.5X0.5
92022-252
$6.22
10
WASHER,THRUST,15MM
92022-279
$10.56
11
WASHER,LOCK
92024-059
$5.25
12
RING-SNAP,18MM
92033-029
$9.82
13
SHAFT,OUTPUT
13128-1039
Unavailable
14
LOW GEAR,OUTPUT,30T
13129-1210
Unavailable
15
2ND GEAR,OUTPUT,30T
13129-1211
Unavailable
16
3RD GEAR,OUTPUT SHAFT
13129-1123
Unavailable
17
4THGEAR,OUTPUT SHAFT
13129-1124
Unavailable
18
5TH GEAR,OUTPUT,21T
13129-1071
Unavailable
19
TOP GEAR,OUTPUT,20T
13129-1072
Unavailable
20
SPROCKET-OUTPUT,12T
13144-1049
Unavailable
20
SPROCKET-OUTPUT,13T
13144-1050
Unavailable
20
SPROCKET-OUTPUT,11T
13144-1036
Unavailable
21
CIRCLIP-TYPE-C,20MM
480J2000
$2.71
22
WASHER,20.5X25.5X0.5
92022-252
$6.22
23
WASHER,THRUST,15MM
92022-279
$10.56
24
WASHER,LOCK
92024-059
$5.25
25
COLLAR,ENGINE SPROCK
92027-1244
Unavailable
26
RING-SNAP,18MM
92033-029
$9.82
27
RING-O,17.5X1.5
92055-022
$6.22
