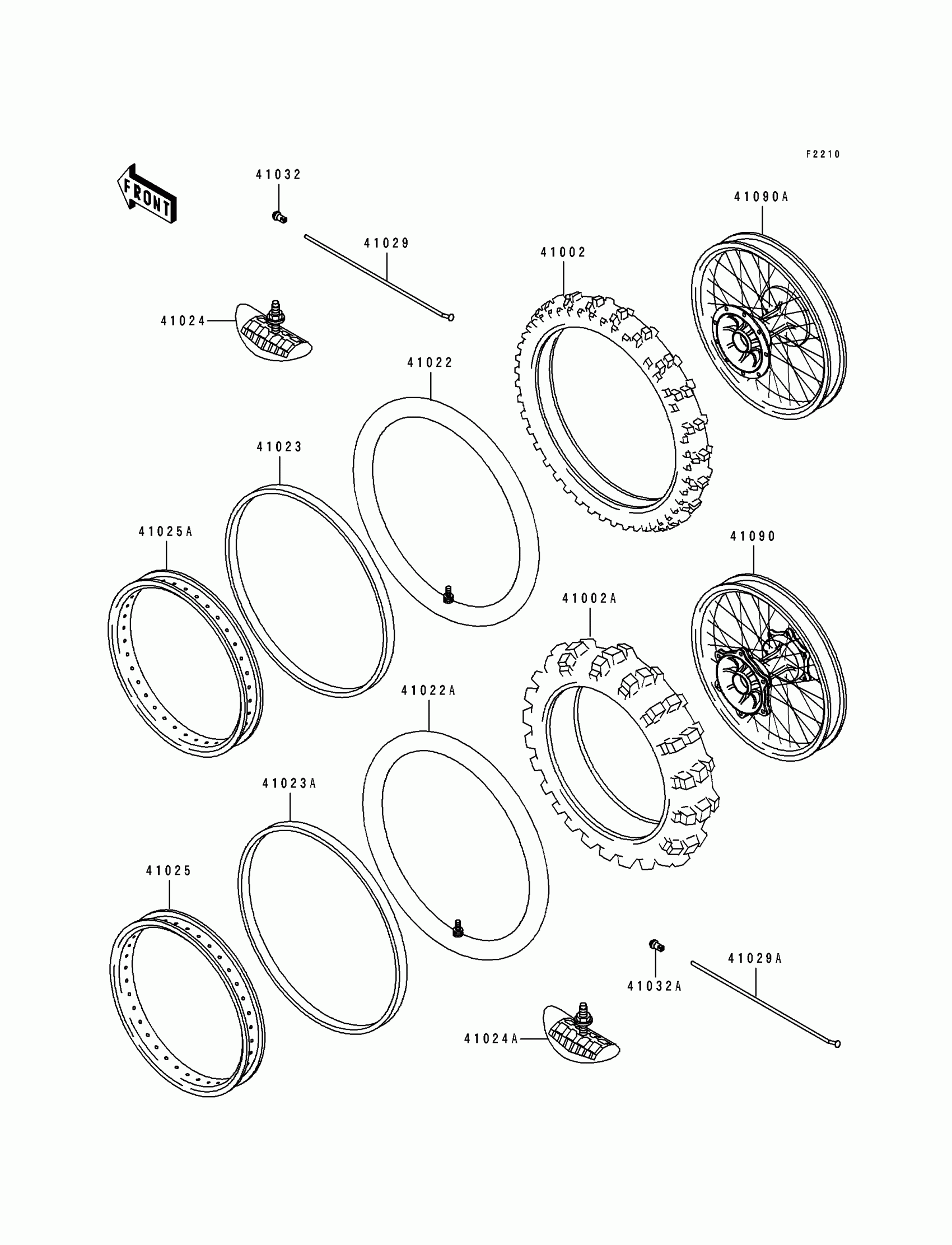

Kawasaki KX125 Tire Diagram

TIRE,FR,80/100-21 51M,K490J(D)

41002-1803

Unavailable

TIRE,RR,100/90-19 57M,K695(D)

41002-1812

$231.59

TUBE-TIRE,80/100-21(D)

41022-1118

$50.05

TUBE-TIRE,FR,100/90-19(D)

41022-1129

$50.05

BAND-RIM,80/100-21(D)

41023-1069

Unavailable

BAND-RIM,90-100/90-19(D)

41023-1074

$13.87

STOPPER-RIM,1.60-M(DUNLOP)

41024-010

$51.74

STOPPER-RIM,1.85-M(DUNLOP)

41024-011

$53.28

RIM,FR,1.60X21EFD

41025-1249

$205.36

RIM,RR,1.85X19EFD

41025-1250

Unavailable

SPOKE-INNER,FR,230MMX165D

41029-1197

$9.30

SPOKE-INNER,RR,202MMX160D

41029-1204

$7.22

NIPPLE-SPOKE

41032-1061

$4.55

NIPPLE-SPOKE

41032-1064

$4.76

WHEEL-SUB ASSY,FR

41090-1080

$1,124.29

WHEEL-SUB ASSY,RR

41090-1081

$1,033.75
