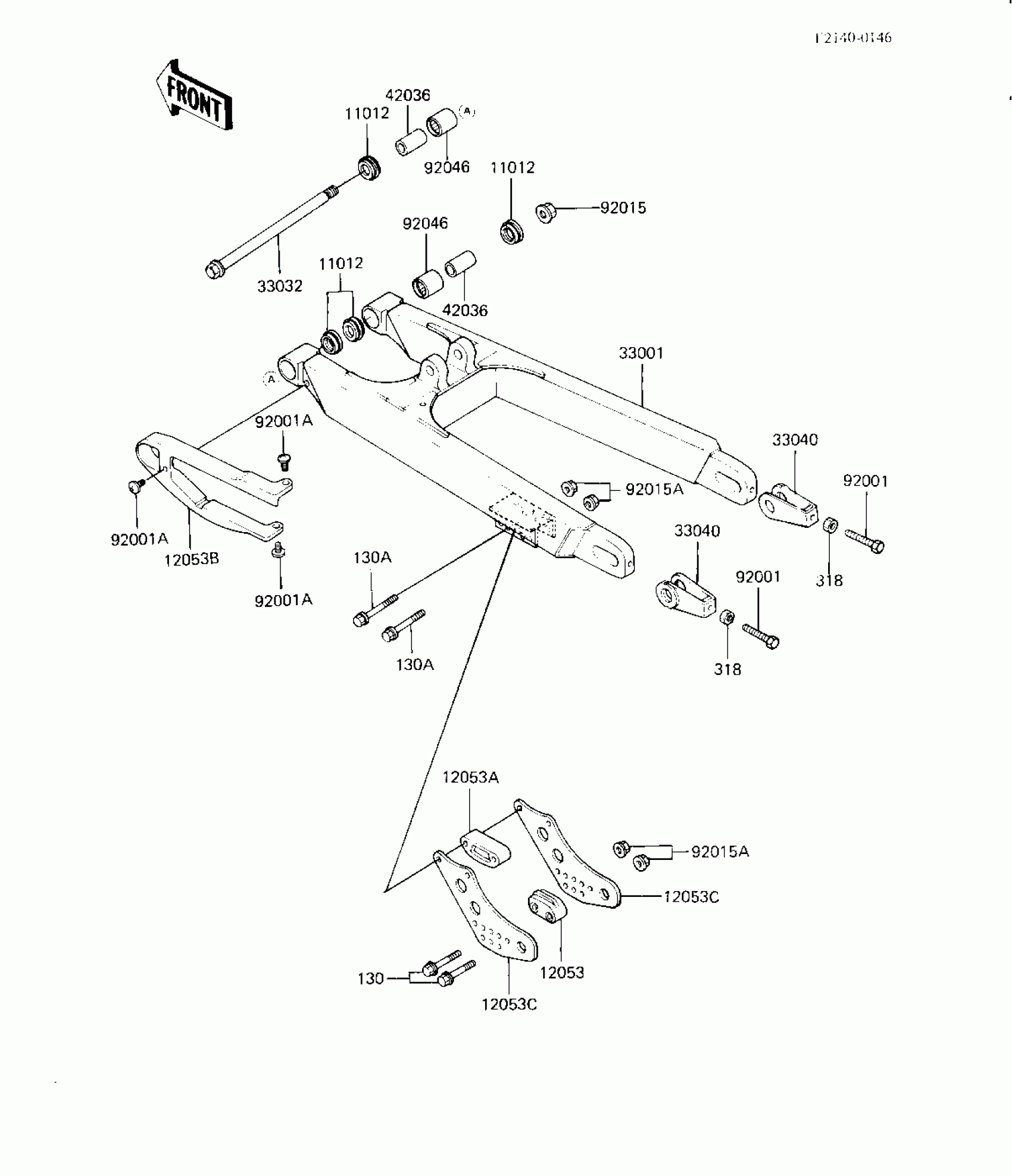

Kawasaki KX125 SWING ARM (KX125-B2) Diagram

Description

Price

11012

CAP,SWING ARM

11012-1259

$21.80

12053

GUIDE,CHAIN,REAR

12053-1011

Unavailable

12053A

GUIDE,CHAIN,REAR

12053-1039

Unavailable

12053B

GUIDE-CHAIN,FR

12053-1068

Unavailable

12053C

GUIDE-CHAIN,RR

12053-1073

Unavailable

33001

ARM-COMP-SWING

33001-1174

Unavailable

33032

SHAFT-SWING ARM

33032-1042

Unavailable

33040

ADJUSTER-CHAIN

33040-1022

$47.92

42036

SLEEVE,SWING ARM

42036-1064

$21.29

92001

BOLT,CHAIN ADJUSTER

92001-1027

Unavailable

92001A

SCREW,6X10,WHITE

92009-1286

$4.31

92015

NUT,14MM

92015-1407

$9.91

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92046

BRG,NEEDLE,HMK2030

92046-1031

Unavailable

130

BOLT,FLANGED,6X35

130H0635

$0.93

130A

BOLT-FLANGED,6X45

130G0645

$0.93

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable
