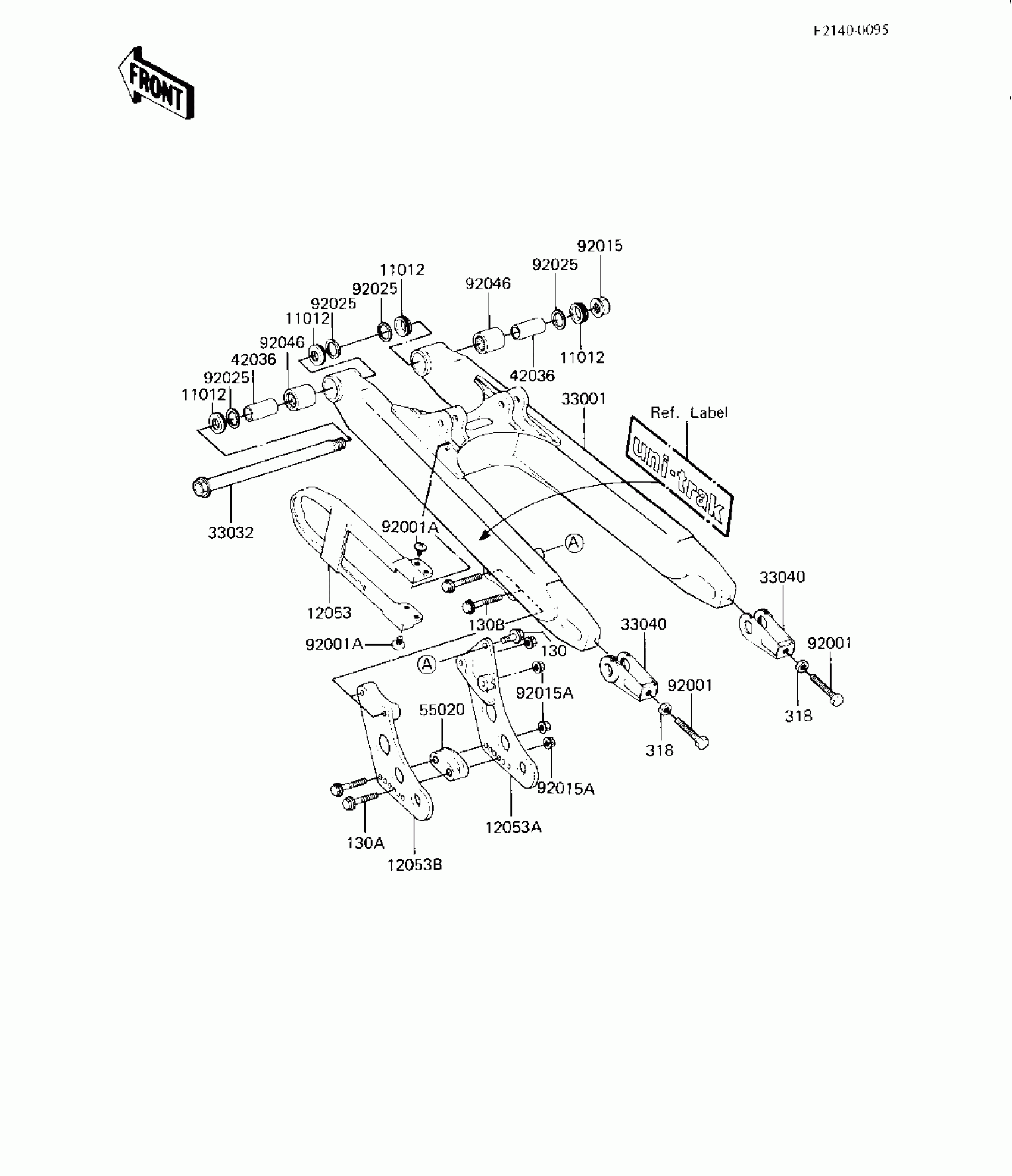

Kawasaki KX125 SWING ARM (KX125-B1) Diagram

Description

Price

11012

CAP

11012-1207

Unavailable

12053

GUIDE-CHAIN

12053-1062

Unavailable

12053A

GUIDE-CHAIN

12053-1063

Unavailable

12053B

GUIDE-CHAIN

12053-1064

Unavailable

33001

ARM-COMP-SWING

33001-1124

$505.34

33032

SHAFT-SWING ARM

33032-1042

Unavailable

33040

ADJUSTER,CHAIN

33040-4004

Unavailable

42036

SLEEVE,SWING ARM

42036-1056

Unavailable

55020

GUARD,CHAIN

55020-1060

Unavailable

92001

BOLT,CHAIN ADJUSTER

92001-1027

Unavailable

92001A

SCREW,6X10,WHITE

92009-1286

$4.31

92015

NUT,14MM

92015-1407

$9.91

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92025

SHIM,SWING ARM

92025-1116

Unavailable

92046

BRG,NEEDLE,HMK2030

92046-1031

Unavailable

130

BOLT,FLANGED,6X14

130G0614

$1.17

130A

BOLT-FLANGED,6X45

130G0645

$0.93

130B

BOLT-FLANGED,6X55

130G0655

$4.65

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable
