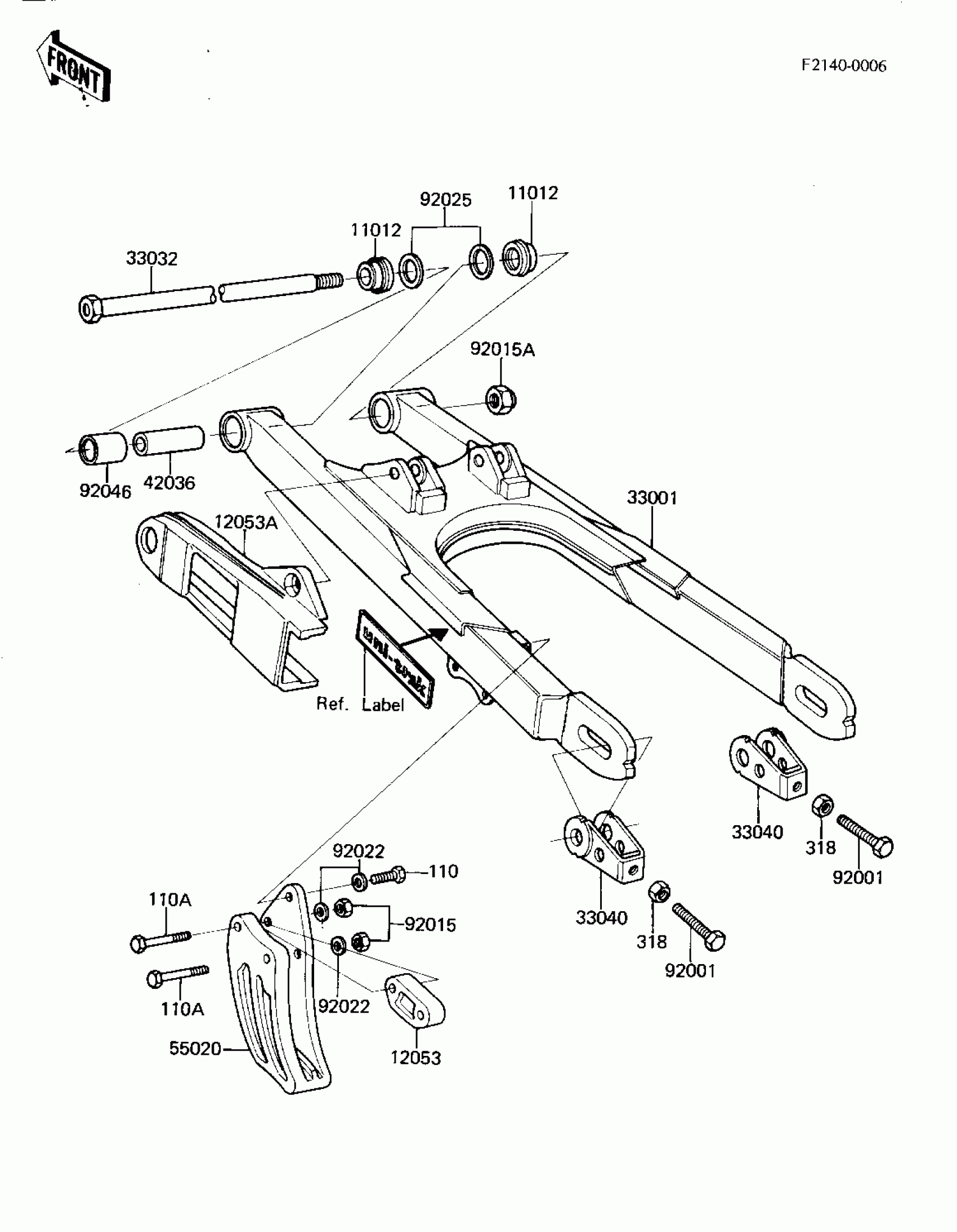

Kawasaki KX125 SWING ARM ('81 A7) Diagram

Description

Price

11012

CAP,SWING ARM

11012-1099

$29.79

12053

GUIDE,CHAIN,REAR

12053-1039

Unavailable

12053A

GUIDE,CHAIN,FRONT

12053-1046

Unavailable

33001

ARM,SWING

33001-1047

$415.46

33032

SHAFT-SWING ARM

33032-1020

$119.20

33040

ADJUSTER,CHAIN

33040-1012

$45.58

42036

SLEEVE,SWING ARM

42036-1031

Unavailable

55020

GUARD,CHAIN

55020-1038

Unavailable

92001

BOLT,CHAIN ADJUSTER

92001-1027

Unavailable

92015

NUT,LOCK,6MM

92019-008

$4.26

92015A

NUT-LOCK,14MM

92019-011

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92025

SHIM,SWING ARM

92025-1116

Unavailable

92046

BRG,NEEDLE,HMK2030

92046-1031

Unavailable

110

BOLT-UPSET,6X20

112G0620

$2.12

110A

BOLT-UPSET

112G0660

Unavailable

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable
