Description

Price

1

CAP,SWING ARM

11012-1099

$29.79

2

GUIDE,CHAIN,FRONT

12053-1046

Unavailable

3

ARM,SWING

33001-1047

$415.46

4

SLEEVE,SWING ARM

42036-1031

Unavailable

5

SHIM,SWING ARM

92025-1116

Unavailable

6

BRG,NEEDLE,HMK2030

92046-1031

Unavailable

7

SHAFT-SWING ARM

33032-1020

$119.20

8

NUT-LOCK,14MM

92019-011

Unavailable

9

NUT-HEX-SMALL,8MM

318G0800

Unavailable

10

ADJUSTER,CHAIN

33040-1012

$45.58

11

BOLT,CHAIN ADJUSTER

92001-1027

Unavailable

12

BOLT-UPSET,6X20

112G0620

$2.12

13

BOLT-UPSET

112G0660

Unavailable

14

GUIDE,CHAIN,REAR

12053-1039

Unavailable

15

GUARD,CHAIN

55020-1038

Unavailable

16

NUT,LOCK,6MM

92019-008

$4.26

17

WASHER,6.5X20X1.6

92022-125

$1.40

18

MARK

56018-1157

Unavailable

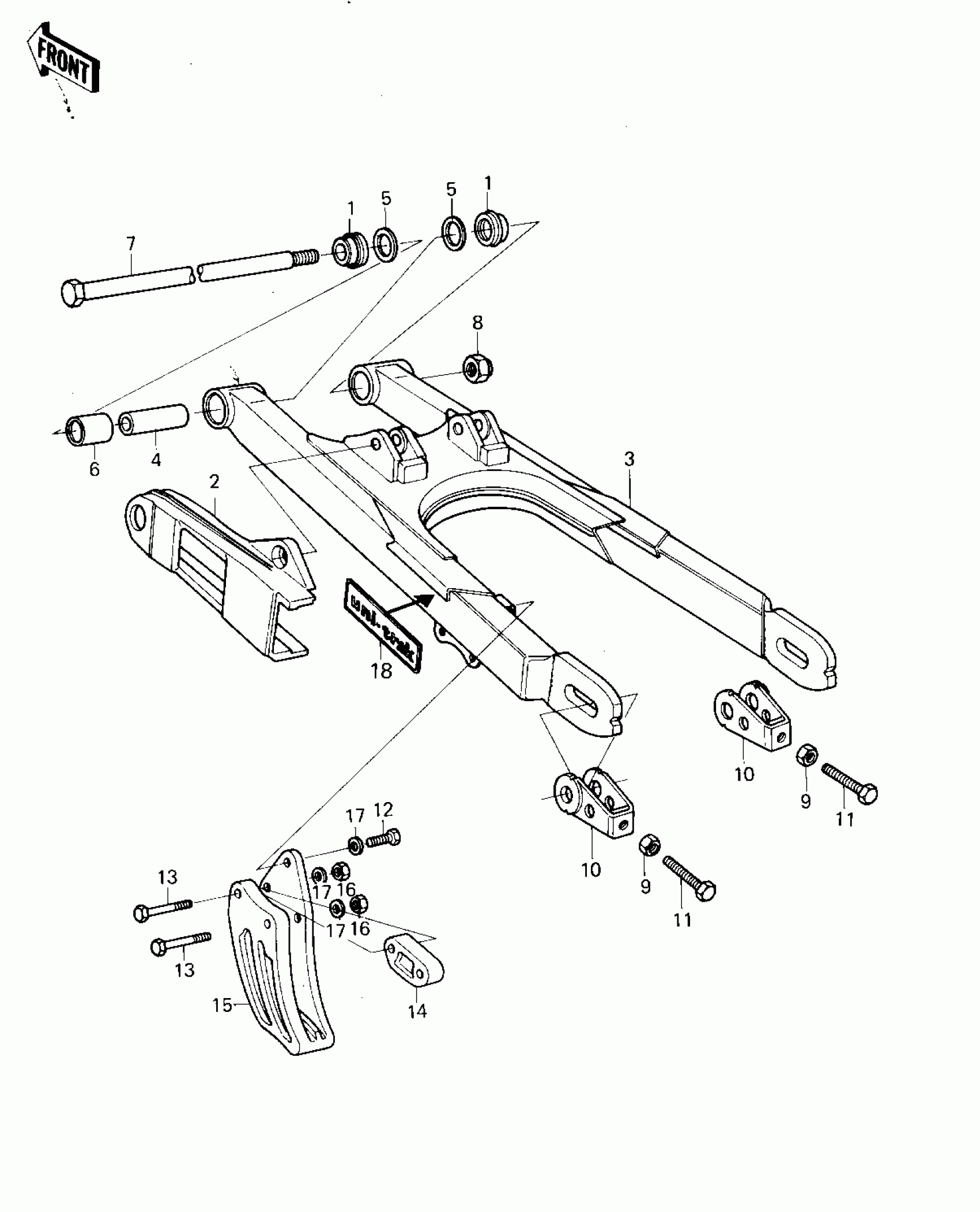

Kawasaki KX125 SWING ARM ('80 A6) Diagram

CAP,SWING ARM

GUIDE,CHAIN,FRONT

ARM,SWING

SLEEVE,SWING ARM

SHIM,SWING ARM

BRG,NEEDLE,HMK2030

SHAFT-SWING ARM

NUT-LOCK,14MM

NUT-HEX-SMALL,8MM

ADJUSTER,CHAIN

BOLT,CHAIN ADJUSTER

BOLT-UPSET,6X20

BOLT-UPSET

GUIDE,CHAIN,REAR

GUARD,CHAIN

NUT,LOCK,6MM

WASHER,6.5X20X1.6

MARK
