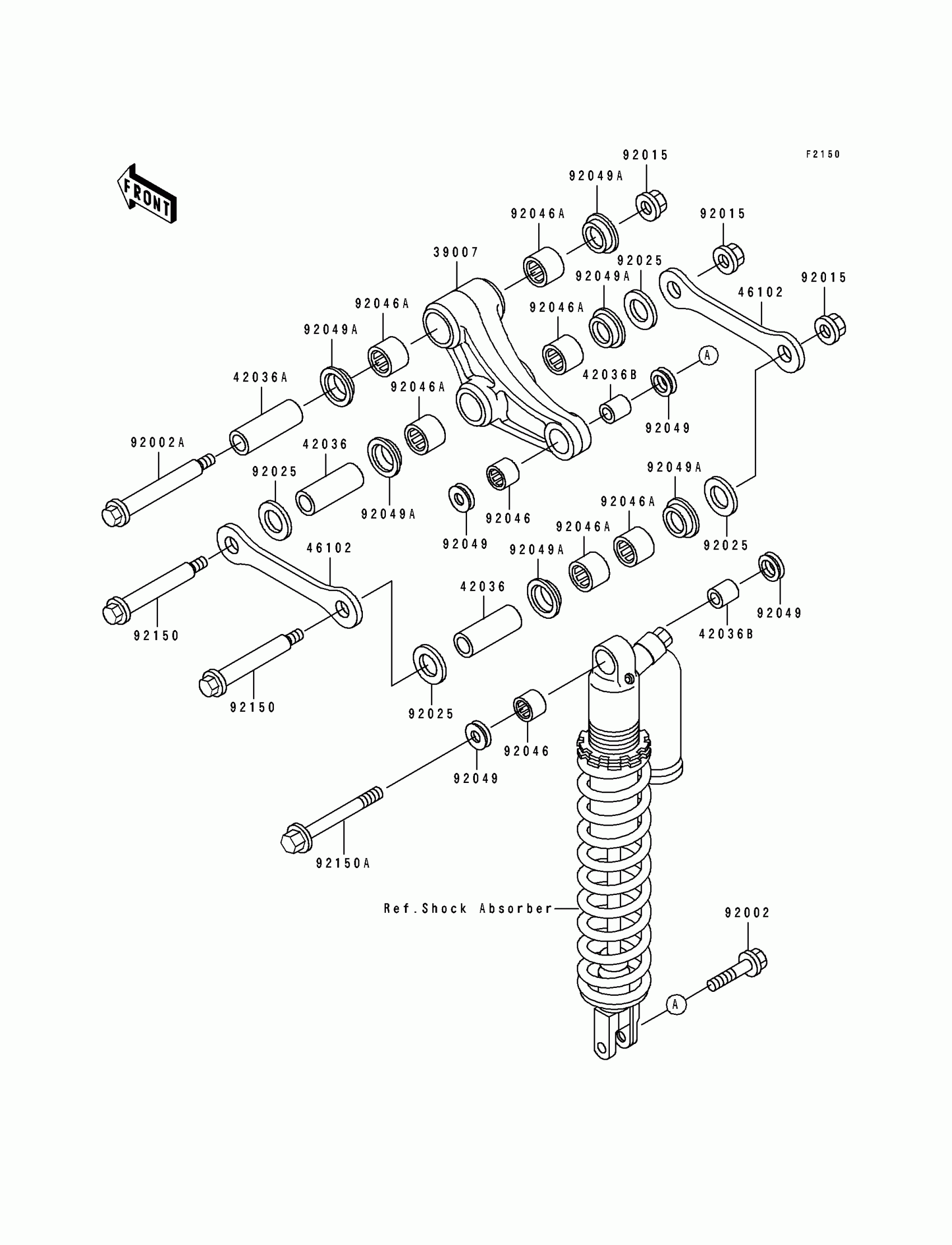

Kawasaki KX125 Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1213

$180.87

42036

SLEEVE,15X22X57

42036-1245

$21.29

42036A

SLEEVE,15X22X63

42036-1246

$26.04

42036B

SLEEVE,10X16X19

42036-1248

$9.91

46102

ROD,SUSPENSION

46102-1293

Unavailable

92002

BOLT,10X40

92002-1675

$12.35

92002A

BOLT,ARM,12MM

92002-1890

$23.18

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92025

SHIM,15.3X27.5X0.6

92025-1135

$4.38

92046

BEARING-NEEDLE,16BM2212

92046-1192

$18.21

92046A

BEARING-NEEDLE,22BM2816

92046-1216

$22.09

92049

SEAL-OIL

92049-1330

$12.29

92049A

SEAL-OIL,MHA22 28 5.7F-1

92049-1402

$10.39

92150

BOLT,ROD,12X93

92150-1337

$29.71

92150A

BOLT,FLANGED,10X42

92150-1571

$11.51
