Description

Price

13070

GUIDE,SPRING

13070-1058

Unavailable

39093

PIPE-COMP-SUSP

39093-1081

$111.16

43089

CYLINDER-SHOCKABSORBE

43089-1033

$389.24

45014

SHOCK ABSBR RR

45014-1156

$1,039.18

46102

ROD,REARSHOCK

46102-1043

$497.59

52001

TANK-OIL,REARSHOCK

52001-1013

$287.25

59266

JOINT-BALL

59266-1051

Unavailable

92015

NUT,SPRING ADJUST

92015-1186

$60.00

92015A

NUT,SPRING ADJUST LOC

92015-1187

$51.03

92022

WASHER,SPRING

92022-1235

$10.34

92022A

WASHER,REAR SHOCK

92022-1297

Unavailable

92027

COLLAR,REAR SHOCK

92027-1417

$12.23

92028

BUSHING,REAR SHOCK

92028-1127

Unavailable

92033

RING-SNAP,AIR VALVE

92033-1061

$3.80

92033A

RING-SNAP,REAR SHOCK

92033-1076

$3.52

92049

SEAL-OIL,REARSHOCK

92049-1093

Unavailable

92055

"0" RING

92055-1099

Unavailable

92055A

"0" RING,REAR SHOCK

92055-1102

$6.00

92055B

"0" RING,REAR SHOCK

92055-1103

Unavailable

92055C

RING-O,REAR SHOCK

92055-1121

Unavailable

92081

SPRING,REARSHOCK,STD

92081-1467

$283.75

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1008

$34.49

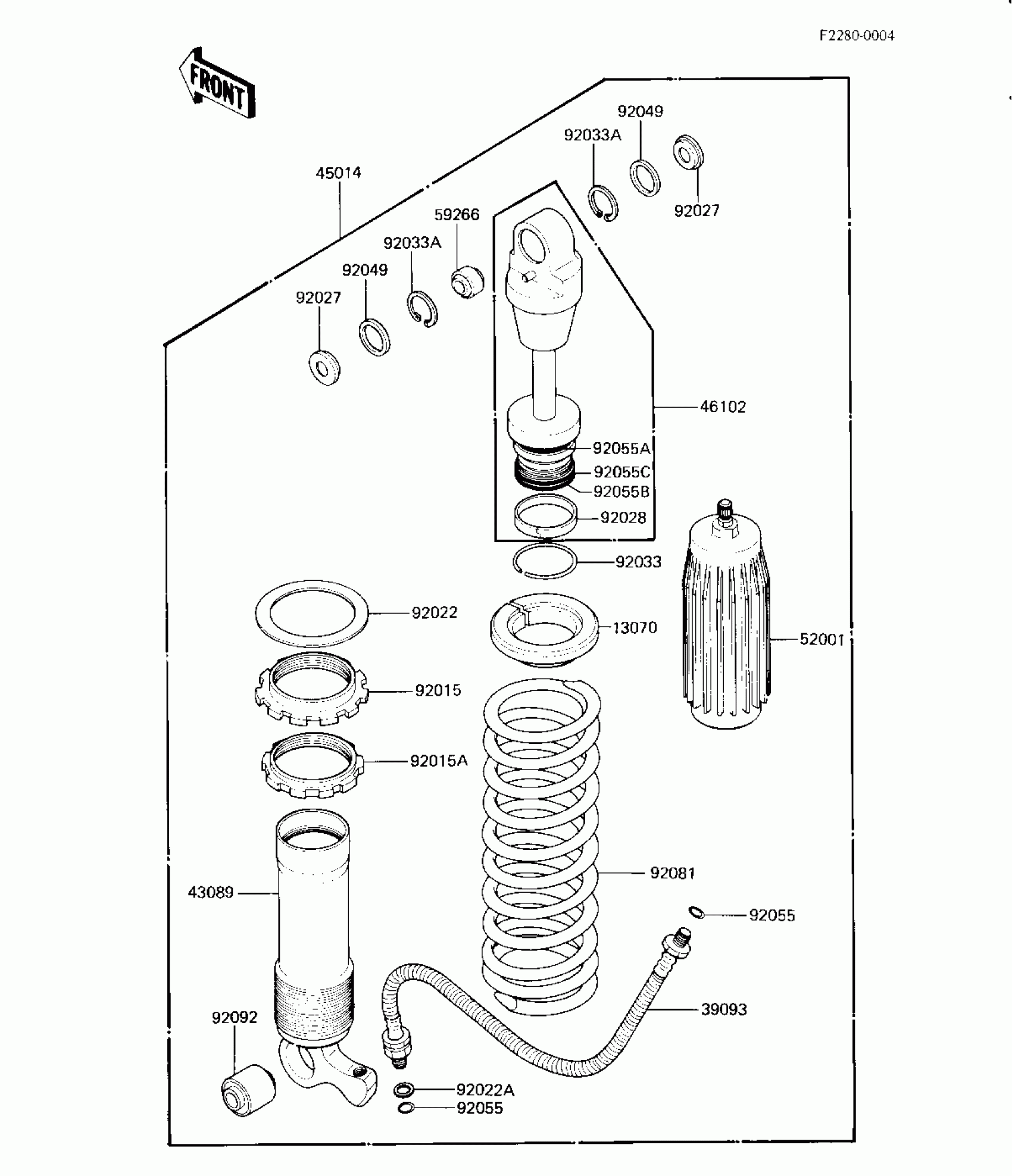

Kawasaki KX125 SHOCK ABSORBER (KX125-B1) Diagram

GUIDE,SPRING

PIPE-COMP-SUSP

CYLINDER-SHOCKABSORBE

SHOCK ABSBR RR

ROD,REARSHOCK

TANK-OIL,REARSHOCK

JOINT-BALL

NUT,SPRING ADJUST

NUT,SPRING ADJUST LOC

WASHER,SPRING

WASHER,REAR SHOCK

COLLAR,REAR SHOCK

BUSHING,REAR SHOCK

RING-SNAP,AIR VALVE

RING-SNAP,REAR SHOCK

SEAL-OIL,REARSHOCK

"0" RING

"0" RING,REAR SHOCK

"0" RING,REAR SHOCK

RING-O,REAR SHOCK

SPRING,REARSHOCK,STD

BUSHING-RUBBER,SHOCKABSORBER
