Description

Price

13070

GUIDE,SPRING

13070-1041

Unavailable

13070A

GUIDE,SPRING

13070-1042

Unavailable

16126

VALVE ASSY,AIR

16126-1003

Unavailable

39093

PIPE-COMP-SUSP

39093-1053

$101.68

43089

CYLINDER-SHOCKABSORBE

43089-1022

$278.00

45014

SHOCK ABSBR RR

45014-1087

$512.92

46102

ROD

46102-1026

$509.40

52001

TANK-OIL

52001-1010

$75.67

55020

GUARD,AIR TANK

55020-1044

Unavailable

92015

NUT,SPRING ADJUST

92015-1139

$30.21

92015A

NUT,SPRING ADJUST

92015-1140

Unavailable

92022

WASHER,SPRING

92022-1235

$10.34

92028

BUSHING,REAR SHOCK

92028-1127

Unavailable

92033

RING-SNAP,AIR VALVE

92033-1061

$3.80

92055

"0" RING,AIR VALVE

92055-1018

Unavailable

92055A

"0" RING

92055-1099

Unavailable

92055B

"0" RING,REAR SHOCK

92055-1102

$6.00

92055C

"0" RING,REAR SHOCK

92055-1103

Unavailable

92081

SPRING

92081-1298

$180.64

92081A

SPRING

92081-1319

$180.64

92081B

SPRING,REARSHOCK,STD

92081-1338

$310.84

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1008

$34.49

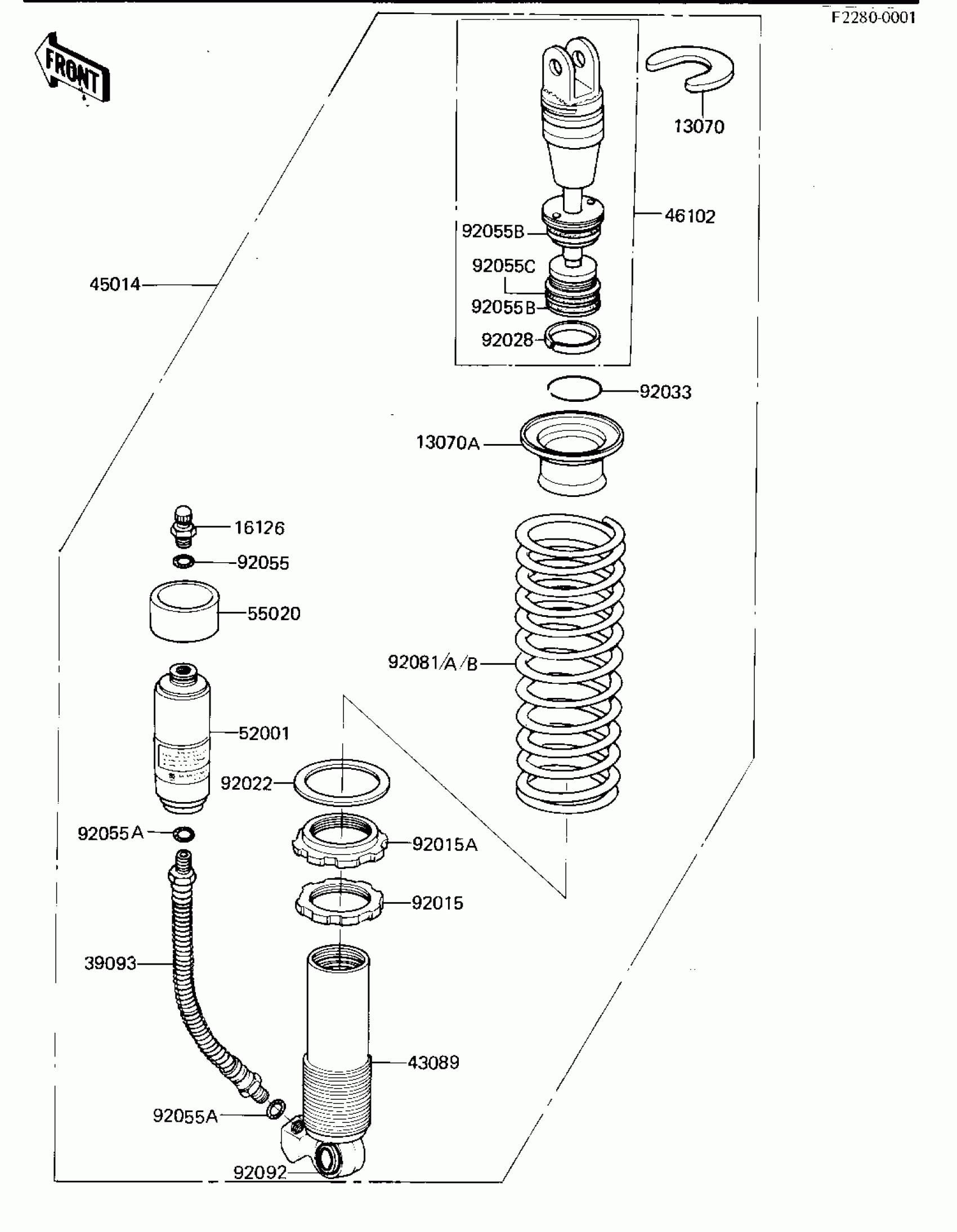

Kawasaki KX125 SHOCK ABSORBER ('81 A7) Diagram

GUIDE,SPRING

GUIDE,SPRING

VALVE ASSY,AIR

PIPE-COMP-SUSP

CYLINDER-SHOCKABSORBE

SHOCK ABSBR RR

ROD

TANK-OIL

GUARD,AIR TANK

NUT,SPRING ADJUST

NUT,SPRING ADJUST

WASHER,SPRING

BUSHING,REAR SHOCK

RING-SNAP,AIR VALVE

"0" RING,AIR VALVE

"0" RING

"0" RING,REAR SHOCK

"0" RING,REAR SHOCK

SPRING

SPRING

SPRING,REARSHOCK,STD

BUSHING-RUBBER,SHOCKABSORBER
