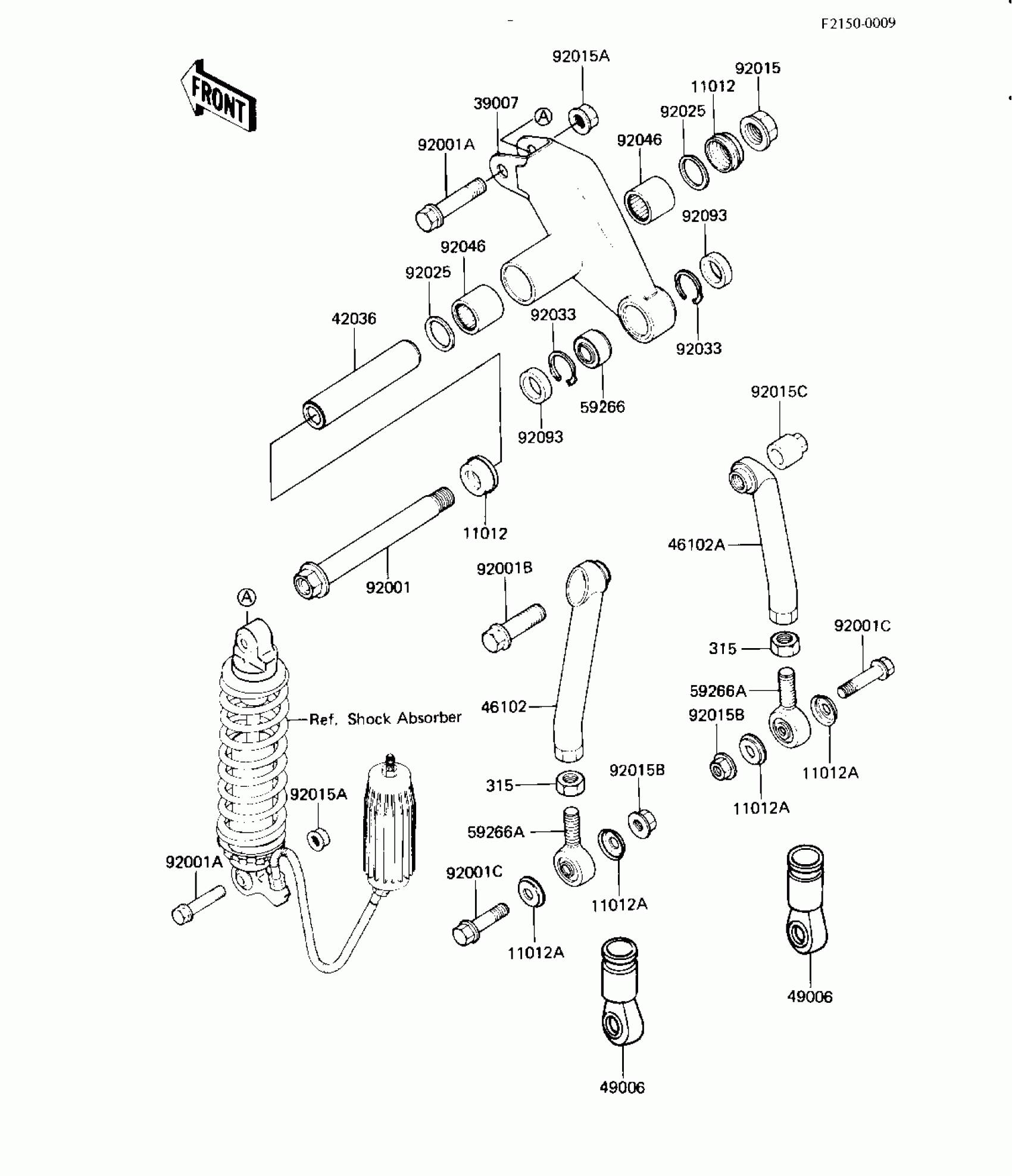

Kawasaki KX125 REAR SUSPENSION (KX125-B1) Diagram

Description

Price

11012

CAP

11012-1203

Unavailable

11012A

CAP

11012-1208

Unavailable

39007

ARM-SUSP

39007-1009

$162.12

42036

SLEEVE,UNI TRAK

42036-1054

Unavailable

46102

ROD,L.H

46102-1037

$119.01

46102A

ROD,R.H

46102-1038

$119.01

49006

BOOT,UNITRAK

49006-1049

Unavailable

59266

JOINT-BALL

59266-1006

Unavailable

59266A

JOINT-BALL

59266-1007

$76.66

92001

BOLT,16X156

92001-1495

$67.69

92001A

BOLT,12X55

92001-1497

Unavailable

92001B

BOLT,14X46

92001-1498

Unavailable

92001C

BOLT,FLANGED,10X44

92001-1499

$5.52

92015

NUT,16MM

92015-1015

Unavailable

92015A

NUT,FLANGED,12MM

92015-1156

Unavailable

92015B

NUT,FLANGED,10MM

92015-1415

$4.69

92015C

NUT,UNITRAK LINK

92015-1123

Unavailable

92025

SHIM

92025-1229

Unavailable

92033

RING,SNAP

92033-1064

Unavailable

92046

BEARING-NEEDLE,TA2428Z

92046-1041

Unavailable

92093

SEAL

92093-1069

$7.28

315

NUT-HEX-FINE

315G1200

$1.17
