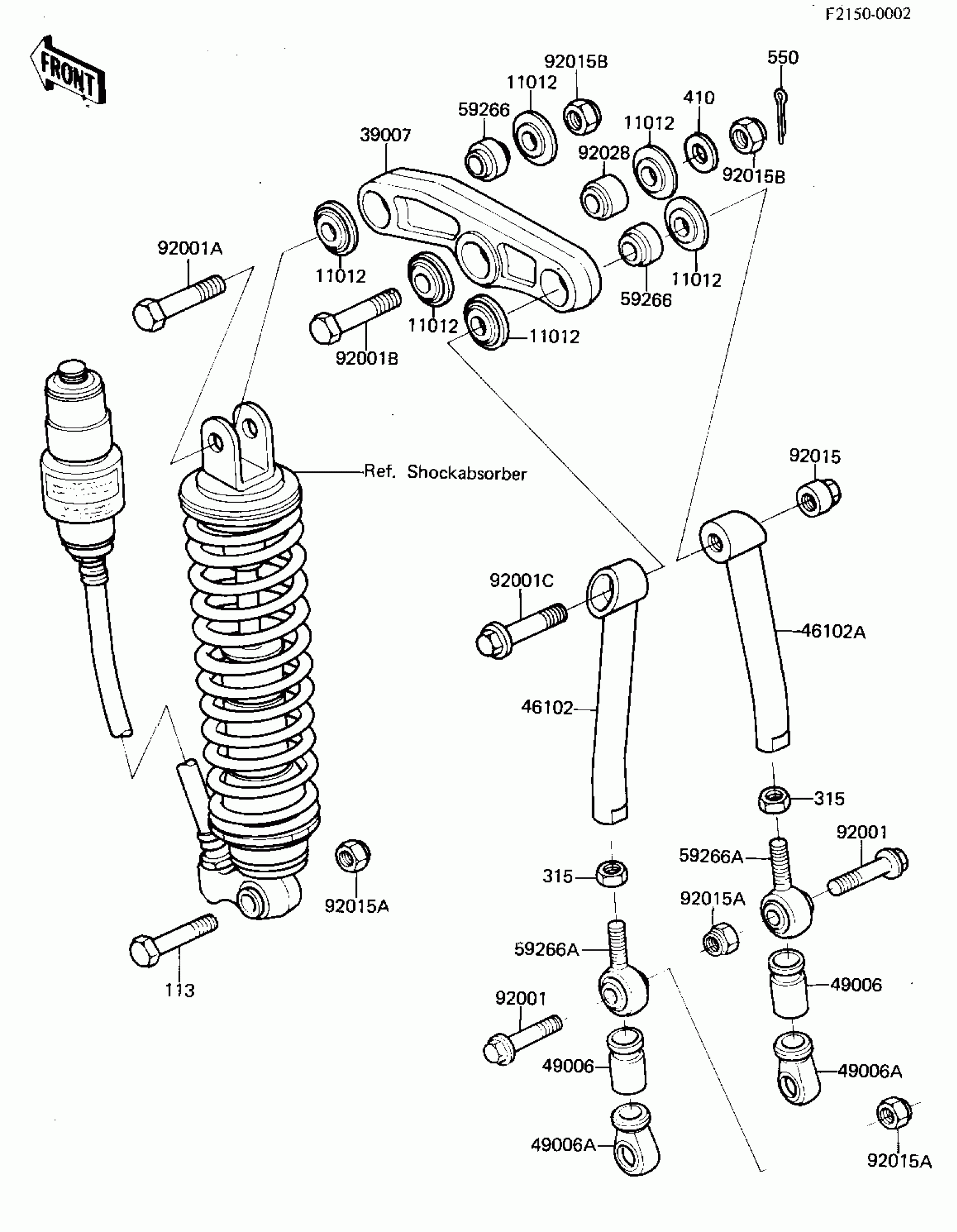

Kawasaki KX125 REAR SUSPENSION ('81 A7) Diagram

Description

Price

11012

CAP,SUSPENSION ARM

11012-1117

Unavailable

39007

ARM,SUSPENSION

39007-1002

$107.22

46102

ROD,UNITRAK,LH

46102-1020

$61.87

46102A

ROD,UNITRAK,LH

46102-1021

$66.71

49006

BOOT,BALL JOINT

49006-1045

Unavailable

49006A

BOOT,BALL JOINT

49006-1046

Unavailable

59266

JOINT,BALL,SUSPENSIO

59266-1001

$168.76

59266A

JOINT,BALL,SUSPENSIO

59266-1002

Unavailable

92001

BOLT,HEX HEAD,12X48

92001-1297

Unavailable

92001A

BOLT,HEX HEAD,14X50

92001-1317

Unavailable

92001B

BOLT,HEX HEAD,14X60

92001-1335

Unavailable

92001C

BOLT,14X60

92001-1344

Unavailable

92015

NUT,UNITRAK LINK

92015-1123

Unavailable

92015A

NUT-LOCK,12MM

92019-009

$7.29

92015B

NUT-LOCK,14MM

92019-011

Unavailable

92028

BUSHING,SUSPENSION A

92028-1087

Unavailable

113

BOLT,HEX HEAD,12X55

113P1255A

$6.40

315

NUT-HEX-FINE

315B1200

$0.93

410

WASHER-PLAIN-SMALL,14MM

410B1400

$2.01

550

PIN-COTTER,2.5X25

550D2525

$1.26
