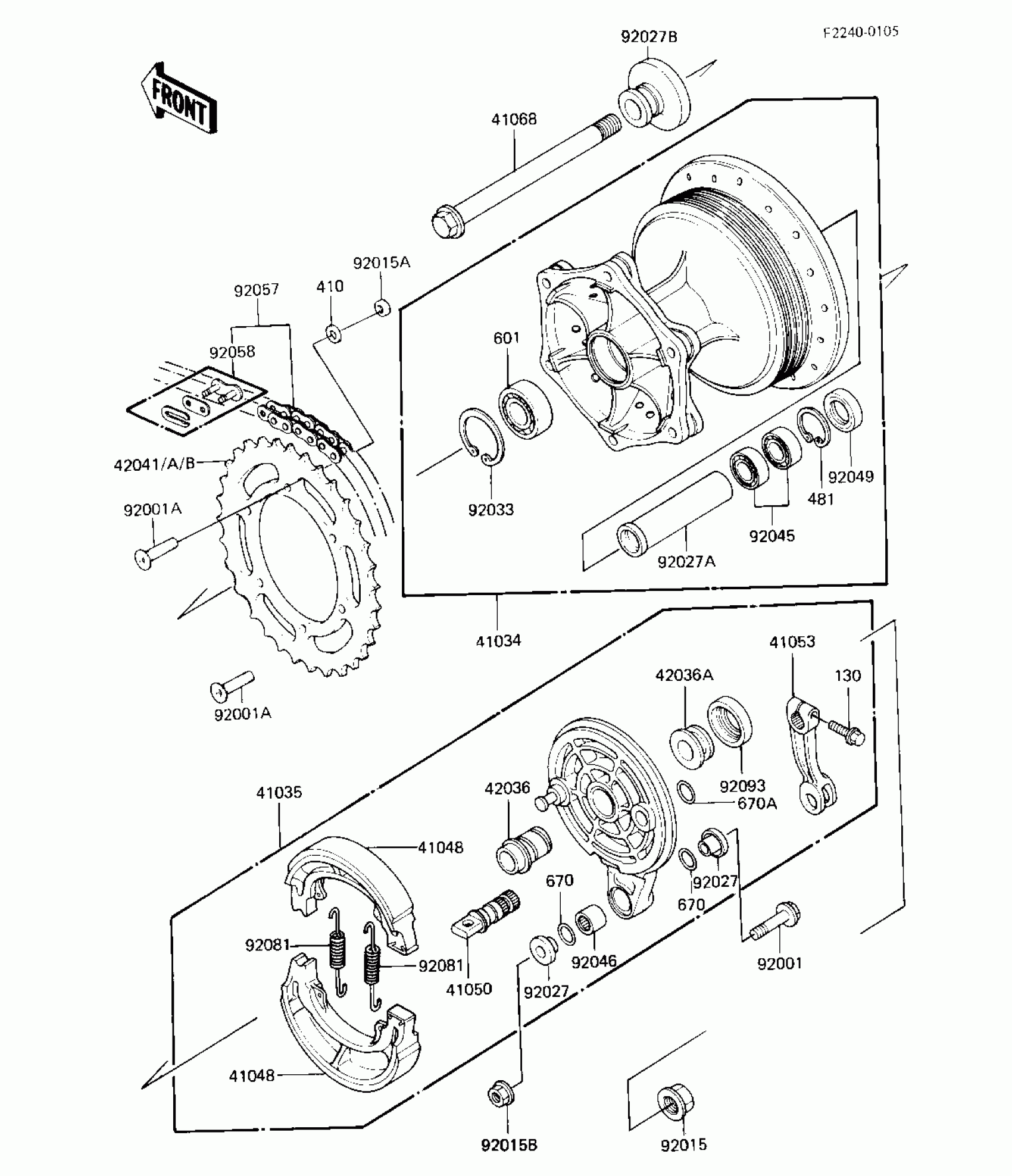

Kawasaki KX125 REAR HUB/BRAKE/CHAIN (KX125-B2) Diagram

#

Description
Price

41034

DRUM-ASSY,RR

41034-5002

$327.63

41035

PANEL-ASSY-BRAKE,RR

41035-1104

$286.24

41048

SHOE-BRAKE

42019-013

Unavailable

41050

CAM-BRAKE,REAR

41050-1022

$49.44

41053

LEVER-BRAKE CAM,REAR

41053-1029

Unavailable

41068

AXLE,RR,L=264

41068-1076

$70.47

42036

SLEEVE,RR BRAKE,LH,L=

42036-1070

$72.36

42036A

SLEEVE,RR BRAKE,RH,L=

42036-1071

$25.68

42041

SPROCKET-HUB,50T,AL

42041-1255

Unavailable

42041A

SPROCKET-HUB,51T,AL

42041-1104

Unavailable

42041B

SPROCKET-HUB,49T,AL

42041-1256

$110.77

92001

BOLT,FLANGED,8X38

92001-1178

$10.62

92001A

BOLT

92001-1521

$11.66

92015

NUT,16MM

92015-1015

Unavailable

92015A

NUT,8MM

92015-1134

$8.15

92015B

NUT,8MM

92015-1143

$0.65

92027

COLLAR,L=11.5

92027-1040

Unavailable

92027A

COLLAR,REAR DRUM,L=10

92027-1459

$90.35

92027B

COLLAR,RR AXLE,LH

92027-1460

$24.85

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6903/2A

92045-1053

$26.91

92046

BEARING-NEEDLE,HK1216LL

92046-1009

$18.45

92049

SEAL-OIL,BJN22325

92049-1103

Unavailable

92057

CHAIN,DRIVE,DID520DSX114L

92057-1317

Unavailable

92058

JOINT-CHAIN,DRIVE

92058-1013

Unavailable

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

92093

OIL SEAL

92093-1004

Unavailable

130

BOLT-FLANGED,6X22

130G0622

$1.26

410

WASHER PLAIN 8MM

410B0800

$0.93

481

CIRCLIP-TYPE-C,30MM

481J3000

$1.42

601

BEARING-BALL,#6004UC3

601B6004U

$37.11

670

O RING,11MM

670B2011

$1.28

670A

O RING,12MM

670B2012

$3.23
