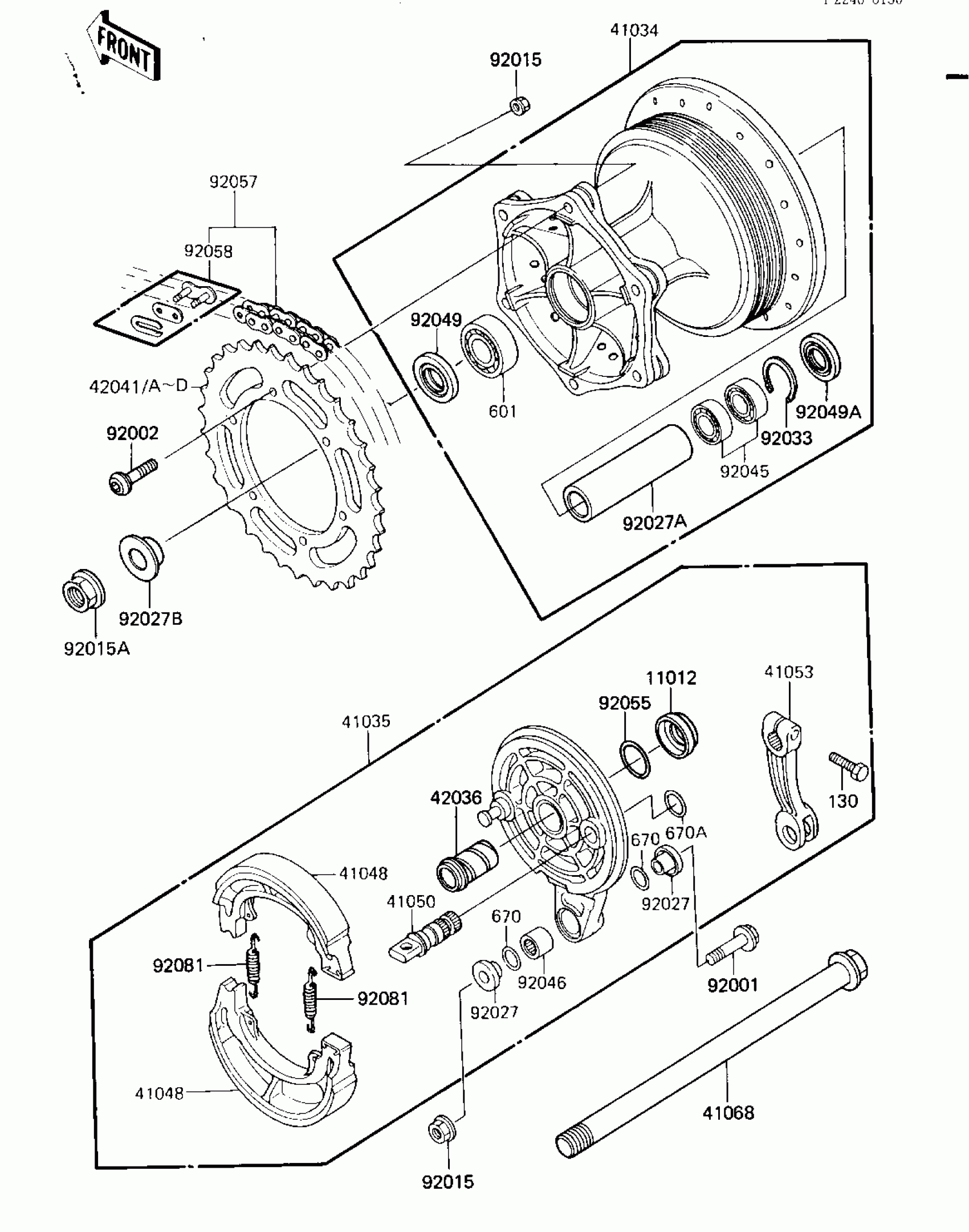

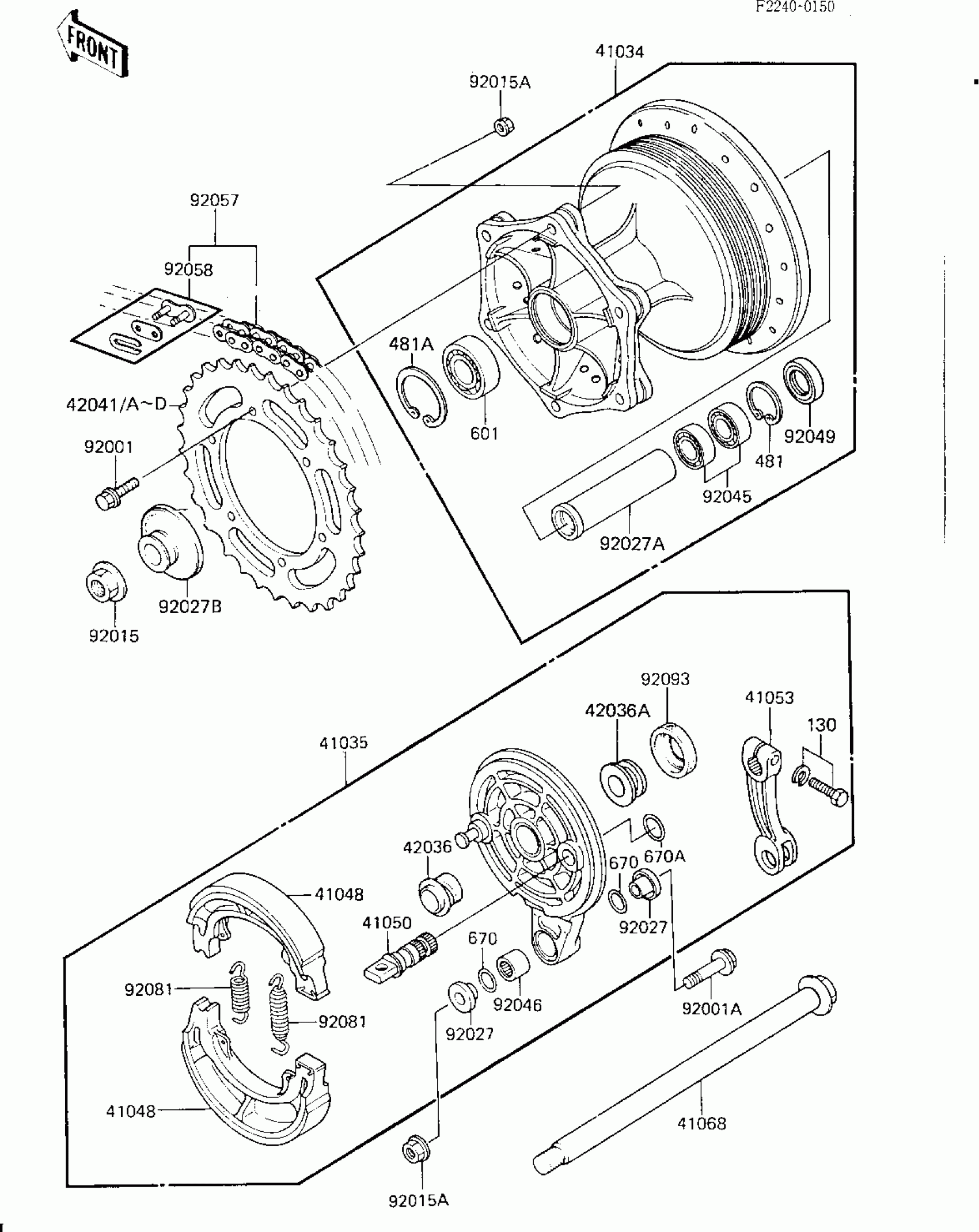

Kawasaki KX125 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

41034

DRUM-ASSY,REAR BRAKE

41034-1108

$807.42

41035

PANEL-ASSY-BRAKE,RR

41035-1161

Unavailable

41048

SHOE-BRAKE

42019-013

Unavailable

41050

CAM-BRAKE,REAR

41050-1022

$49.44

41053

LEVER-BRAKE CAM,REAR

41053-1029

Unavailable

41068

AXLE,RR,L=283

41068-1166

$148.69

42036

SLEEVE,RR BRAKE,LH,L=

42036-1070

$72.36

42036A

SLEEVE,RR BRAKE,L=13.

42036-1110

$29.39

42041

REAR SPROCKET,52T

42041-1044

$218.62

42041A

SPROCKET-HUB,51T

42041-1079

$111.88

42041B

SPROCKET-HUB,48T

42041-1125

$134.39

42041C

SPROCKET-HUB,50T

42041-1132

$120.61

42041D

SPROCKET-HUB,49T

42041-1183

$115.46

92001

BOLT,HEX HEAD,8X32

92001-1040

Unavailable

92001A

BOLT

92001-1578

$8.19

92015

NUT,16MM

92015-1015

Unavailable

92015A

NUT,8MM

92015-1143

$0.65

92027

COLLAR,L=11.5

92027-1040

Unavailable

92027A

COLLAR,REAR DRUM,L=10

92027-1459

$90.35

92027B

COLLAR,AXLE

92027-1531

$52.74

92045

BEARING-BALL,6903/2A

92045-1053

$26.91

92046

BEARING-NEEDLE,HK1216LL

92046-1009

$18.45

92049

SEAL-OIL,BJN22325

92049-1103

Unavailable

92057

CHAIN,DRIVE,DID520DS

92057-1167

$205.65

92058

JOINT-CHAIN,DRIVE

92058-1013

Unavailable

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

92093

OIL SEAL

92093-1004

Unavailable

130

BOLT-FLANGED,6X22

130G0622

$1.26

481

CIRCLIP-TYPE-C,30MM

481J3000

$1.42

481A

RING-SNAP,42MM

92033-1041

$6.16

601

BEARING-BALL,#6004UC3

601B6004U

$37.11

670

O RING,11MM

670B2011

$1.28

670A

O RING,12MM

670B2012

$3.23
