Description

Price

14079

HOLDER-ASSY,REAR CALIPER

14079-1070

$166.48

32085

STOPPER,PAD

32085-1315

$10.35

41080

DISC,RR

41080-1245

$336.09

41080A

DISC,RR

41080-1294

$232.35

43020

PISTON-COMP-BRAKE

43020-1099

$57.35

43041

CALIPER-ASSY,RR

43041-1482

Unavailable

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE

43082-1137

Unavailable

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

55020

GUARD,CALIPER,P.WHITE

55020-1323-6F

$34.18

92002

BOLT,SOCKET,8X25

92002-1442

$5.05

92009

SCREW,6X14

92009-1546

$4.80

92043

PIN,HANGER

92043-1416

$18.57

92049

SEAL-OIL,PISTON

92049-1331

$9.28

92093

SEAL,PISTON

92093-1272

$19.45

92144

SPRING,PAD

92144-1364

$16.93

92150

BOLT,FLANGED,6X16

92150-1506

$5.00

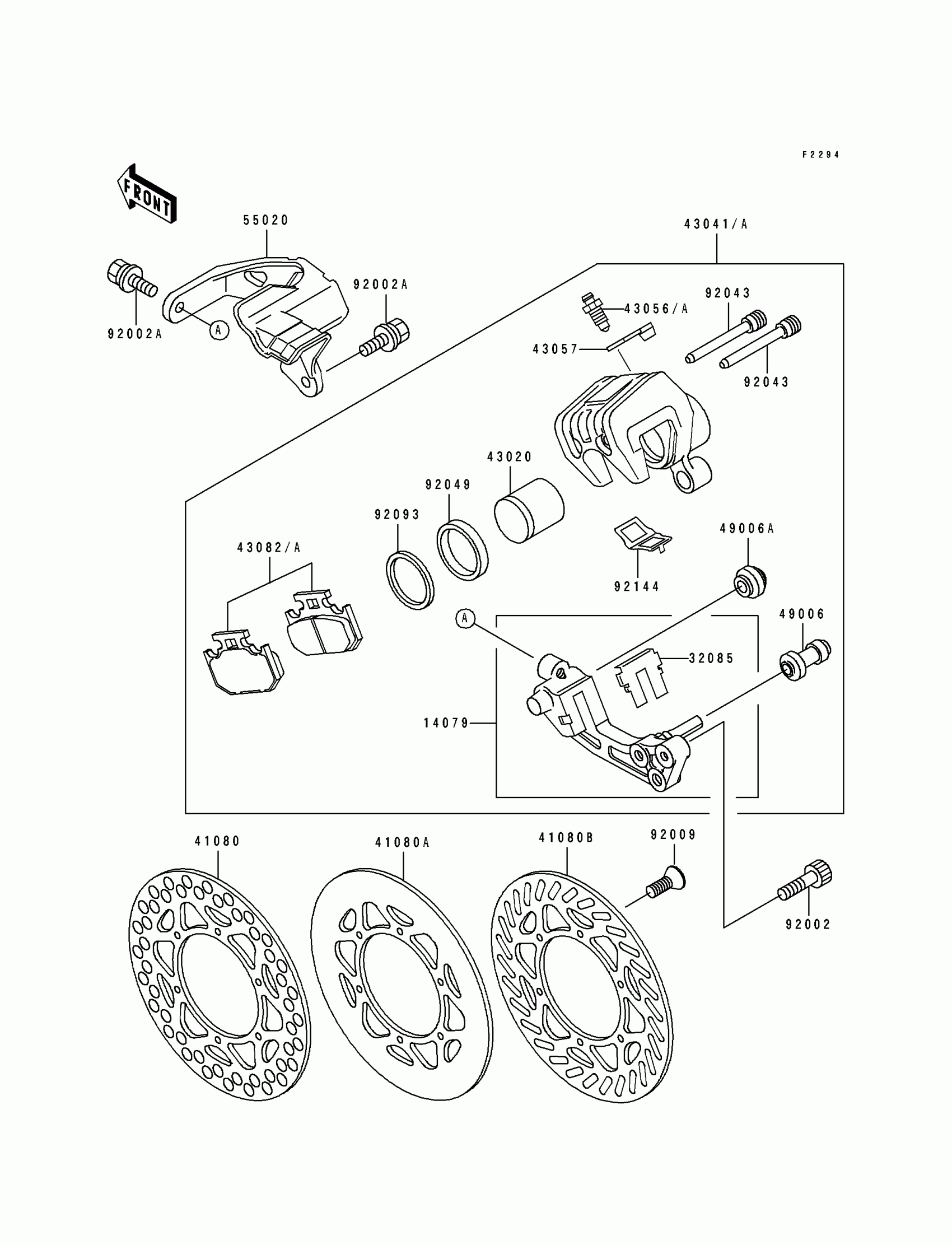

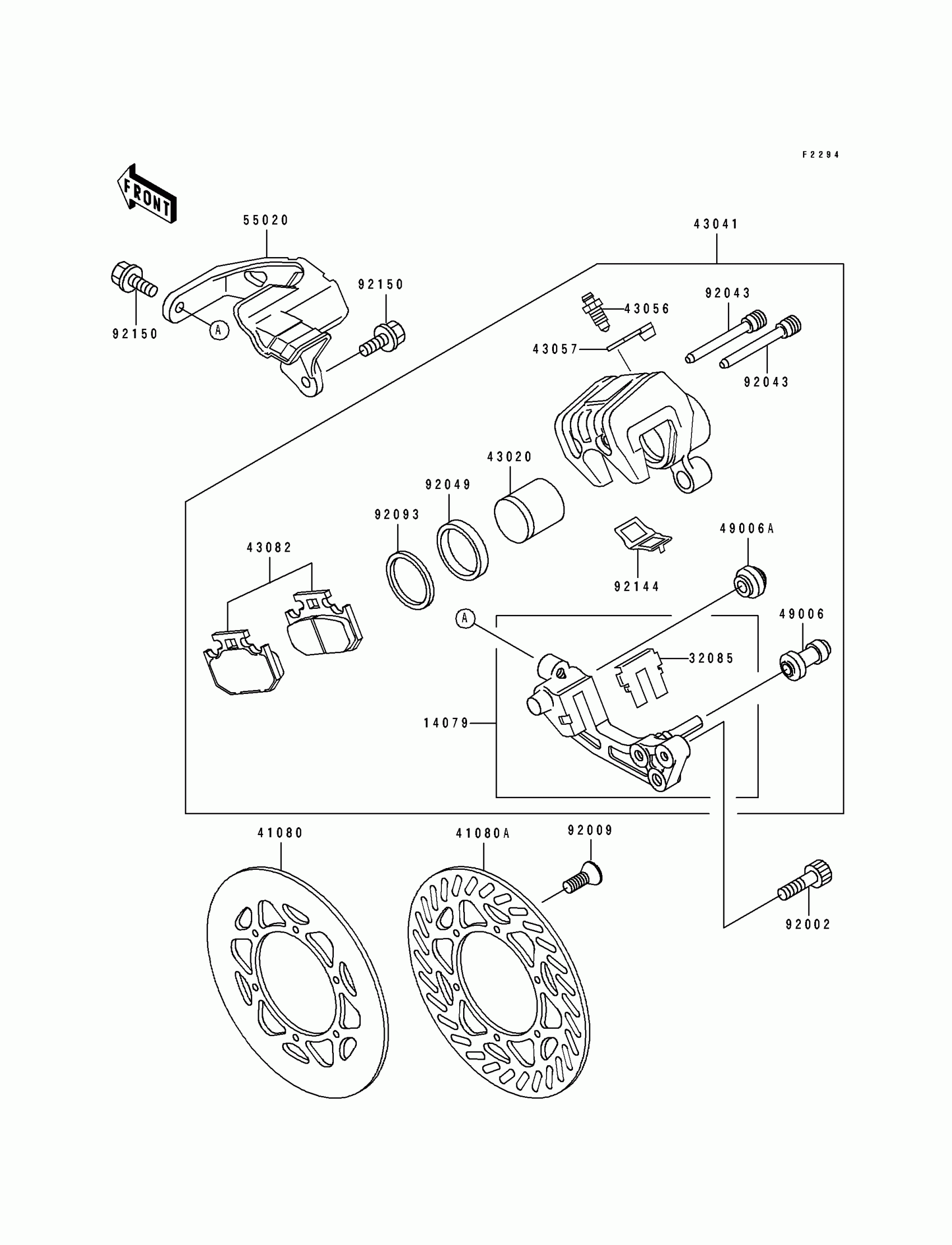

Kawasaki KX125 Rear Caliper Diagram

HOLDER-ASSY,REAR CALIPER

STOPPER,PAD

DISC,RR

DISC,RR

PISTON-COMP-BRAKE

CALIPER-ASSY,RR

BREATHER

CAP-BREATHER

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

GUARD,CALIPER,P.WHITE

BOLT,SOCKET,8X25

SCREW,6X14

PIN,HANGER

SEAL-OIL,PISTON

SEAL,PISTON

SPRING,PAD

BOLT,FLANGED,6X16
