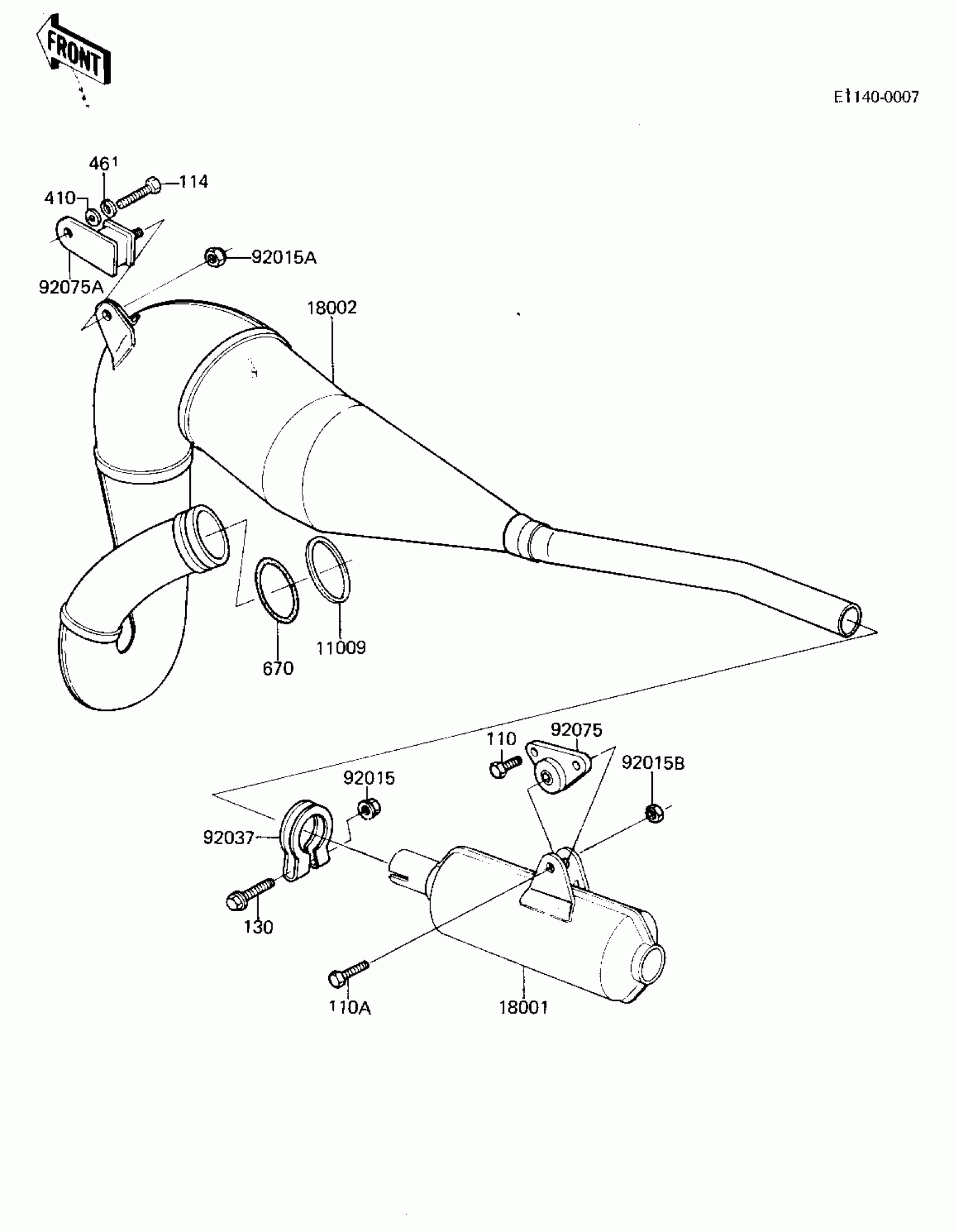

Kawasaki KX125 MUFFLER ('81 A7) Diagram

Description

Price

11009

GASKET,EXHAUST PIPE

11009-1123

Unavailable

18001

MUFFLER ASSY

18001-1105

Unavailable

18002

KX125 A6 POWER PIPE

18002-1143

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK,8MM

92015-1124

$5.42

92015B

NUT,LOCK,6MM

92019-008

$4.26

92037

CLAMP,MUFFLER

92037-1169

Unavailable

92075

DAMPER RUBBER

92075-1046

Unavailable

92075A

DAMPER,MUFFLER FITING

92075-1060

Unavailable

110

BOLT-UPSET

112G0618

$1.01

110A

BOLT-UPSET

112G0625

$3.62

114

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

130

BOLT,FLANGED,6X35

130H0635

$0.93

410

WASHER PLAIN 8MM

410B0800

$0.93

461

WASHER SPRING 8MM

461F0800

$0.40

670

O RING,45MM

670E3045

$18.69
