Description

Price

11009

GASKET,EXHAUST PIPE

11009-1995

$9.03

18020

BAFFLE

18020-1176

$129.56

18046

WOOL,L=110

18046-1182

Unavailable

18046A

WOOL,L=200

18046-1183

Unavailable

18100

BODY-ASSY-MUFFLER

18100-1053

$263.29

18120

CHAMBER-EXHAUST

18120-1053

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92027

COLLAR,6.8X10X11.5

92027-1210

$10.28

92075

DAMPER,MUFFLER FITTING

92075-1857

$5.96

92093

SEAL,MUFFLER CONNECTING

92093-1291

$37.24

92144

SPRING,PAD

92144-1470

$6.51

92150

BOLT,6X12

92150-1435

$4.31

92160

DAMPER,MUFFLER,FR

92160-1176

$28.25

92160A

DAMPER,MUFFLER,RR

92160-1201

$28.25

130

BOLT-FLANGED,5X8

130G0508

$1.85

132

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

132A

BOLT-FLANGED-SMALL,6X35

132G0635

$1.92

670

O RING,39MM

670E3039

$15.89

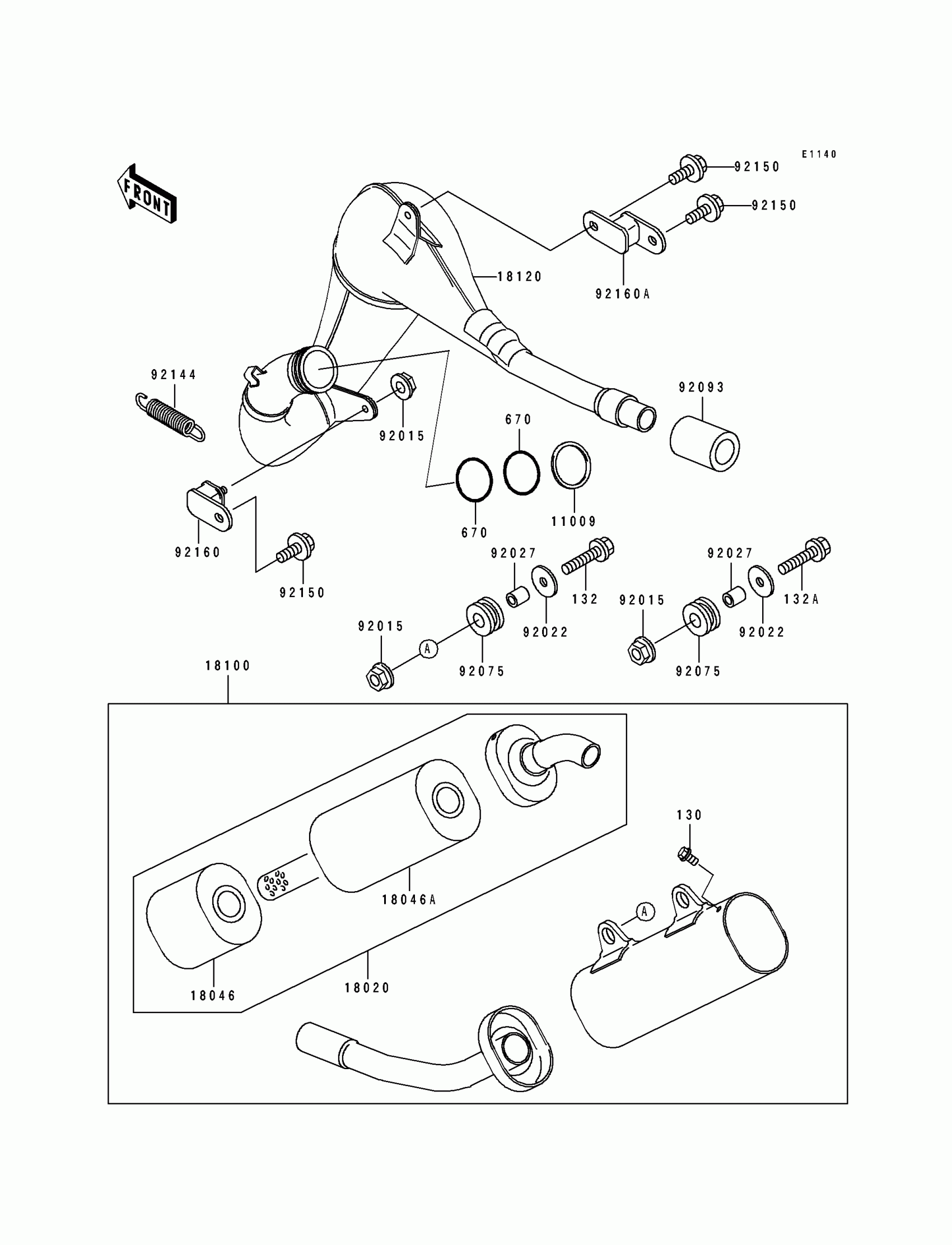

Kawasaki KX125 Muffler Diagram

GASKET,EXHAUST PIPE

BAFFLE

WOOL,L=110

WOOL,L=200

BODY-ASSY-MUFFLER

CHAMBER-EXHAUST

NUT,FLANGED,6MM

WASHER,6.5X22X1.6

COLLAR,6.8X10X11.5

DAMPER,MUFFLER FITTING

SEAL,MUFFLER CONNECTING

SPRING,PAD

BOLT,6X12

DAMPER,MUFFLER,FR

DAMPER,MUFFLER,RR

BOLT-FLANGED,5X8

BOLT-FLANGED-SMALL,6X30

BOLT-FLANGED-SMALL,6X35

O RING,39MM
