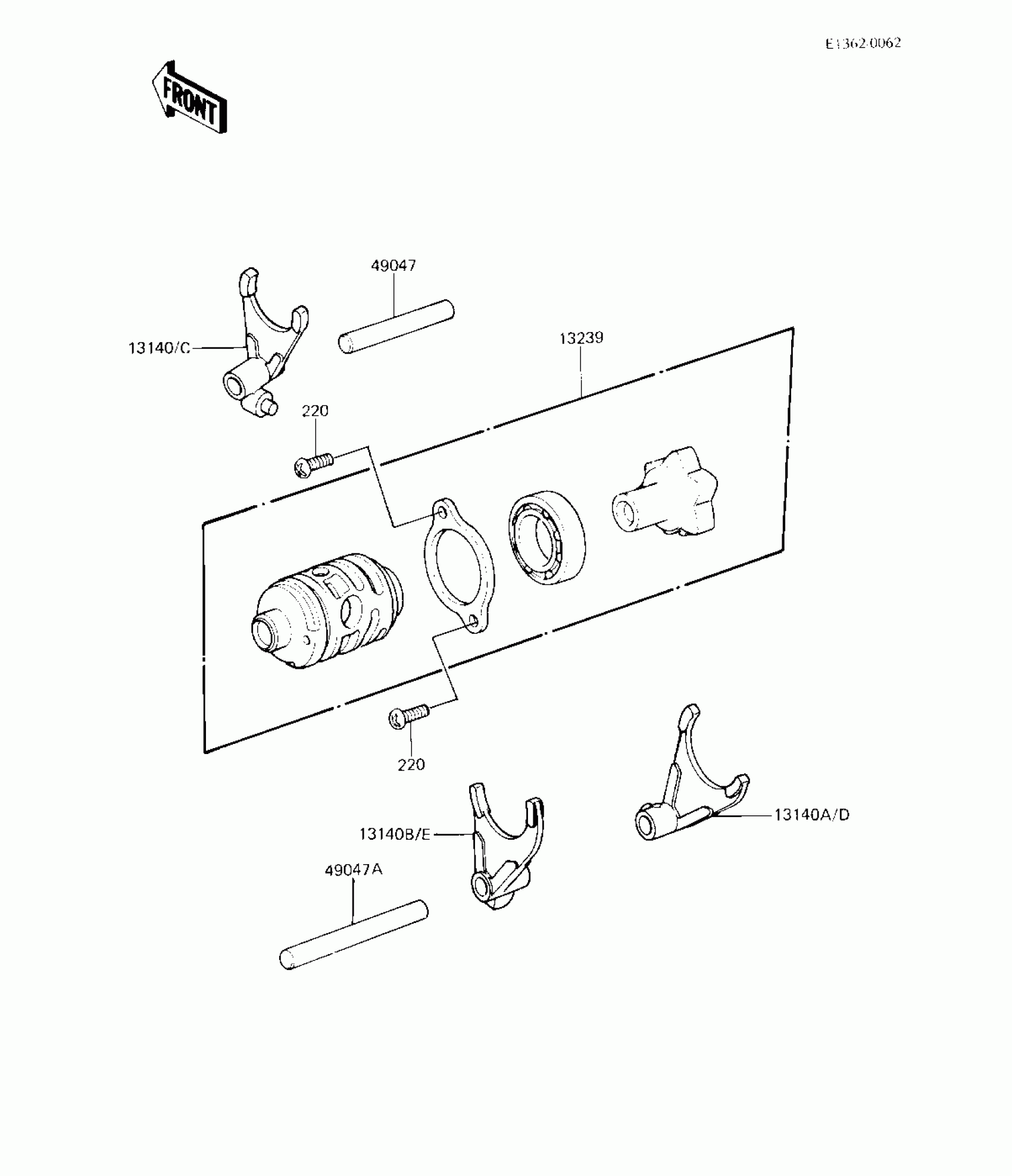

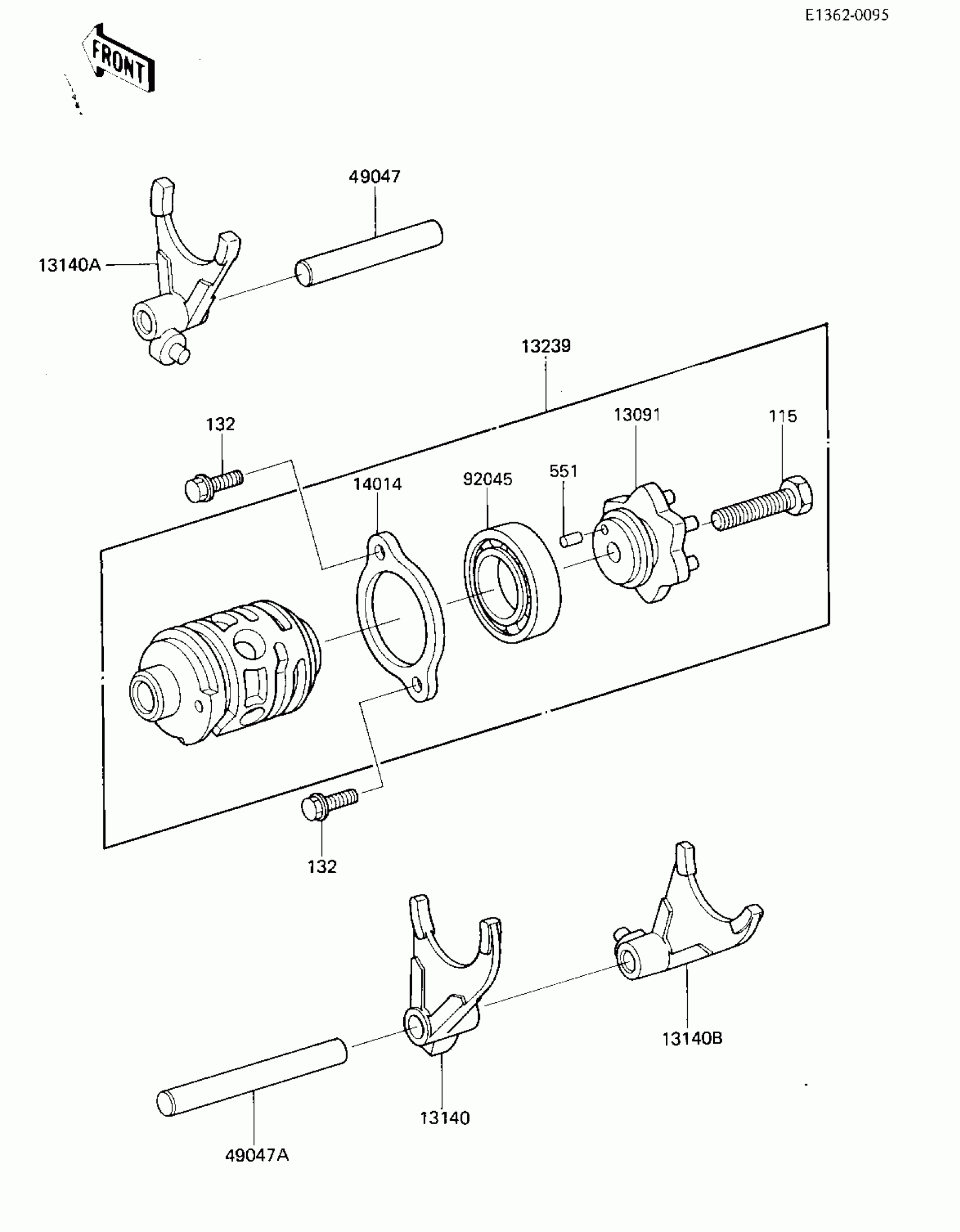

Kawasaki KX125 GEAR CHANGE DRUM & FORKS Diagram

Description

Price

13091

HOLDER,CHANGE DRUM

13091-1359

Unavailable

13140

FORK-SHIFT,2ND&3RD

13140-1070

Unavailable

13140A

FORK-SHIFT,5TH&TOP

13140-1123

Unavailable

13140B

FORK-SHIFT,LOW&4TH

13140-1124

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1120

Unavailable

14014

PLATE-POSITION

14014-1020

$14.64

49047

ROD-SHIFT,8X58

49047-1017

$15.74

49047A

ROD-SHIFT,8X79.5

49047-1018

$14.79

92045

BEARING-BALL,#6905

92045-036

$27.88

115

BOLT-SMALL-UPSET,8X30

115G0830

$6.34

132

BOLT-FLANGED-SMALL

132G0614

$1.42

551

PIN-DOWEL,4X8

551A0408

$0.78
