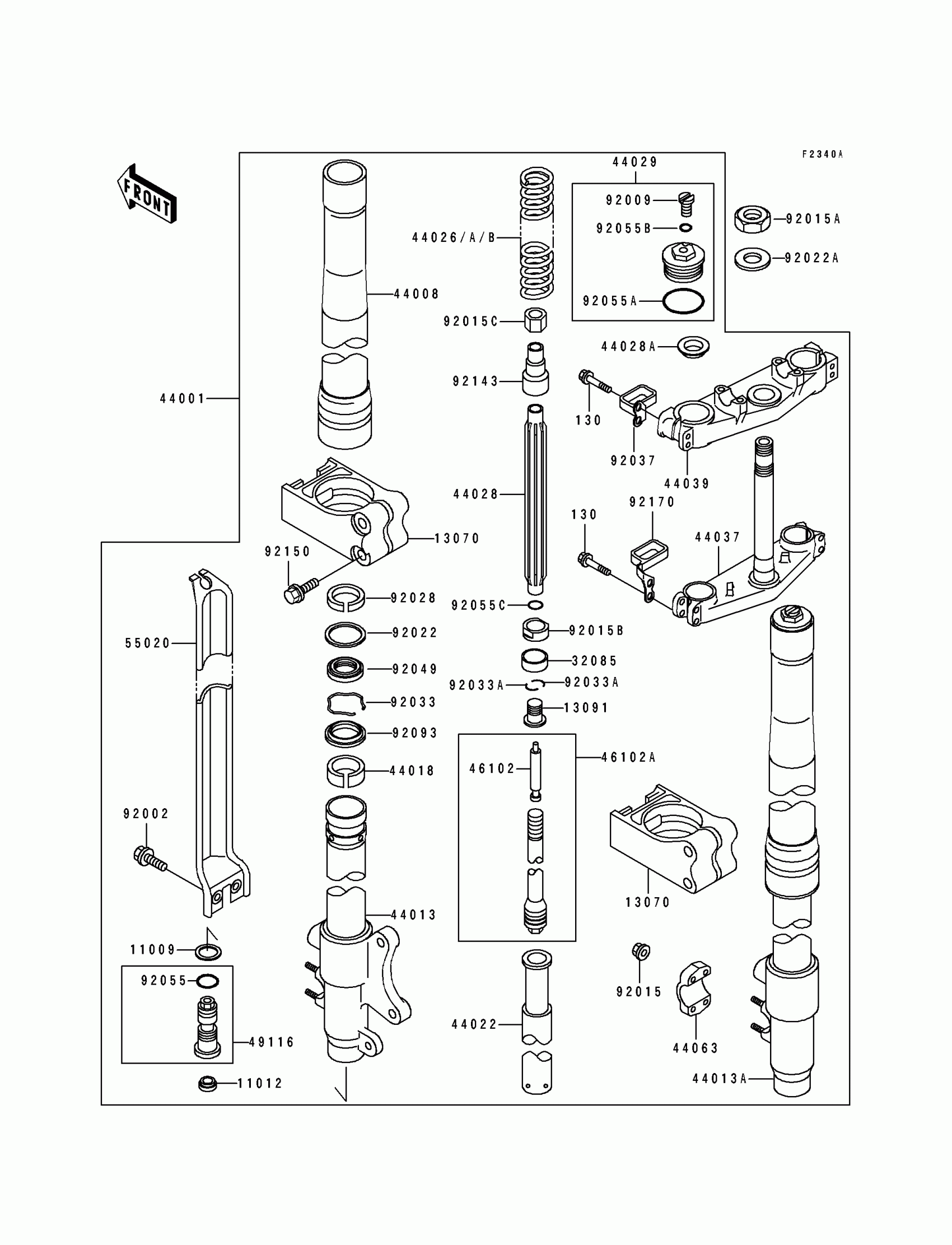

Kawasaki KX125 Front Fork(KX125-H2) Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1592
$6.16
11012
CAP
11012-1692
$6.16
13070
GUIDE,PROTECTOR
13070-1204
Unavailable
13091
HOLDER
13091-1651
$28.70
32085
STOPPER
32085-1323
$20.04
44001
FORK-FRONT
44001-1781
$1,829.55
44008
PIPE-FORK OUTER
44008-1012
$877.32
44013
PIPE-FORK INNER,LH
44013-1340
Unavailable
44013A
PIPE-FORK INNER,RH
44013-1341
Unavailable
44018
PISTON-FORK,INNER PIPE
44018-1056
$28.45
44022
CYLINDER-FORK
44022-1264
$230.31
44026
SPRING-FRONT FORK,K=0.35
44026-1487
Unavailable
44026A
SPRING-FRONT FORK,K=0.38
44026-1489
$88.69
44026B
SPRING-FRONT FORK,K=0.365
44026-1492
$95.49
44028
GUIDE-FORK SPRING
44028-1080
$73.39
44028A
GUIDE-FORK SPRING
44028-1081
$12.12
44029
SEAT-FORK SPRING
44029-1148
Unavailable
44037
HOLDER-FORK UNDER
44037-1280
$638.00
44039
HOLDER-FORK UPPER
44039-1211
$181.00
44063
HOLDER-FRONT AXLE
44063-1056
$55.31
46102
ROD,FORK
46102-1303
Unavailable
46102A
ROD,FORK
46102-1307
Unavailable
49116
VALVE-ASSY,FORK
49116-1093
Unavailable
55020
GUARD,FORK
55020-1384
Unavailable
92002
BOLT,6X14
92002-1460
$5.07
92009
SCREW
92009-1568
$7.21
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92015A
NUT,STEERING STEM,22MM
92015-1653
$16.69
92015B
NUT
92015-1805
$25.20
92015C
NUT
92015-1806
Unavailable
92022
WASHER
92022-1299
$8.58
92022A
WASHER,STEERING STEM
92022-1873
$7.45
92028
BUSHING
92028-1581
$21.80
92033
RING-SNAP
92033-1077
$4.96
92033A
RING-SNAP
92033-1271
$6.87
92037
CLAMP
92037-1627
$27.70
92049
SEAL-OIL
92049-1373
$28.98
92055
RING-O,FORK
92055-1062
$4.69
92055A
RING-O,FORK,AIR TUBE
92055-1333
$6.00
92055B
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92055C
RING-O
92055-1442
$9.21
92093
SEAL,FORK OUTER TUBE
92093-1315
$18.72
92143
COLLAR,FORK
92143-1374
Unavailable
92150
BOLT,5X35
92150-1270
$5.84
92170
CLAMP
92170-1088
$27.70
130
BOLT-FLANGED,8X40
130G0840
$1.92
