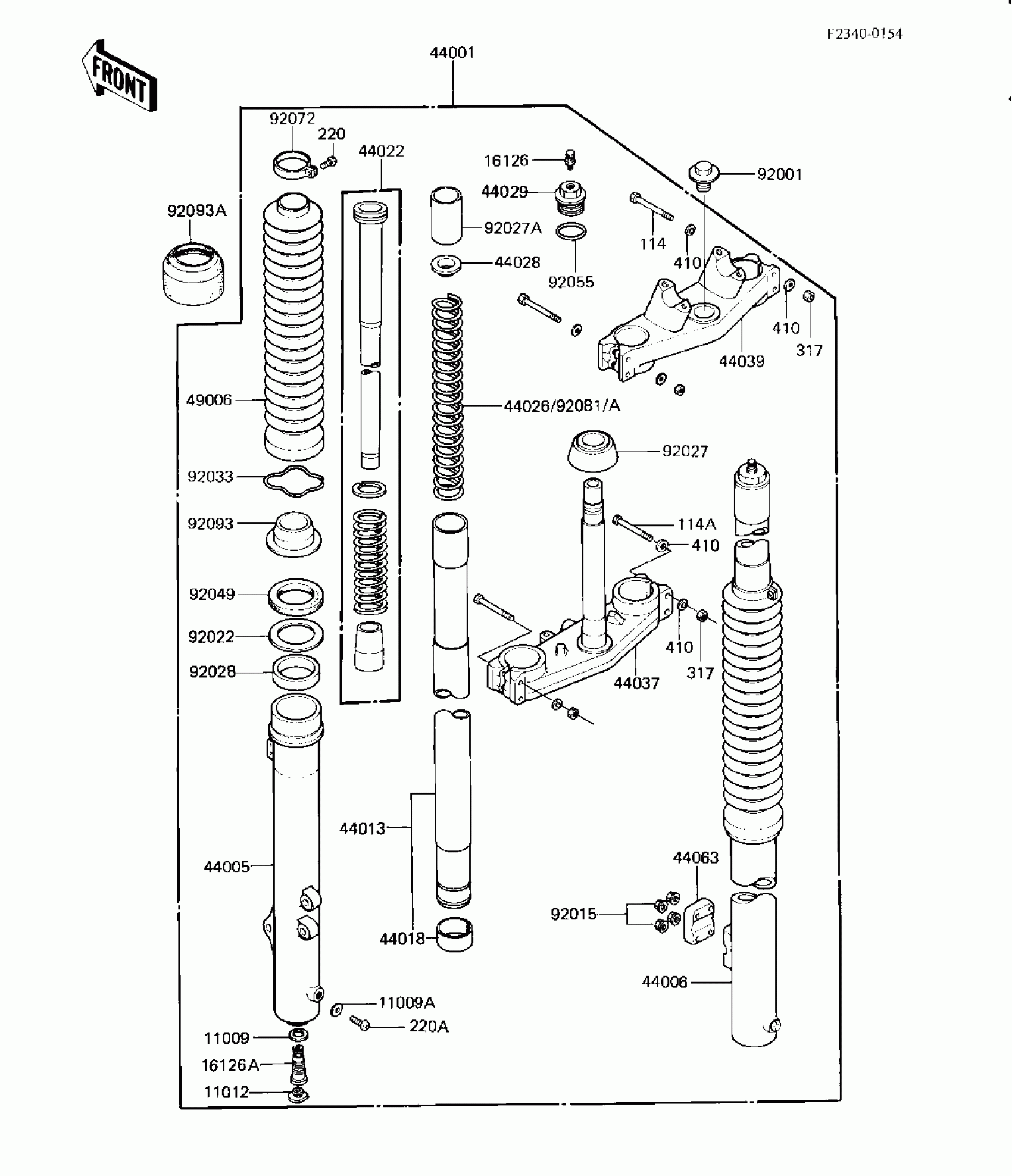

Kawasaki KX125 FRONT FORK (KX125-B2) Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1324

$5.54

11009A

GASKET,FORK DRAIN PLUG

44045-002

$5.18

11012

CAP,FORK CYLINDER

11012-1277

Unavailable

16126

VALVE,AIR FRONT FORK

16126-1048

Unavailable

16126A

VALVE,FORK CYLINDER

16126-1054

$65.89

44001

FORK-FRONT

44001-1381

$1,421.15

44005

PIPE-LEFT FORK OUTER

44005-1122

$376.48

44006

PIPE-RIGHT FORK OUTER

44006-1122

$376.48

44013

PIPE-FORK INNER

44013-1101

$394.50

44018

BUSHING-FRONT FORK,INNER PIPE

44018-1005

$41.55

44022

CYLINDER-FORK

44022-1087

$103.20

44026

SPRING-FRONT FORK

44026-1169

$48.86

44028

GUIDE-FORK SPRING

44028-1010

$11.30

44029

SEAT-FORK SPRING

44029-1041

$43.53

44037

HOLDER-FORK UNDER

44037-1084

$438.68

44039

HOLDER-FORK UPPER

44039-1060

$205.85

44063

HOLDER-FRONT AXLE

44063-1008

$53.61

49006

BOOT

49006-1081

Unavailable

92001

BOLT,STEERING HEAD,14X20

92001-1520

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER

92022-1299

$8.58

92027

COLLAR,FRONT FORK

92027-1427

$78.19

92027A

COLLAR,FORK INNER

92027-1533

$9.62

92028

BUSHING

92028-1145

$21.80

92033

RING-SNAP

92033-1077

$4.96

92049

SEAL-OIL,FORK OUTER TUBE

92049-1295

$22.14

92055

RING-O

92055-1123

$6.22

92072

BAND,BOOT

92072-1078

$11.16

92081

SPRING,FRONT FORK,K=0

92081-1556

$50.03

92081A

SPRING,FRONT FORK,K=0

92081-1557

$50.03

92093

SEAL,FORK DUST

92093-1086

Unavailable

92093A

SEAL,FORK DUST

92093-1094

$21.63

114

BOLT HEX HEAD 8X50

114G0850

$4.69

114A

BOLT,HEX HEAD,8X55

114G0855

Unavailable

220

SCREW-PAN-CROS

220B0316

$0.53

220A

SCREW PAN HEAD 4X8

220B0408

$0.67

317

NUT-HEX-SMALL,8MM

317G0800

$1.63

410

WASHER PLAIN 8MM

410B0800

$0.93
