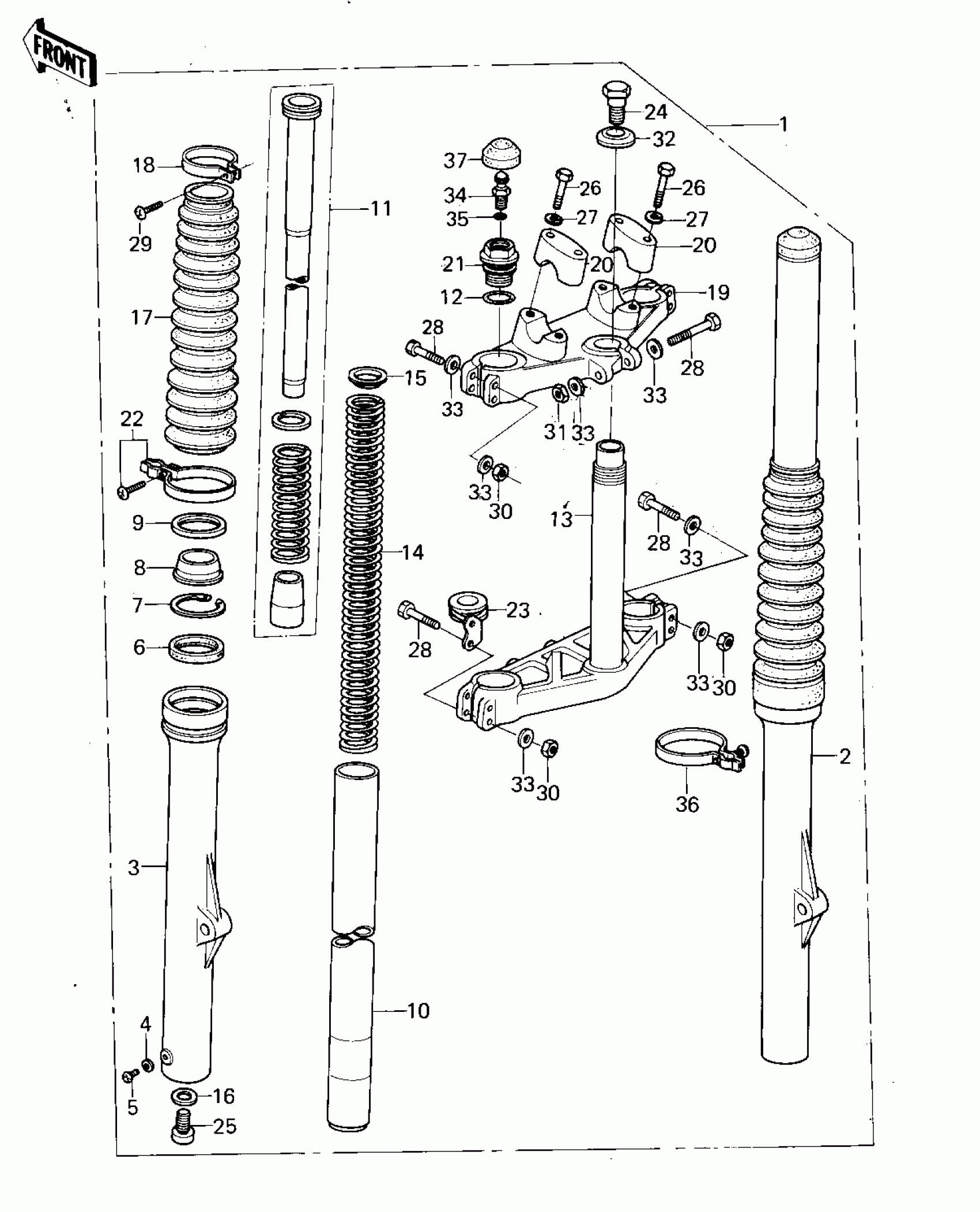

Kawasaki KX125 FRONT FORK ('80 A6) Diagram
#
Description
Price
1
FORK-FRONT
44001-1111
$1,043.92
2
TUBE,RH,FORK OUTER
44006-1038
$153.48
3
TUBE,LH,FORK OUTER
44005-1038
$170.55
4
GASKET,FORK DRAIN PLUG
44045-002
$5.18
5
SCREW PAN HEAD 4X8
220B0408
$0.67
6
OIL SEAL,FORK OUT TUB
92049-1042
Unavailable
7
RING-SNAP,FORK
92033-1047
$6.46
8
DUST SHIELD,FORK OUTR
92093-1035
$14.45
9
CASE,DUST SHIELD
32099-1013
Unavailable
10
TUBE,FORK INNER
44013-1029
$201.48
11
CYLINDER-FORK
44022-1033
$82.05
12
RING-O,FORK TOP CAP
92055-1050
$6.27
13
STEM,STEERING
44037-1054
$142.45
14
SPRING,FORK INNER
44026-1041
$57.18
15
GUIDE-FORK SPRING
44028-1003
$11.28
16
GASKET,FORK CYLINDER BOLT
11009-1127
$5.18
17
BOOT,FORK,L.GREEN
49006-1027
Unavailable
18
BAND,BOOT
92072-1046
$10.04
19
HEAD,STEERING STEM
44039-1031
$139.45
20
HOLDER,HANDLE BAR
46012-1003
$12.85
21
CAP,FORK TOP
44029-1008
Unavailable
22
CLAMP,BOOT,L.H
92072-1026
Unavailable
23
CLAMP,CABLE
92072-1027
Unavailable
24
BOLT,FORK TOP
44041-065
Unavailable
25
BOLT,FORK CYLINDER
92001-1309
$7.62
26
BOLT,FLANGED,8X35
92001-1577
Unavailable
27
WASHER SPRING 8MM
461F0800
$0.40
28
BOLT FLANGED 8X55
92001-1398
$4.04
29
SCREW-PAN-CROS
220B0420
$2.49
30
NUT-HEX,8MM
311G0800
Unavailable
31
NUT,LOCK,8MM
92015-1124
$5.42
32
WASHER
44043-052
$8.01
33
WASHER PLAIN 8MM
410B0800
$0.93
34
VALVE ASSY,AIR
16126-1003
Unavailable
35
"0" RING,AIR VALVE
92055-1018
Unavailable
36
CLAMP,BOOT,R.H
92072-1025
Unavailable
37
CAP,RUBBER,FORK TOP
44029-1009
Unavailable
