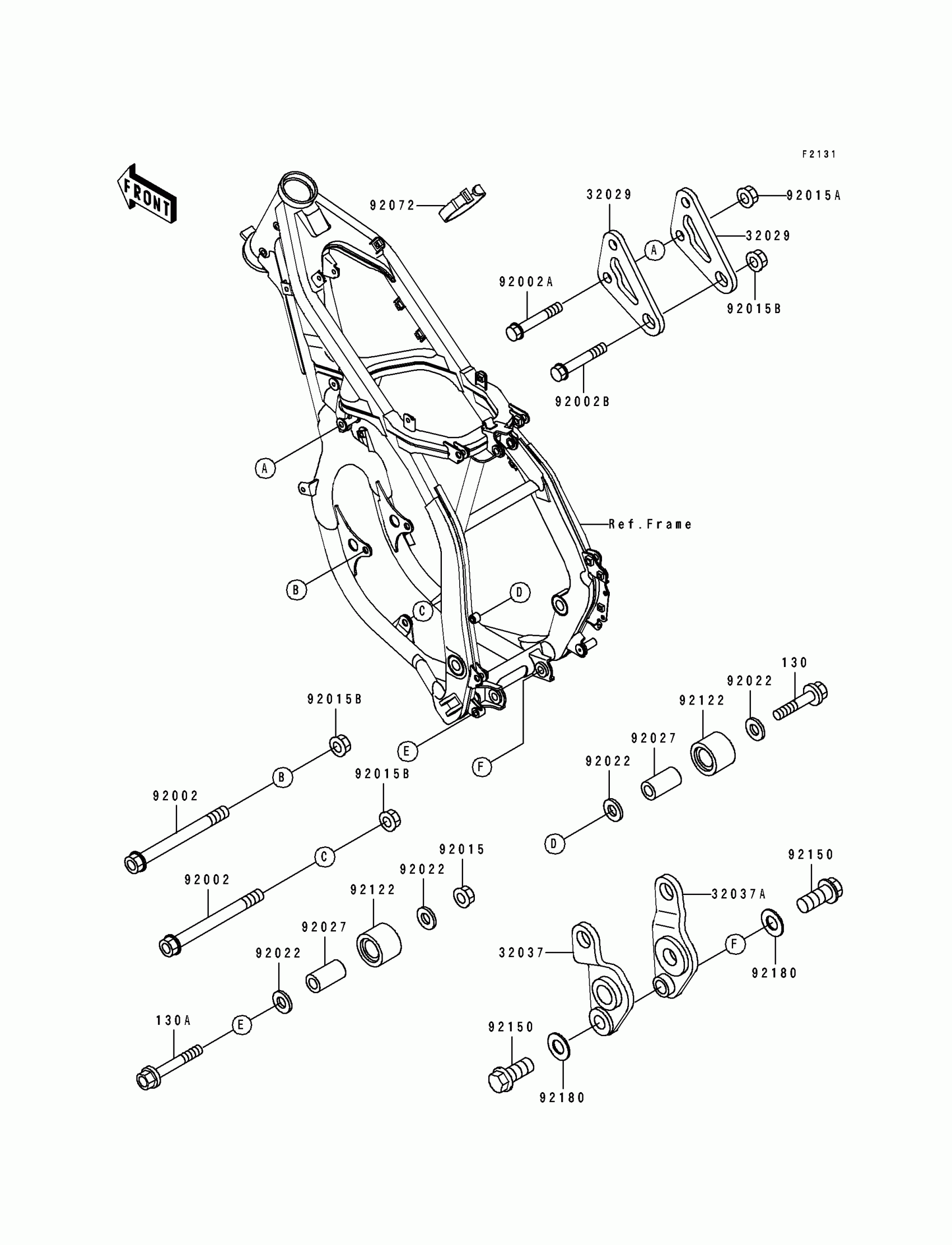

Kawasaki KX125 Frame Fitting Diagram

Description

Price

32029

BRACKET-ENGINE

32029-1791

Unavailable

32037

BRACKET-SHOCKABSORBER,LWR,LH

32037-1581

$56.88

32037A

BRACKET-SHOCKABSORBER,LWR,RH

32037-1582

$56.88

92002

BOLT,FLANGED,10X105

92002-1491

$11.60

92002A

BOLT,FLANGED,8X52

92002-1857

$4.99

92002B

BOLT,FLANGED,10X53

92002-1936

$8.58

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,8MM

92015-1432

$6.57

92015B

NUT,FLANGED,10MM

92015-1502

$10.28

92022

WASHER,8.5X22X1.5

92022-1629

$6.15

92027

COLLAR,CHAIN ROLLER

92027-1670

$7.34

92072

BAND,L=186

92072-056

$5.00

92122

ROLLER,CHAIN GUIDE

92122-1153

$10.65

92150

BOLT,FLANGED,12X27

92150-1359

$7.84

92180

SHIM,12.5X24X0.5

92180-1060

$3.92

130

BOLT-FLANGED,8X40

130G0840

$1.92

130A

BOLT-FLANGED,8X55

130G0855

Unavailable
