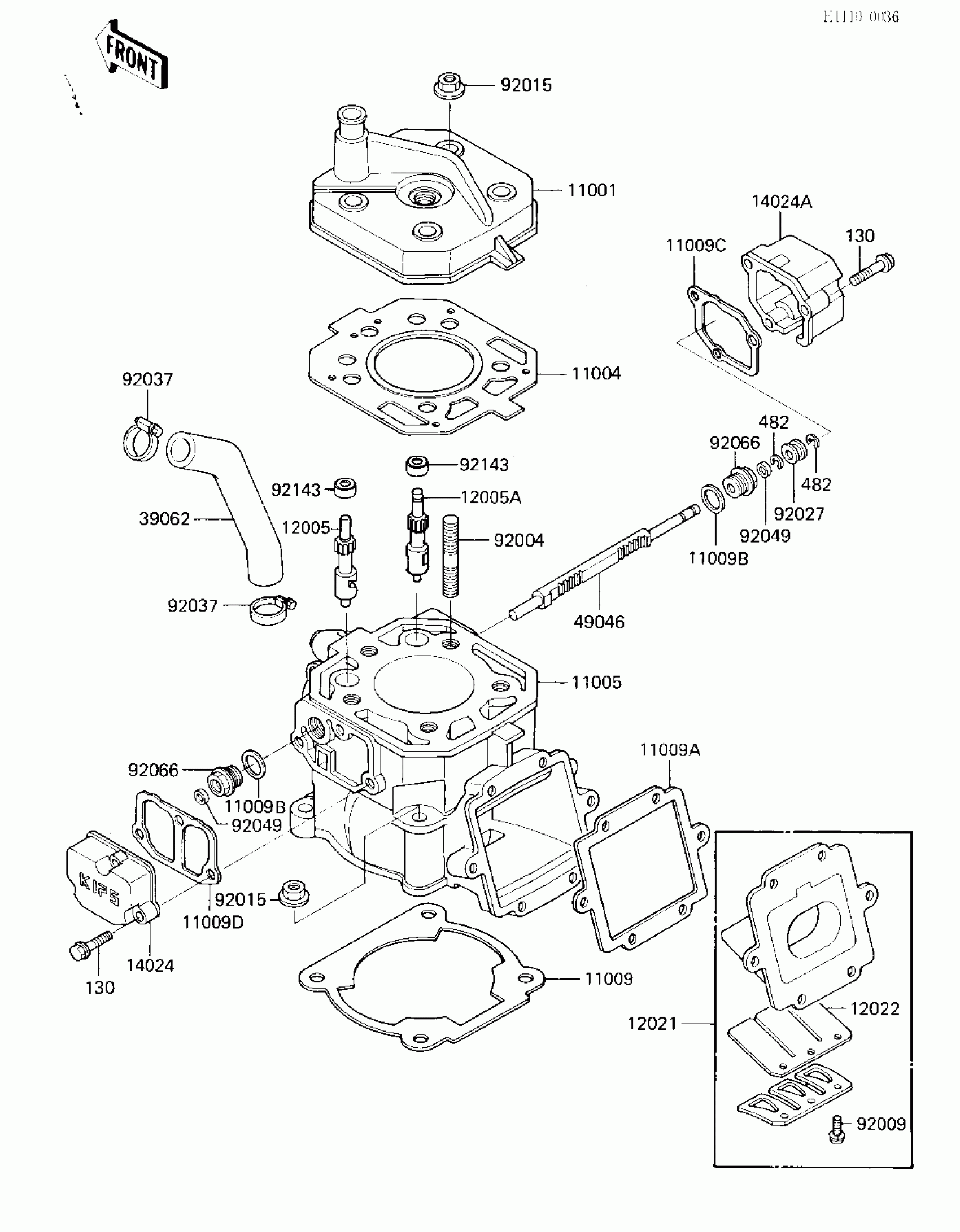

Kawasaki KX125 CYLINDER HEAD/CYLINDER/REED VALVE Diagram
#
Description
Price
11001
HEAD-CYLINDER
11001-1244
Unavailable
11004
GASKET-HEAD
11004-1160
Unavailable
11005
CYLINDER-ENGINE
11005-1508
Unavailable
11009
GASKET,CYLINDER BASE
11009-1258
Unavailable
11009A
GASKET,REED VALVE
11009-1941
$9.20
11009B
GASKET,16.2X22X1
11009-1467
$3.55
11009C
GASKET,RH,GOVERNOR
11009-1479
Unavailable
11009D
GASKET,LH,RESONATOR
11009-1641
Unavailable
12005
VALVE-EXHAUST,LH
12005-1088
Unavailable
12005A
VALVE-EXHAUST,RH
12005-1089
Unavailable
12021
VALVE-ASSY-REED
12021-1064
Unavailable
12022
VALVE-REED,CARBON
12022-1057
Unavailable
14024
COVER,LH,RESONATOR
14024-1400
Unavailable
14024A
COVER,RH,GOVERNOR
14024-1650
$51.40
39062
HOSE-COOLING,PUMP-CYL
39062-1205
$22.59
49046
ROD-GOVERNOR
49046-1059
$99.45
92004
STUD,8X45
92004-1175
Unavailable
92009
SCREW,REED VALVE
92009-1014
$2.49
92015
NUT,8MM
92015-1143
$0.65
92027
COLLAR,GOVERNOR ROD
92027-1834
$17.56
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92049
SEAL-OIL,RSO-5.5X11X4
92049-1206
$10.39
92066
PLUG,ROD
92066-1194
Unavailable
92143
COLLAR,EXHAUST VALVE
92143-1074
Unavailable
130
BOLT-FLANGED
130G0525
$0.64
482
CIRCLIP-TYPE-E,4MM
482J4000
$1.35
