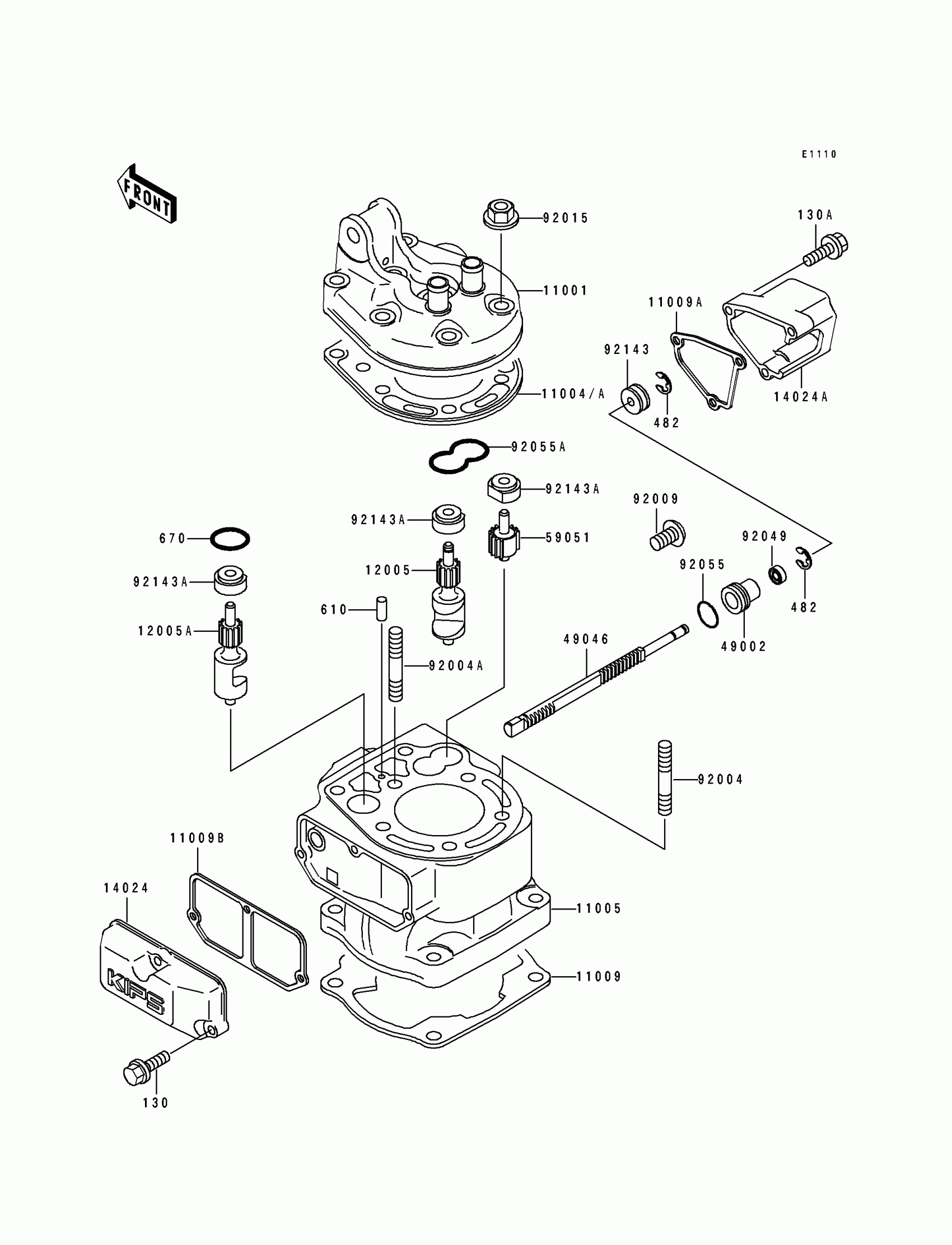

Kawasaki KX125 Cylinder Head/Cylinder(KX125-H1) Diagram
#
Description
Price
11001
HEAD-CYLINDER
11001-1316
Unavailable
11004
GASKET-HEAD,T=0.26
11004-1204
Unavailable
11004A
GASKET-HEAD,T=0.46
11004-1225
Unavailable
11005
CYLINDER-ENGINE
11005-1602
Unavailable
11009
GASKET,CYLINDER BASE
11009-1824
Unavailable
11009A
GASKET,RH,GOVERNOR
11009-1692
Unavailable
11009B
GASKET,LH,RESONATOR
11009-1815
Unavailable
12005
VALVE-EXHAUST,RH
12005-1145
Unavailable
12005A
VALVE-EXHAUST,LH
12005-1153
Unavailable
14024
COVER,RESONATOR
14024-1565
$38.31
14024A
COVER,GOVERNOR
14024-1844
Unavailable
49002
GUIDE-VALVE
49002-1100
Unavailable
49046
ROD-GOVERNOR
49046-1067
$83.80
59051
GEAR-SPUR,IDLE
59051-1222
$37.47
92004
STUD,8X33
92004-1197
$4.65
92004A
STUD,8X32
92004-1201
$6.80
92009
SCREW,5X10
92009-1502
$4.18
92015
NUT,8MM
92015-1143
$0.65
92049
SEAL-OIL,RSO-5.5X11X4
92049-1206
$10.39
92055
RING-O,14.5X1.5
92055-1399
$4.67
92055A
RING-O
92055-1439
Unavailable
92143
COLLAR
92143-1056
$10.57
92143A
COLLAR,VALVE
92143-1296
Unavailable
130
BOLT-FLANGED
130G0520
Unavailable
130A
BOLT-FLANGED
130G0525
$0.64
482
CIRCLIP-TYPE-E,4MM
482J4000
$1.35
610
ROLLER,4X8
610A0408
$4.31
670
O RING,15MM
670B2015
$1.42
