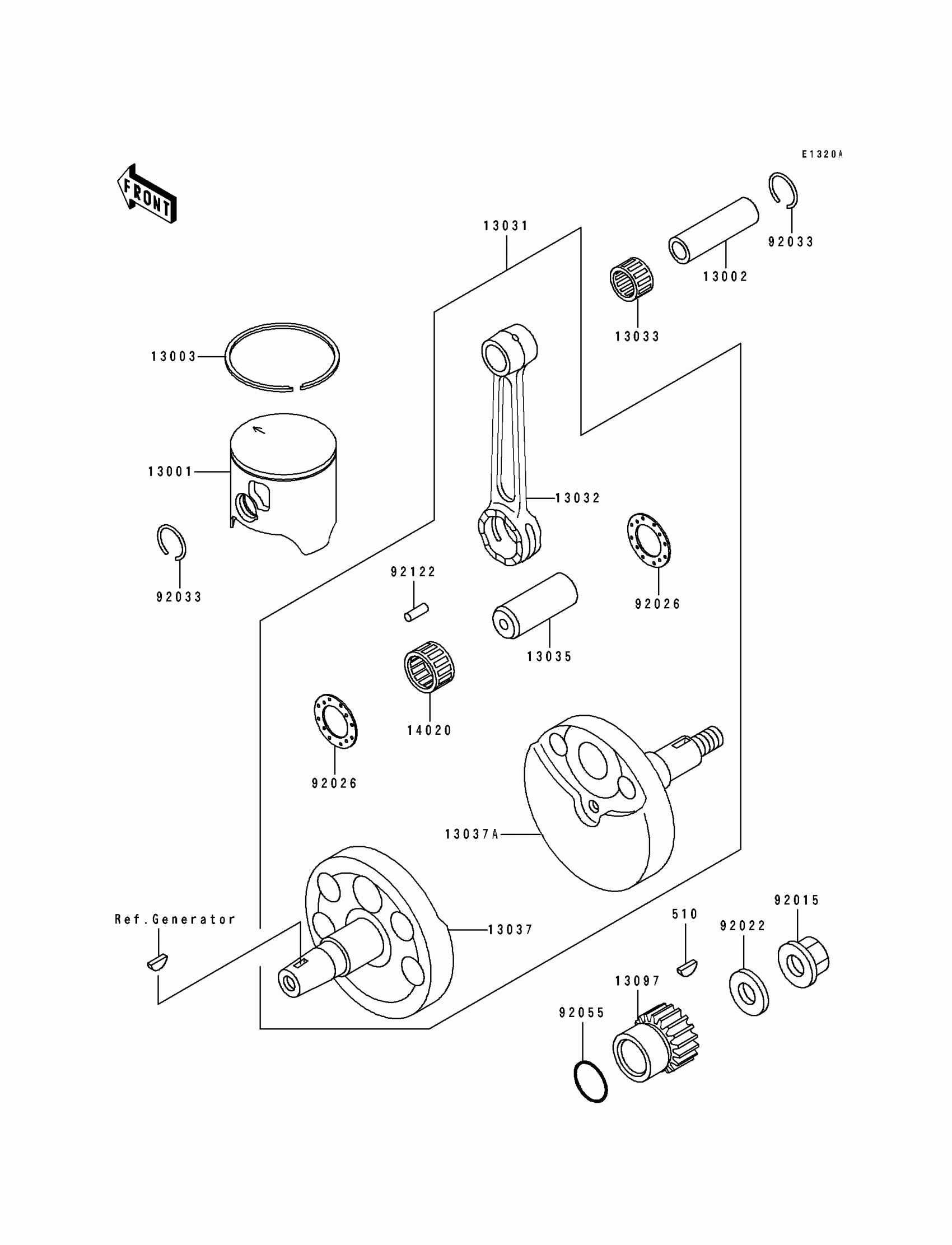

Kawasaki KX125 Crankshaft/Piston(KX125-H2) Diagram

Description

Price

13001

PISTON-ENGINE

13001-1341

$162.65

13002

PIN-PISTON

13002-1066

$25.65

13003

RING-PISTON TOP

13003-1315

Unavailable

13031

CRANKSHAFT-COMP

13031-1319

Unavailable

13032

ROD-CONNECTING

13032-1146

$77.54

13033

BEARING-SMALL END

13033-1056

$23.42

13035

PIN-CRANK

13035-1010

Unavailable

13037

CRANKSHAFT,LH

13037-1373

Unavailable

13037A

CRANKSHAFT,RH

13037-1374

Unavailable

13097

GEAR-PRIMARY SPUR,18T

13097-1203

Unavailable

14020

RETAINER

14020-1068

Unavailable

92015

NUT,FLANGED,12MM

92015-1156

Unavailable

92022

WASHER

92022-1831

$5.52

92026

SPACER,22.2X37X1.0

92026-1136

$8.58

92033

RING-SNAP,PISTON PIN

92033-1242

$4.07

92055

RING-O,18.8X1.9

92055-086

$4.31

92122

ROLLER,B-4

92122-1148

$2.83

510

WOODRUFF KEY

510A5100

$2.70
