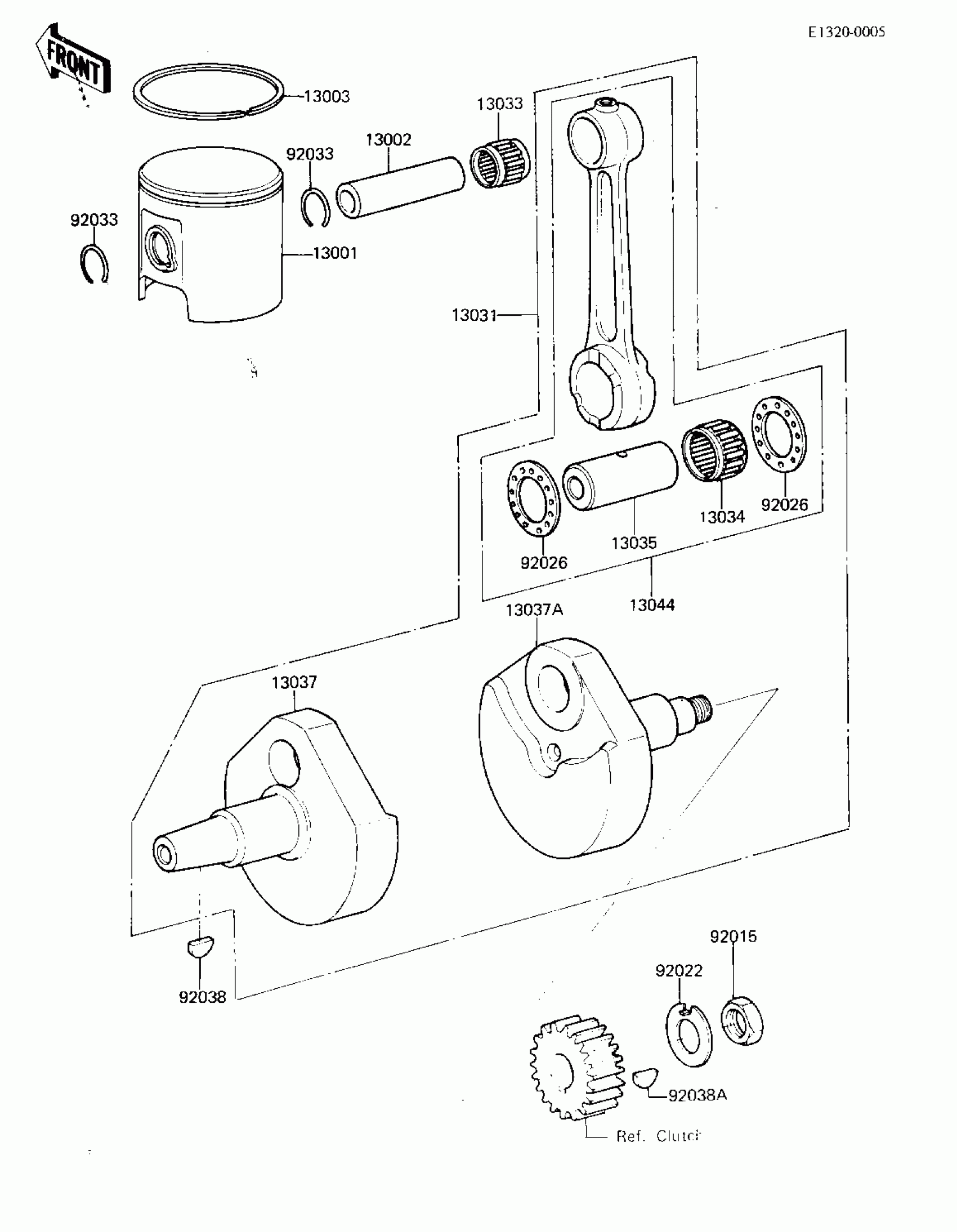

Kawasaki KX125 CRANKSHAFT/PISTON ('81 A7) Diagram

Description

Price

13001

PISTON-ENGINE

13001-1052

Unavailable

13002

PIN-PISTON

13002-1003

$22.21

13003

RING,PISTON,S.T.D

13003-1060

$115.61

13031

CRANKSHAFT-COMP

13031-5010

Unavailable

13033

BEARING-SMALL END,KBK16X21

13033-1007

Unavailable

13034

BEARING-BIG END

13034-1079

Unavailable

13035

PIN,CRANK

13035-1001

Unavailable

13037

CRANKSHAFT,LH

13037-1103

Unavailable

13037A

CRANKSHAFT,RH

13037-1104

Unavailable

13044

SET-CONNECTING ROD

13044-5018

Unavailable

92015

NUT,12MM

92015-006

$5.59

92022

WASHER,LOCK

92022-1063

Unavailable

92026

SPACER,22.5X37X1.0

92026-011

$9.89

92033

CIRCLIP PISTON PIN

92036-004

$0.65

92038

KEY,WOODRUFF

92038-001

$4.96

92038A

KEY,WOODRUFF

92038-003

$5.37
