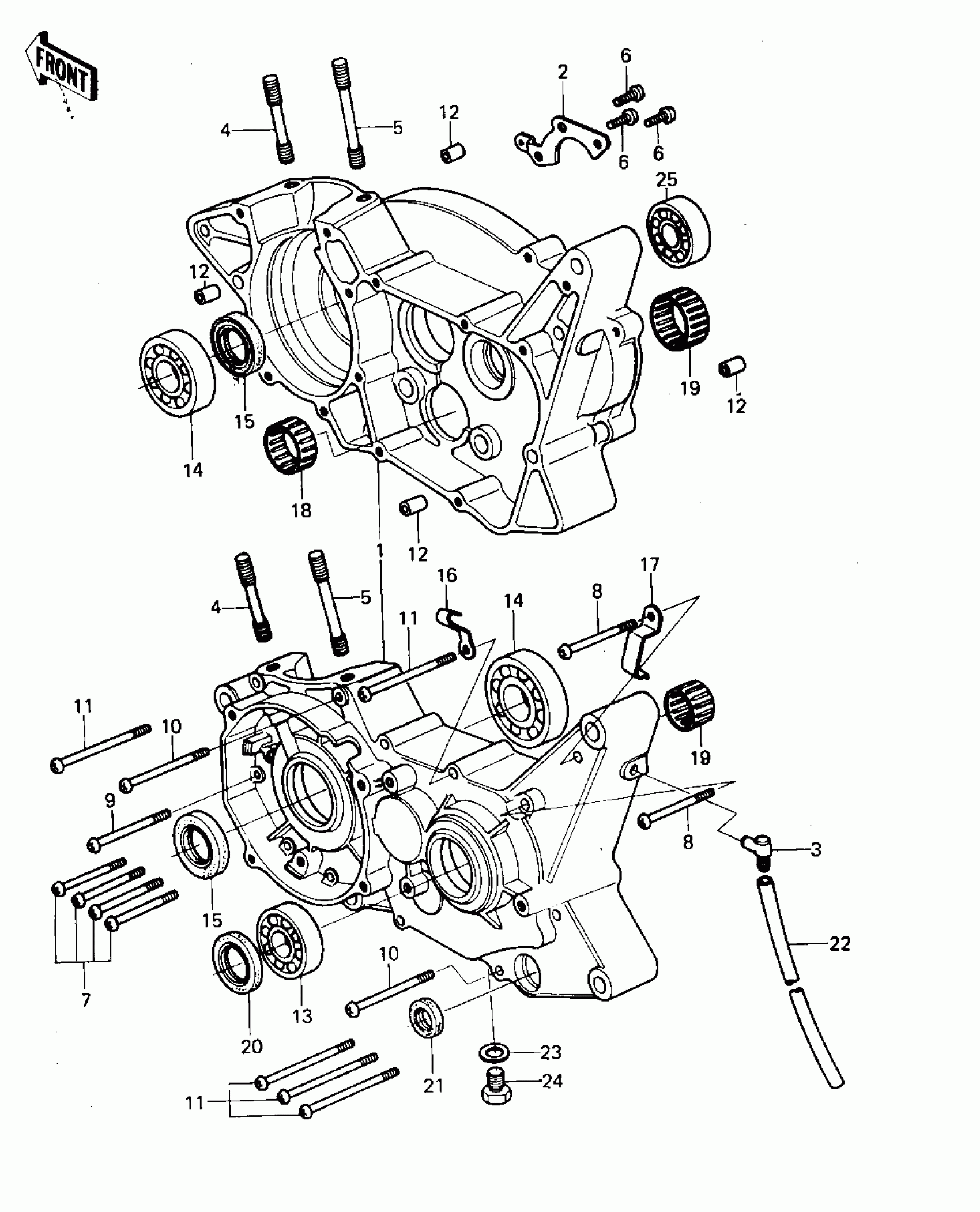

Kawasaki KX125 CRANKCASE ('80 A6) Diagram
#
Description
Price
1
CRANKCASE SET
14001-5047
Unavailable
2
PLATE,POSITIONING
14014-1003
Unavailable
3
BREATHER
14069-003
$10.29
4
STUD,8X25
92004-1008
$3.70
5
STUD,8X55
172G0855
$1.31
6
SCREW-PAN-CROS,6X16
220B0616
$2.84
7
SCREW PAN HEAD 6X45
220B0645
$1.71
8
SCREW PAN HEAD 6X50
220B0650
$1.25
9
SCREW PAN HEAD 6X55
220B0655
$4.12
10
SCREW-PAN-CROS,6X60
220B0660
$1.79
11
SCREW PAN HEAD 6X70
220B0670
$3.84
12
PIN,DOWEL,10X14
92043-1037
$0.74
13
BEARING-BALL,#6204C3
601B6204
$13.65
14
BEARING-BALL,#6305C3
601B6305
$25.78
15
SEAL-OIL
92049-1250
$18.74
16
CLAMP CABLE
92037-016
Unavailable
17
CLAMP
92037-1073
Unavailable
18
BEARING,NEEDLE
92046-043
Unavailable
19
BEARING-NEEDLE,HMK151
92046-1058
Unavailable
20
SEAL-OIL,SC25376
92050-013
$14.23
21
SEAL-OIL,TB13225.5
92051-005
$7.74
22
PIPE-BREATHER
92059-061
Unavailable
23
GASKET,10.5X16X1
92065-058
$3.96
24
PLUG,DRAIN,10X12
92067-001
$4.41
25
BEARING-BALL,#6303C3
601B6303
$8.29
