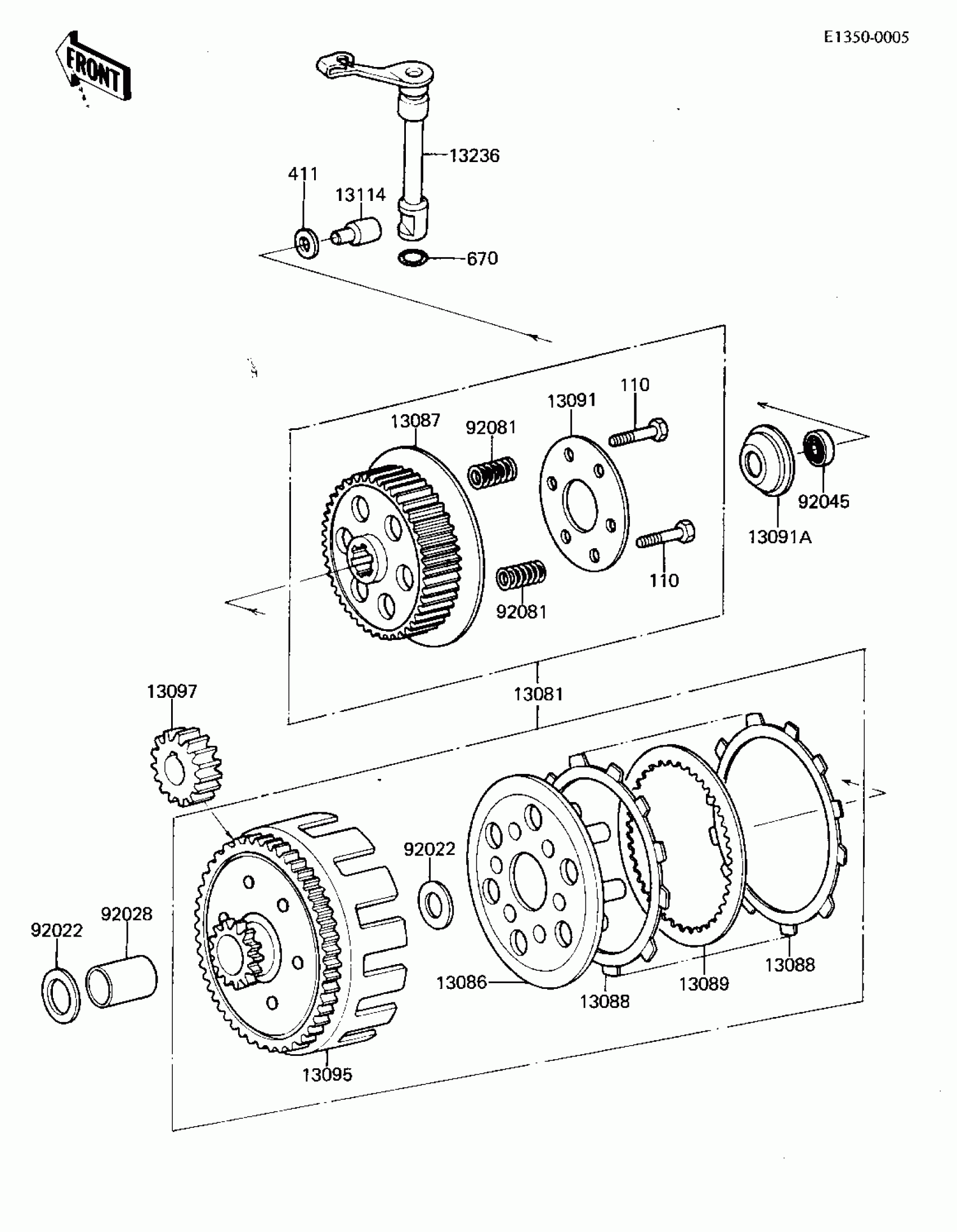

Kawasaki KX125 CLUTCH ('81 A7) Diagram

Description

Price

13081

CLUTCH-ASSY

13081-1060

Unavailable

13086

WHEEL,CLUTCH

13086-1001

Unavailable

13087

HUB,CLUTCH

13087-1002

Unavailable

13088

PLATE-FRICTION

13088-1015

$20.55

13089

PLATE,CLUTCH STEEL

13089-1002

Unavailable

13091

HOLDER,CLUTCH

13091-1011

Unavailable

13091A

HOLDER,CLUTCH PUSHER

13091-1071

Unavailable

13095

HOUSING,CLUTCH

13095-1028

Unavailable

13097

GEAR,PRIMARY,20T

13097-1032

Unavailable

13114

PUSHER,CLUTCH

13114-1004

Unavailable

13236

LEVER ASSY,CLUTCH RL

13236-1022

Unavailable

92022

WASHER,17.3X30X1.4

92022-270

$9.84

92028

BUSHING,CLUTCH

92028-1018

Unavailable

92045

BEARING-BALL

92045-1211

$11.88

92081

SPRING,CLUTCH

92081-123

$9.03

110

BOLT

110G0520

$5.14

411

WASHER PLAIN 6MM

411B0600

$2.84

670

O RING,10MM

670B2010

$1.50
