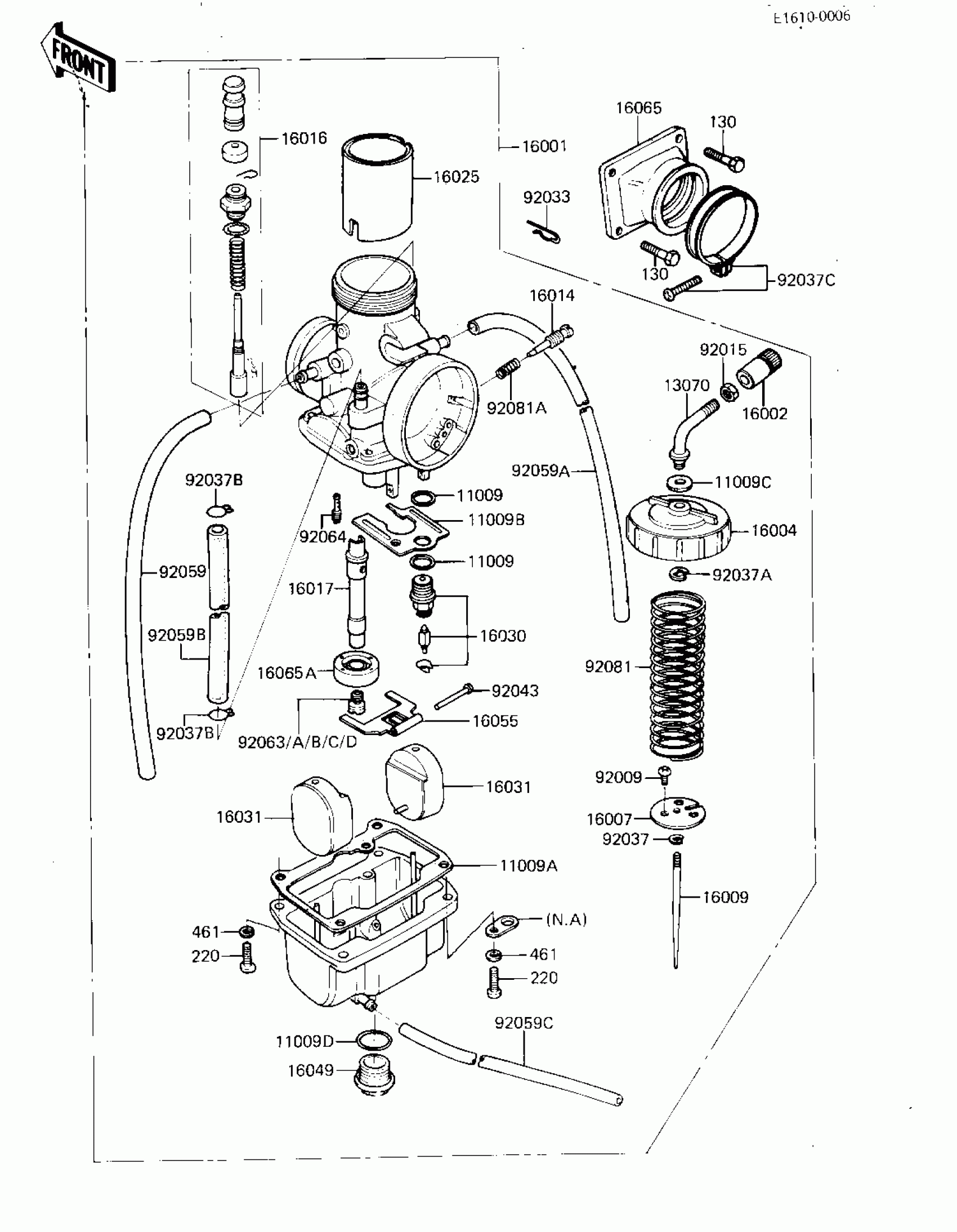

Kawasaki KX125 CARBURETOR ('81 A7) Diagram
#
11009
GASKET,FLOAT VALVE
11009-1076
Unavailable
11009A
GASKET,FLOAT CHAMBER
11009-1079
Unavailable
11009B
PLATE,FLOAT CHAMBER
11009-1080
Unavailable
11009C
GASKET,CABLE GUIDE
11009-1191
Unavailable
11009D
GASKET,MAIN JET COVER
16038-009
Unavailable
13070
GUIDE,CABLE
13070-1010
Unavailable
16001
CARBURETOR
16001-1367
$238.63
16002
ADJUSTER-CABLE
16002-1006
Unavailable
16004
TOP,MIXING CHAMBER
16004-1003
$33.88
16007
SEAT,THROTTLE VALVE
16007-1007
Unavailable
16009
JET NEEDLE,6F21
16009-1067
Unavailable
16014
SCREW
16014-006
$17.15
16016
PLUNGER ASSY,STARTER
16016-1013
Unavailable
16017
JET-NEEDLE,R-2
16017-1081
Unavailable
16025
VALVE-THROTTLE,CA3.5
16025-1055
$84.54
16030
VALVE-FLOAT
16030-1015
Unavailable
16031
FLOAT ASSY
16031-025
Unavailable
16049
COVER-MAIN JET
16049-006
Unavailable
16055
ARM,FLOAT
16055-004
Unavailable
16065
HOLDER,CARBURETOR
16065-1007
Unavailable
16065A
HOLDER-CARBURETOR
16065-1040
Unavailable
92009
SCREW,4X5
92009-1037
$3.56
92015
NUT,CABLE ADJUST LOCK
16003-004
$7.34
92033
RING-SNAP
92036-018
$3.89
92037
CLAMP,E-TYPE
16008-010
$9.21
92037A
CLAMP,CABLE GUIDE
16008-011
Unavailable
92037B
CLAMP,CARB CONECT HOS
92037-056
$6.60
92037C
CLAMP-INLET PIPE
92037-061
Unavailable
92043
PIN,FLOAT
16032-008
$6.57
92059
TUBE,3.5X6.5X290,BRTH
92059-1017
Unavailable
92059A
HOSE,OVERFLOW
92059-1025
$21.68
92059B
HOSE,6.5X11.5X240
92059-1084
$21.68
92059C
TUBE,3.5X6.5X120
92059-1178
$4.71
92063
MAIN JET,#160R
92063-1018
Unavailable
92063A
MAIN JET,#162.5R
92063-1019
Unavailable
92063B
MAIN JET,#165R
92063-1020
Unavailable
92063C
MAIN JET,#167.5R
92063-1021
$10.43
92063D
MAIN JET,#170R
92063-1022
Unavailable
92064
JET-PILOT,#30
92064-022
$17.03
92081
SPRING-THROTTLE VALV
16006-016
Unavailable
92081A
SPRING,PILOT AIR SCREW
16022-007
$8.13
130
BOLT-FLANGED,6X20
130G0620
$1.69
220
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
461
WASHER SPRING 5MM
461F0500
$0.69
