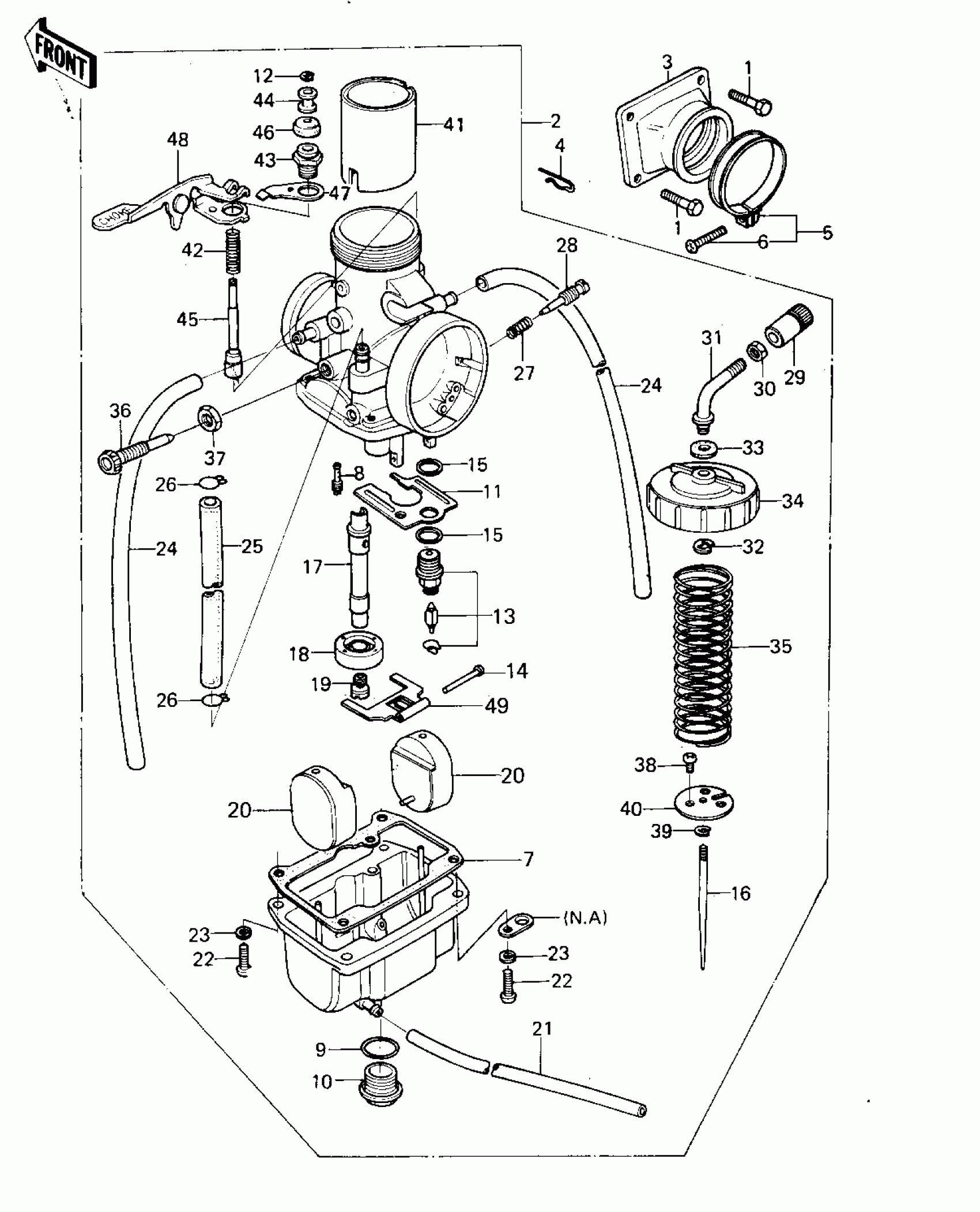

Kawasaki KX125 CARBURETOR ('80 A6) Diagram
#
1
BOLT-UPSET
112G0625
$3.62
2
CARBURETOR ASSY
16001-1244
Unavailable
3
HOLDER,CARBURETOR
16065-1007
Unavailable
4
RING-SNAP
92036-018
$3.89
5
CLAMP-INLET PIPE
92037-061
Unavailable
6
SCREW,PAN HEAD
92011-037
Unavailable
7
GASKET,FLOAT CHAMBER
11009-1079
Unavailable
8
PILOT JET,#50
92064-1005
$18.76
9
GASKET,MAIN JET COVER
16038-009
Unavailable
10
COVER-MAIN JET
16049-006
Unavailable
11
PLATE,FLOAT CHAMBER
11009-1080
Unavailable
12
CIRCLIP
16076-003
$8.92
13
FLOAT VALVE ASSY
16030-020
$82.44
14
PIN,FLOAT
16032-008
$6.57
15
GASKET,FLOAT VALVE
11009-1076
Unavailable
16
JET NEEDLE,6F21
16009-1067
Unavailable
17
NEEDLE JET,Q-4
16017-1060
$34.25
18
HOLDER,NEEDLE JET
16065-1017
$37.32
19
JET-MAIN NO 147.5R
92063-119
Unavailable
19
JET-MAIN NO 142.5R
92063-117
Unavailable
19
JET-MAIN NO 145R
92063-118
Unavailable
19
MAIN JET NO 150R
92063-120
Unavailable
19
JET-MAIN NO 152.5R
92063-121
Unavailable
20
FLOAT
16031-1062
Unavailable
21
HOSE,OVERFLOW
92059-1025
$21.68
22
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
23
WASHER SPRING 5MM
461F0500
$0.69
24
TUBE,3.5X6.5X290,BRTH
92059-1017
Unavailable
25
HOSE,6.5X11.5X240
92059-1084
$21.68
26
CLAMP,CARB CONECT HOS
92037-056
$6.60
27
SPRING,PILOT AIR SCREW
16022-007
$8.13
28
SCREW
16014-006
$17.15
29
ADJUSTER-CABLE
16002-1006
Unavailable
30
NUT,CABLE ADJUST LOCK
16003-004
$7.34
31
GUIDE,CABLE
13070-1010
Unavailable
32
CLAMP,CABLE GUIDE
16008-011
Unavailable
33
GASKET,CABLE GUIDE
11009-1191
Unavailable
34
TOP,MIXING CHAMBER
16004-1003
$33.88
35
SPRING-THROTTLE VALV
16006-016
Unavailable
36
SCREW,THROT VLV ADJST
16021-1030
Unavailable
37
NUT,ADJUST LOCK
16003-006
$7.34
38
SCREW,4X5
92009-1037
$3.56
39
CLAMP,E-TYPE
16008-010
$9.21
40
SEAT,THROTTLE VALVE
16007-1007
Unavailable
41
VALVE,THROTTLE,CA2.0
16025-1019
$84.54
42
SPRING,STARTER PLUG
16013-008
Unavailable
43
CAP,PLUNGER
16012-016
Unavailable
44
COLLAR
16073-014
$10.47
45
PLUNGER ASSY,STARTER
16016-1014
Unavailable
46
CAP,STARTER PLUNGER
16039-015
$6.88
47
SPRING,STATER LEVER
16013-009
$6.00
48
LEVER,STARTER
13168-1066
Unavailable
49
ARM,FLOAT
16055-004
Unavailable
