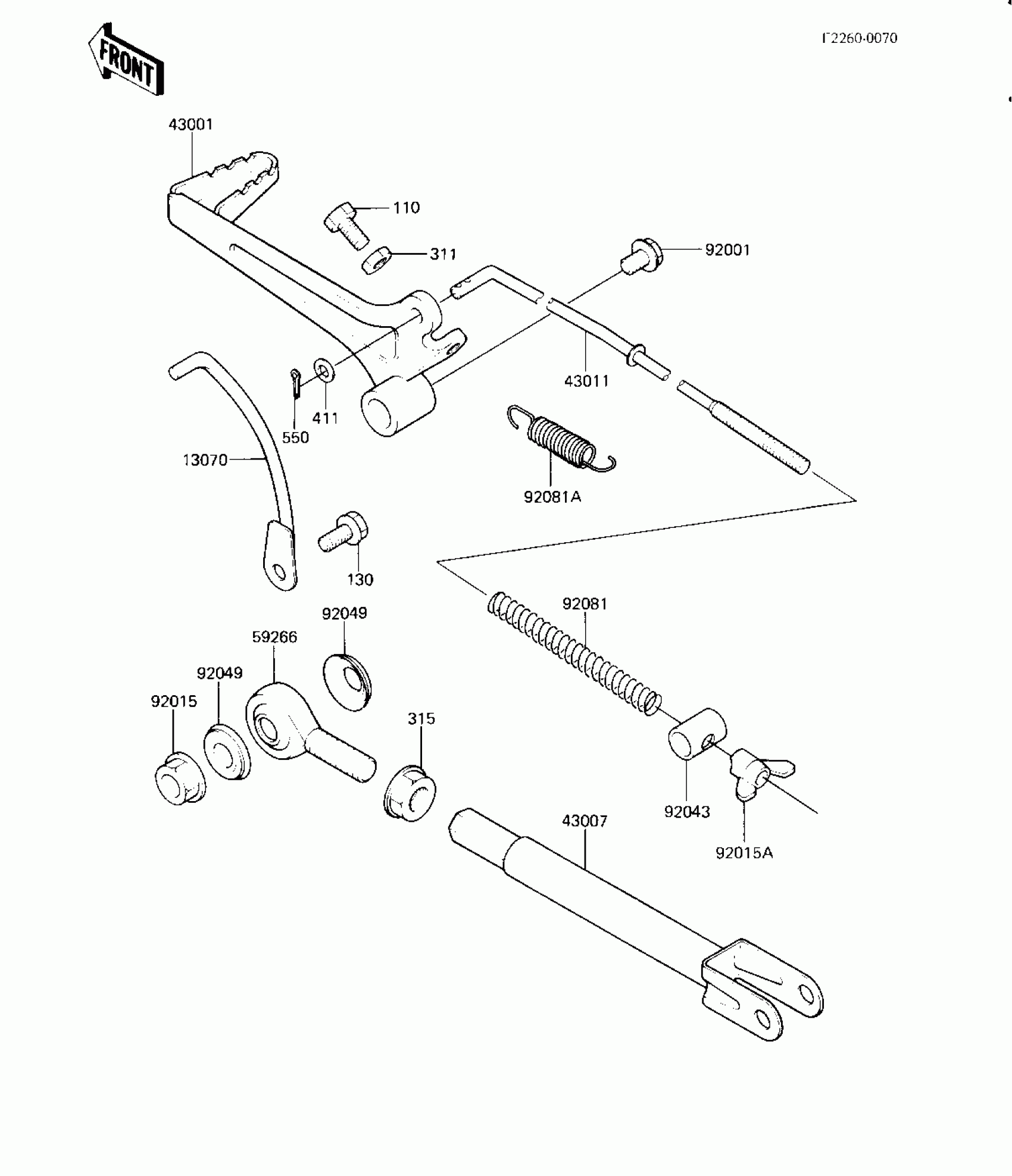

Kawasaki KX125 BRAKE PEDAL/TORQUE LINK (KX125-B1) Diagram

Description

Price

13070

GUIDE,BRAKE ROD

13070-1054

Unavailable

43001

LEVER-BRAKE,PEDAL

43001-1073

$141.51

43007

ROD-TORQUE

43007-1031

$50.10

43011

ROD-BRAKE

43011-1042

Unavailable

59266

JOINT,BALL

59266-1005

$88.01

92001

BOLT,FLANGED,6X10

92001-1034

$10.28

92015

NUT,FLANGED,10MM

92015-1415

$4.69

92015A

NUT,WING,6MM

92015-4004

$7.29

92043

PIN,BRAKE

92043-1024

$10.86

92049

OIL SEAL,BALL JOINT

92049-1072

Unavailable

92081

SPRING,BRAKE ROD

43012-001

$4.65

92081A

SPRING RETURN

92081-1059

Unavailable

110

BOLT-UPSET

112G0622

$3.48

130

BOLT-FLANGED,6X12

130G0612

$1.69

311

NUT 6MM

311B0600

$0.93

315

NUT-HEX-FINE,10MM

315G1000

$1.55

411

WASHER PLAIN 6MM

411B0600

$2.84

550

PIN COTTER 2.0X15

550D2015

$1.04
