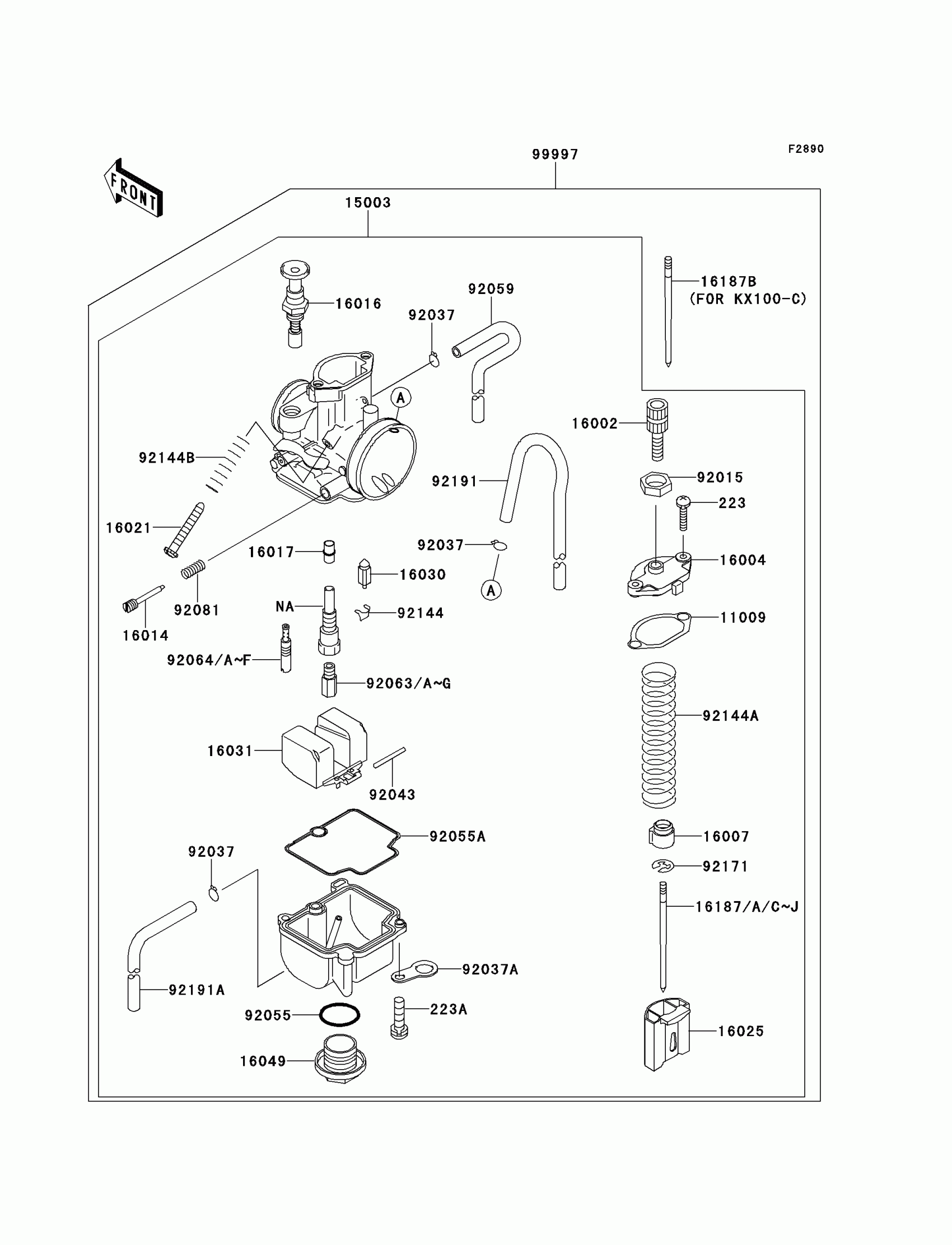

Kawasaki KX100 Optional Parts(Carburetor) Diagram
#
11009
GASKET,MIXING CHAMBER
11009-1759
$12.10
15003
CARBURETOR-ASSY
15003-1616
Unavailable
16002
ADJUSTER-CABLE
16002-1056
$23.96
16004
CAP-CHAMBER,MIXING
16004-1065
$79.55
16007
SEAT-SPRING,THROTTLE VALVE
16007-1155
$8.30
16014
SCREW-PILOT AIR
16014-1058
$20.77
16016
PLUNGER,STARTER
16016-1075
$40.69
16017
JET-NEEDLE
16017-1423
Unavailable
16021
SCREW-THROTTLE STOP
16021-1161
$18.72
16025
VALVE-THROTTLE,CA3.5
16025-1220
$139.83
16030
VALVE-FLOAT
16030-1064
$50.19
16031
FLOAT
16031-1065
$53.59
16049
COVER-MAIN JET
16049-1051
$33.28
16187
NEEDLE-JET,NADA 2.355
16187-1144
Unavailable
16187A
NEEDLE-JET,NADB 2.365
16187-1145
Unavailable
16187B
NEEDLE-JET,NADC 2.375
16187-1146
Unavailable
16187C
NEEDLE-JET,NADD 2.385
16187-1147
Unavailable
16187D
NEEDLE-JET,NADE 2.395
16187-1148
Unavailable
16187E
NEEDLE-JET,NAEA 2.355
16187-1149
Unavailable
16187F
NEEDLE-JET,NAEB 2.365
16187-1150
Unavailable
16187G
NEEDLE-JET,NAEC 2.375
16187-1151
Unavailable
16187H
NEEDLE-JET,NAEC 2.375
16187-1151
Unavailable
16187I
NEEDLE-JET,NAED 2.385
16187-1152
Unavailable
16187J
NEEDLE-JET,NAEE 2.395
16187-1153
Unavailable
92015
NUT,CABLE ADJUST LOCK
92015-1574
$6.57
92037
CLAMP,TUBE
92037-1396
$5.52
92037A
CLAMP,HOSE
92037-1969
$8.10
92043
PIN,FLOAT
92043-1207
$11.14
92055
RING-O,MAIN JET COVER
92055-1167
$9.51
92055A
RING-O,FLOAT CHAMBER
92055-1389
$9.91
92059
TUBE,4X7X360
92059-1941
$17.41
223
SCREW-PAN-WS-CROS
223C0414
$3.90
223A
SCREW-PAN-WS-CROS,4X16
223C0416
$4.12
92063
JET-MAIN,#130
92063-1336
$18.20
92063A
JET-MAIN,#132
92063-1337
$15.14
92063B
JET-MAIN,#135
92063-1338
$14.44
92063C
JET-MAIN,#138
92063-1359
$15.66
92063D
JET-MAIN,#140
92063-1360
$15.20
92063E
JET-MAIN,#142
92063-1361
$14.10
92063F
JET-MAIN,#145
92063-1362
$14.10
92063G
JET-MAIN,#148
92063-1363
$14.10
92064
JET-PILOT,#52
92064-1130
$19.05
92064A
JET-PILOT,#38
92064-1139
$17.03
92064B
JET-PILOT,#40
92064-1140
$17.03
92064C
JET-PILOT,#42
92064-1141
$17.03
92064D
JET-PILOT,#45
92064-1142
$17.03
92064E
JET-PILOT,#48
92064-1143
$17.03
92064F
JET-PILOT,#50
92064-1144
$17.85
92081
SPRING,ADJUST SCREW
92081-1555
$5.46
92144
SPRING,FLOAT VALVE
92144-1178
$7.88
92144A
SPRING,THROTTLE VALVE
92144-1566
$14.26
92144B
SPRING,THROTTLE STOP SCREW
92144-1782
$16.53
92171
CLAMP
92171-1323
$11.81
92191
TUBE,4X7X560
92191-1243
$10.39
92191A
TUBE,4X7X420
92191-1591
$16.24
99997
KIT-CARBURETOR
99997-1095
Unavailable
