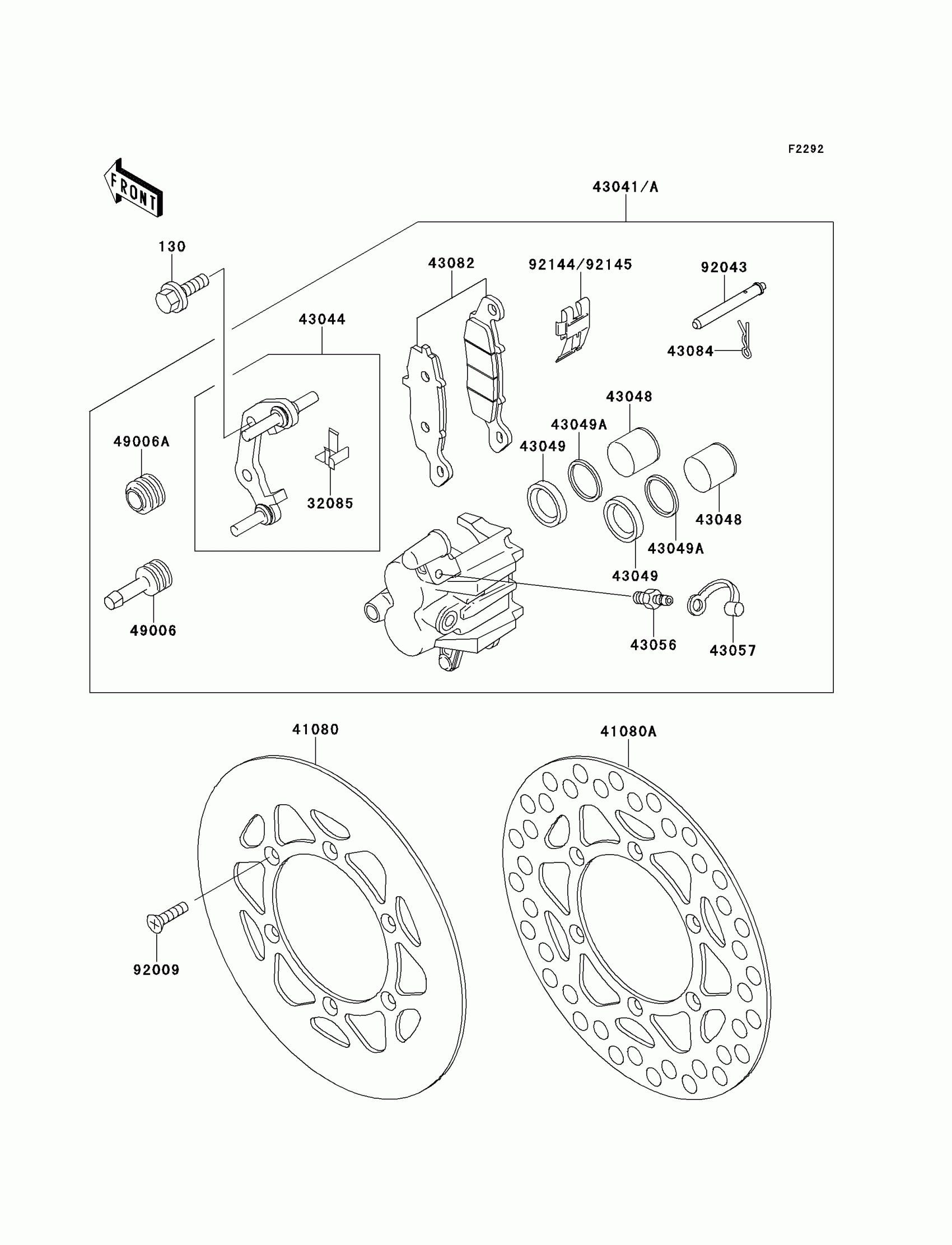

Kawasaki KX100 Front Brake Diagram

Description

Price

130

BOLT-FLANGED

130P0840

$1.44

32085

STOPPER

32085-1437

$13.04

41080

DISC,FR

41080-1330

Unavailable

41080A

DISC,FR

41080-1335

Unavailable

43041A

CALIPER-ASSY,FR,LH,SILVER

43041-1681-GN

$224.68

43044

HOLDER-COMP-CALIPER,FR

43044-1119

$118.28

43048

PISTON-CALIPER

43048-1083

$50.28

43049

PACKING,PISTON

43049-1058

$6.12

43049A

PACKING,PISTON

43049-1059

$8.51

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1196

$46.38

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1055

$7.27

92009

SCREW,6X10

92009-1375

$3.92

92043

PIN,PAD

92043-1356

$10.65

92145

SPRING,PAD

92145-1260

$15.40
